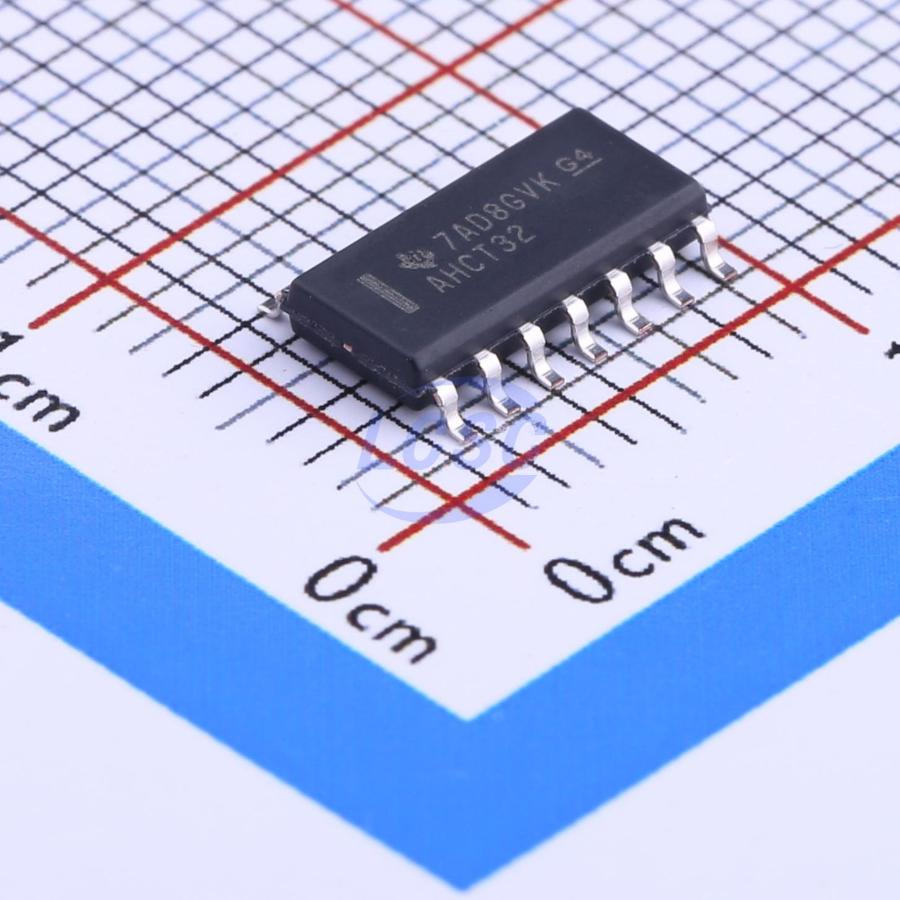

SN74AHCT32DR
TTL-compatible CMOS 4.5V~5.5V 7.9ns@5V,50pF 2uA SOIC-14 Gates and Inverters RoHS
SOIC-14ROHS3 CompliantActive
QUADRUPLE 2-INPUT POSITIVE-OR GATES
- Manufacturer
- TI
- Manufacturer part #
- SN74AHCT32DR
- Store part #
- C7490
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,677 in stock
#C7490
Stock & price checked 22 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹50.83 | ₹50.83 |
| 10+ | ₹39.97 | ₹399.70 |
| 30+ | ₹34.54 | ₹1,036.20 |
| 100+ | ₹29.77 | ₹2,977.00 |
| 500+ | ₹28.46 | ₹14,230.00 |
| 1,000+ | ₹27.81 | ₹27,810.00 |
1 × ₹50.83
₹50.83
excl. GST
₹59.98 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74AHCT32DR
₹50.83 for 1 + GST
Specifications
- Input Type
- TTL-compatible CMOS
- output type
- Push-pull
- Logic Family
- 74AHCT Series
- Voltage - Supply
- 4.5V~5.5V
- Output Logic Level - Low
- 440mV
- Propagation Delay
- 7.9ns@5V,50pF
- Input Logic Level - Low
- 800mV
- Input Logic Level - High
- 2V
- Operating Temperature
- -40℃~+85℃
- Output Logic Level - High
- 3.8V
- Quiescent Current(Iq)
- 2uA
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.264 g
Overview
The ’AHCT32 devices are quadruple 2-input positive-OR gates. These devices perform the Boolean function Y = (A AND B(overline))(overline) or Y = A OR B in positive logic.
Key features
- Inputs Are TTL-Voltage Compatible
- Latch-Up Performance Exceeds 250 mA Per JESD 17
- ESD Protection Exceeds JESD 22 − 2000-V Human-Body Model (A114-A) − 200-V Machine Model (A115-A)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74AHCT32D,118#C554653Nexperia · SO-14 | Nexperia | SO-14 | 65 | ₹29.94 · 65 in stock | View |
 | 74AHCT32S14-13#C842303DIODES · SO-14 | DIODES | SO-14 | 30 | ₹13.59 · 30 in stock | View |
 | SN74ACT32DR#C2870560TI · SOIC-14 | TI | SOIC-14 | 1,050 | ₹48.00 · 1,050 in stock | View |
 | SN74HCT32DR#C6781TI · SOIC-14 | TI | SOIC-14 | 3,060 | ₹71.48 · 3,060 in stock | View |
 | 74HCT32D,653#C5985Nexperia · SOIC-14 | Nexperia | SOIC-14 | 3,180 | ₹42.38 · 3,180 in stock | View |
