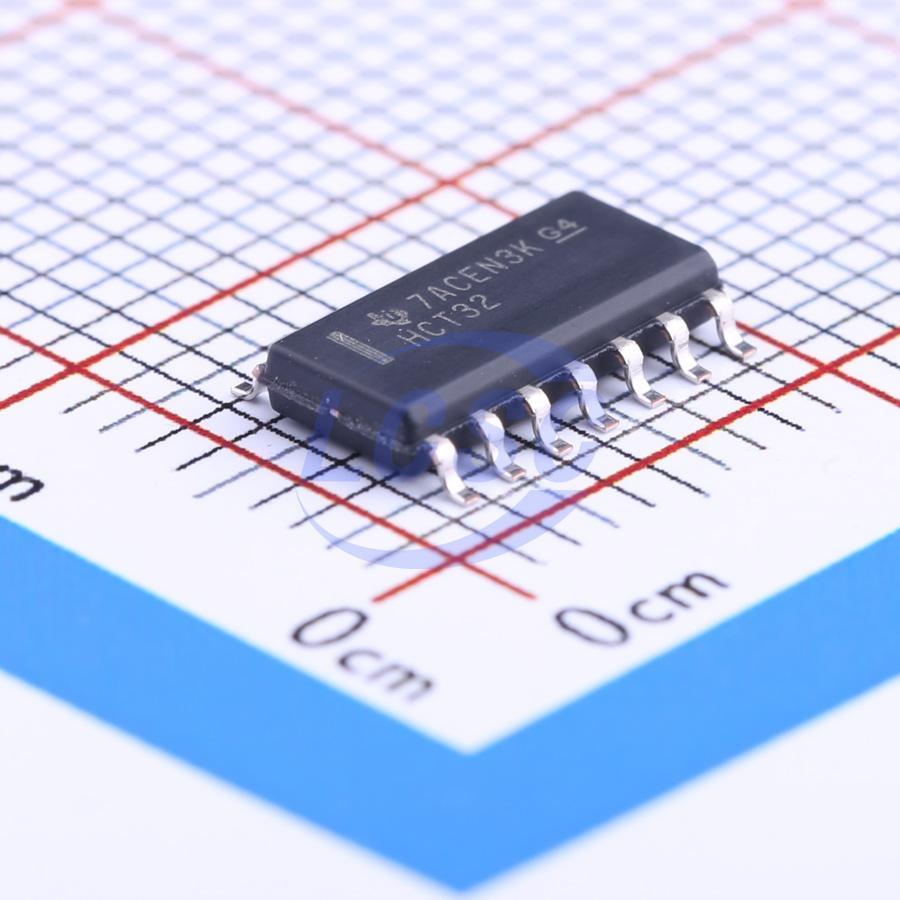

SN74HCT32DR
TTL-compatible CMOS 4.5V~5.5V 27ns@5.5V,50pF 2uA SOIC-14 Gates and Inverters RoHS
SOIC-14ROHS3 CompliantActive
QUADRUPLE 2-INPUT POSITIVE-OR GATES
- Manufacturer
- TI
- Manufacturer part #
- SN74HCT32DR
- Store part #
- C6781
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,210 in stock
#C6781
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹71.48 | ₹357.40 |
| 50+ | ₹56.90 | ₹2,845.00 |
| 150+ | ₹50.64 | ₹7,596.00 |
| 500+ | ₹42.85 | ₹21,425.00 |
| 2,500+ | ₹35.51 | ₹88,775.00 |
| 5,000+ | ₹33.43 | ₹1,67,150.00 |
5 × ₹71.48
₹357.40
excl. GST
₹421.73 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74HCT32DR
₹357.40 for 5 + GST
Specifications
- Input Type
- TTL-compatible CMOS
- Logic Family
- 74HCT Series
- Voltage - Supply
- 4.5V~5.5V
- Output Logic Level - Low
- 100mV;330mV
- Propagation Delay
- 27ns@5.5V,50pF
- Input Logic Level - Low
- 800mV
- Input Logic Level - High
- 2V
- Operating Temperature
- -40℃~+85℃
- Output Logic Level - High
- 4.4V;3.84V
- Quiescent Current(Iq)
- 2uA
- Current - Output High(IOH)
- 4mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 4mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.264 g
Overview
The 'HCT32 devices contain four independent 2- input OR gates. They perform the Boolean function Y = A(overline) • B(overline) or Y = A + B in positive logic.
Key features
- Operating Voltage Range of 4.5 V to 5.5 V
- Outputs Can Drive Up To 10 LSTTL Loads
- Low Power Consumption, 20 μA Max Icc
- Typical tₚd = 13 ns
- ±4 mA Output Drive at 5 V
- Low Input Current of 1 μA Max
- Inputs Are TTL- Voltage Compatible
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74HCT32D,653#C5985Nexperia · SOIC-14 | Nexperia | SOIC-14 | 3,245 | ₹42.38 · 3,245 in stock | View |
 | 74HCT32S14-13#C842446DIODES · SO-14 | DIODES | SO-14 | 2,330 | ₹17.34 · 2,330 in stock | View |
| MC74HCT32ADR2G#C904069onsemi · SOIC-14 | onsemi | SOIC-14 | 495 | ₹49.57 · 495 in stock | View | |
 | SN74ACT32DR#C2870560TI · SOIC-14 | TI | SOIC-14 | 1,050 | ₹48.00 · 1,050 in stock | View |
 | SN74AHCT32DR#C7490TI · SOIC-14 | TI | SOIC-14 | 2,689 | ₹50.83 · 2,689 in stock | View |
