NexperiaDatasheet (PDF)

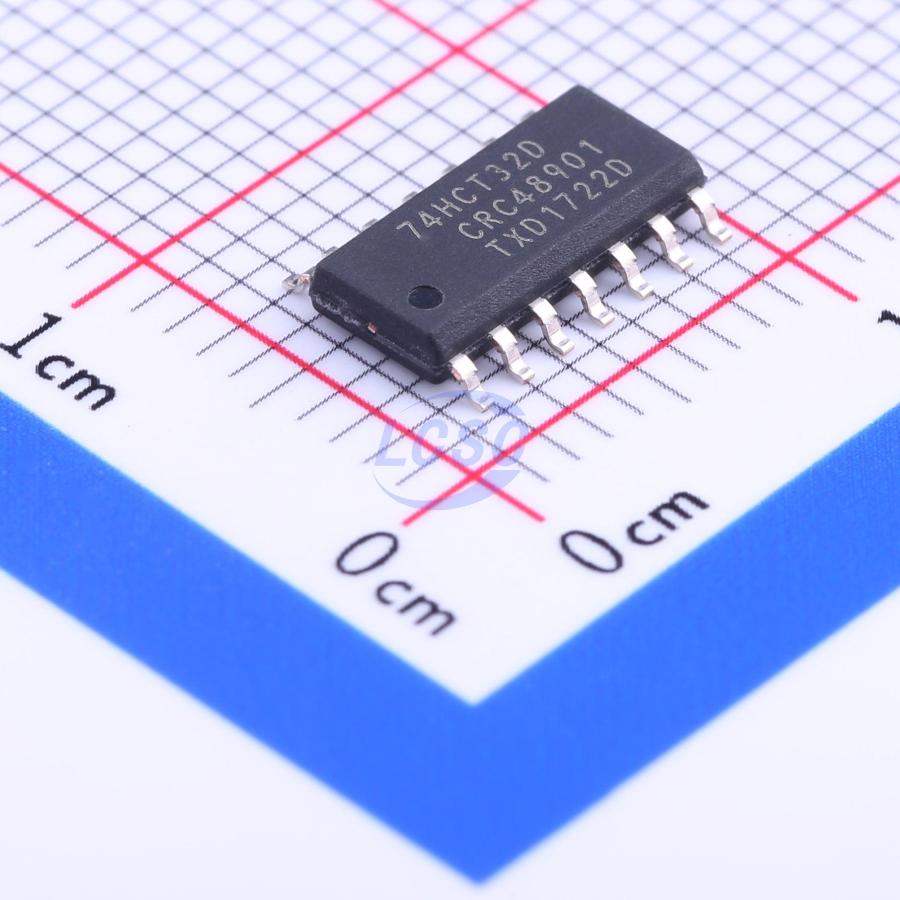

74HCT32D,653
TTL-compatible CMOS 4.5V~5.5V 24ns@4.5V,50pF 2uA SOIC-14 Gates and Inverters RoHS
SOIC-14ROHS3 CompliantActive
Quad 2-input OR gate
- Manufacturer
- Nexperia
- Manufacturer part #
- 74HCT32D,653
- Store part #
- C5985
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,245 in stock
#C5985
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹42.38 | ₹211.90 |
| 50+ | ₹33.05 | ₹1,652.50 |
| 150+ | ₹29.05 | ₹4,357.50 |
| 500+ | ₹24.07 | ₹12,035.00 |
| 2,500+ | ₹21.86 | ₹54,650.00 |
| 5,000+ | ₹20.52 | ₹1,02,600.00 |
5 × ₹42.38
₹211.90
excl. GST
₹250.04 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74HCT32D,653
₹211.90 for 5 + GST
Specifications
- Input Type
- TTL-compatible CMOS
- Logic Family
- 74HCT Series
- Voltage - Supply
- 4.5V~5.5V
- Output Logic Level - Low
- 400mV
- Propagation Delay
- 24ns@4.5V,50pF
- Features
- Overvoltage-tolerant input
- Input Logic Level - Low
- 800mV
- Input Logic Level - High
- 2V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 4.4V;3.7V
- Quiescent Current(Iq)
- 2uA
- Current - Output High(IOH)
- 4mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 4mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.254 g
Overview
The 74HC32; 74HCT32 is a quad 2-input OR gate. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
Key features
- Wide supply voltage range from 2.0 to 6.0 V
- CMOS low power dissipation
- High noise immunity
- Latch-up performance exceeds 100 mA per JESD 78 Class II Level B
- Complies with JEDEC standards:
- JESD8C (2.7 V to 3.6 V)
- JESD7A (2.0 V to 6.0 V)
- Input levels:
- For 74HC32: CMOS level
- For 74HCT32: TTL level
- Symmetrical output impedance
- Balanced propagation delays
- ESD protection:
- HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
- Multiple package options
- Specified from -40 °C to +85 °C and from -40 °C to +125 °C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74HCT32DR#C6781TI · SOIC-14 | TI | SOIC-14 | 3,210 | ₹71.48 · 3,210 in stock | View |
 | 74HCT32S14-13#C842446DIODES · SO-14 | DIODES | SO-14 | 2,330 | ₹17.34 · 2,330 in stock | View |
| MC74HCT32ADR2G#C904069onsemi · SOIC-14 | onsemi | SOIC-14 | 495 | ₹49.57 · 495 in stock | View | |
 | SN74AHCT32DR#C7490TI · SOIC-14 | TI | SOIC-14 | 2,689 | ₹50.83 · 2,689 in stock | View |
 | SN74ACT32DR#C2870560TI · SOIC-14 | TI | SOIC-14 | 1,050 | ₹48.00 · 1,050 in stock | View |
