TECH PUBLIC

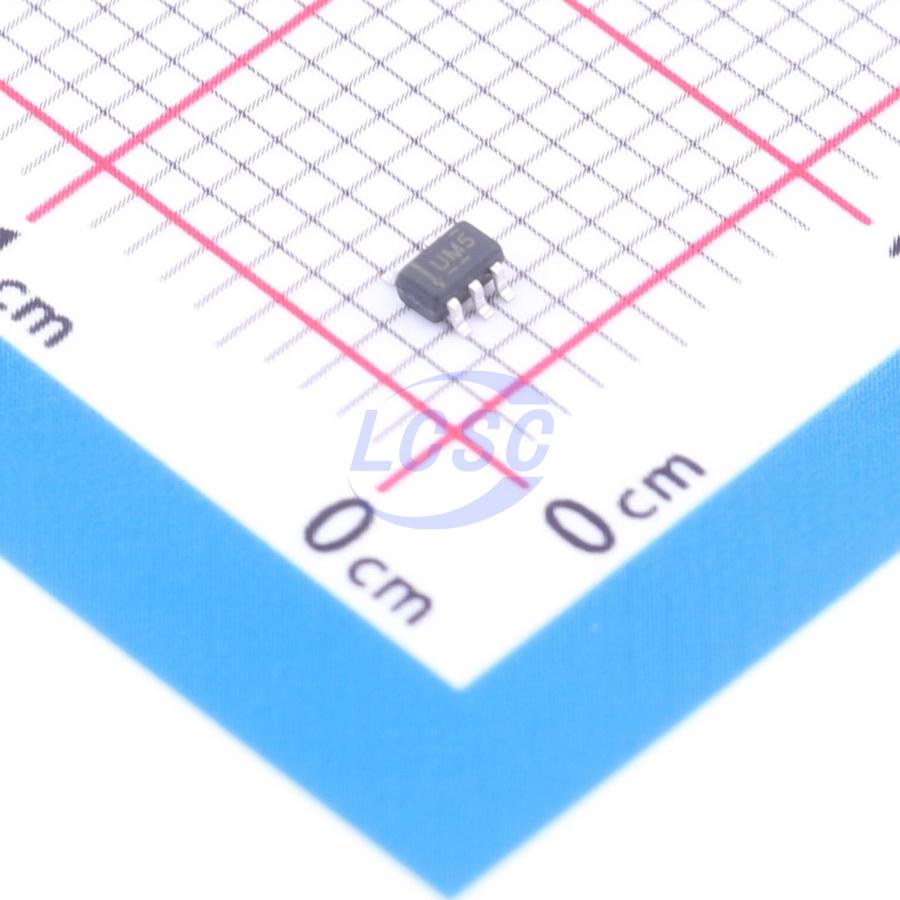

SN74AUC1G125DCKR-TP

0.9V~2.7V 1 1 5.5ns@2.7V,30pF SOT-353 Buffers, Drivers, Receivers, Transceivers

SOT-353RoHSActive

Manufacturer: TECH PUBLIC
Manufacturer part #: SN74AUC1G125DCKR-TP
Store part #: C54194994
Package / case: SOT-353
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,990 in stock

#C54194994

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
10+	₹9.50	₹95.00
100+	₹7.49	₹749.00
300+	₹6.50	₹1,950.00
3,000+	₹5.73	₹17,190.00
6,000+	₹5.13	₹30,780.00
9,000+	₹4.83	₹43,470.00

Quantity (min 10, multiples of 10)

10 × ₹9.50

₹95.00

excl. GST

₹112.10 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SN74AUC1G125DCKR-TP

₹95.00 for 10 + GST

Specifications

Current - Output High(IOH): 9mA
Voltage - Supply: 0.9V~2.7V
Series: 74AUC
Current - Output Low(IOL): 9mA
Output Type: Tri-State
Number of Bits per Element: 1
Channel Type: Unidirectional
Number of Elements: 1
Operating Temperature: -40℃~+125℃
Quiescent Supply Current: 10uA
Propagation Delay: 5.5ns@2.7V,30pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.03 g

Overview

SN74AUC1G125DCKR - TP is a single-line driver with 3-state output. When OE is high, the Y output is in a high-impedance state. When OE is low, the device passes non-inverting data from input A to output Y.

Applications

AV receivers
Portable audio docks
Blu-ray players and home theater systems
Embedded PCs
Personal Digital Assistants (PDAs)
Power supplies: Telecom/server AC/DC power supplies: single controller: analog and digital
Solid State Drives (SSDs): client and enterprise
Wireless headsets, keyboards, and mice

Key features

Wide supply voltage range: 0.9V ~ 2.7V
±8mA output driver: Vcc = 1.8V
I<sub>OFF</sub> supports partial power-down mode operation and reverse drive protection
Low quiescent current; I<sub>CC</sub> = 10μA (max)
ESD protection exceeds JESD 22 - 2000-V HBM (A114-A), 200-V MM (A115-A), 1000-V CDM (C101)
