TECH PUBLICDatasheet (PDF)

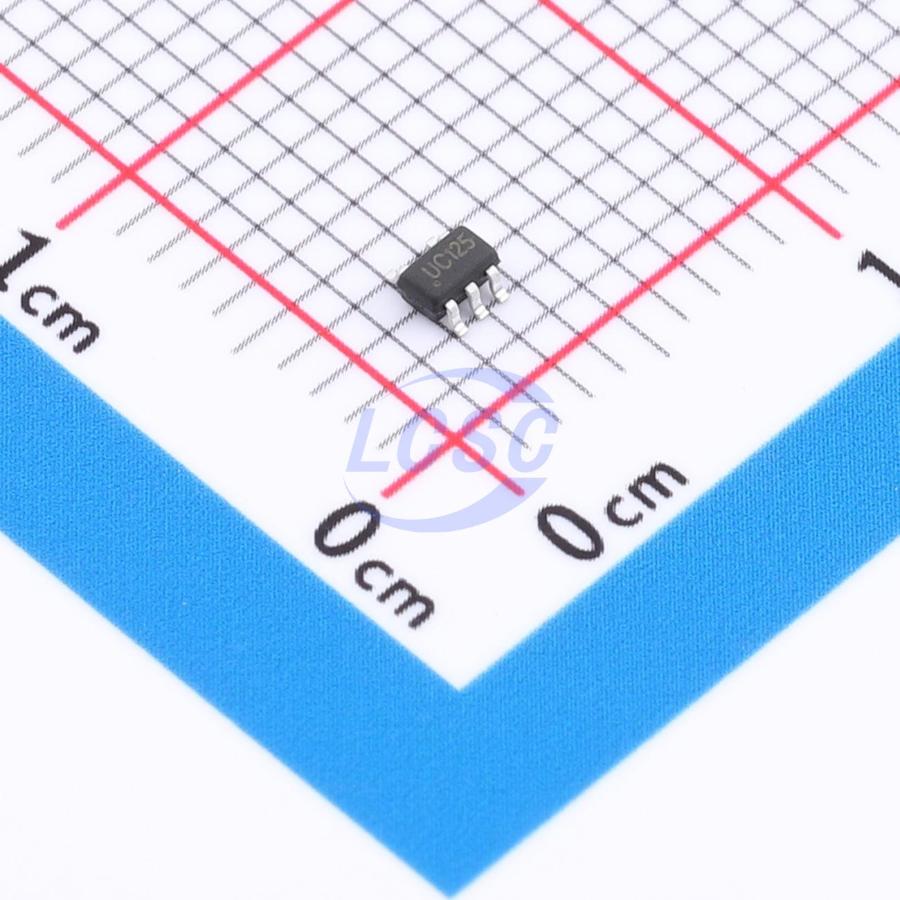

TP74AUC1G125C5
0.9V~2.7V 1 1 5ns@2.5V,15pF SOT-353 Buffers, Drivers, Receivers, Transceivers
SOT-353RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TP74AUC1G125C5
- Store part #
- C54195051
- Package / case
- SOT-353
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,000 in stock
#C54195051
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.32 | ₹56.60 |
| 50+ | ₹8.93 | ₹446.50 |
| 150+ | ₹7.73 | ₹1,159.50 |
| 500+ | ₹6.83 | ₹3,415.00 |
| 3,000+ | ₹6.11 | ₹18,330.00 |
| 6,000+ | ₹5.76 | ₹34,560.00 |
5 × ₹11.32
₹56.60
excl. GST
₹66.79 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP74AUC1G125C5
₹56.60 for 5 + GST
Specifications
- Current - Output High(IOH)
- 9mA
- Voltage - Supply
- 0.9V~2.7V
- Series
- 74AUC
- Current - Output Low(IOL)
- 9mA
- Output Type
- Tri-State
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 10uA
- Propagation Delay
- 5ns@2.5V,15pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.017 g
Overview
The TP74AUC1G125 is a single bus buffer gate with 3-state output. When OE is HIGH, the Y output is in a high-impedance state. When OE is LOW, the device passes non-inverted data from the A input to the Y output.
Applications
- AV receivers
- Portable audio docks
- Blu-ray players and home theaters
- Embedded PCs
- Personal Digital Assistants (PDAs)
- Telecom/server AC/DC power supplies: single controller: analog and digital
- Solid State Drives (SSDs): client and enterprise
- Wireless headsets, keyboards, and mice
Key features
- Wide supply voltage range: 0.9V ~ 2.7V
- ±8mA output drive: Vcc = 1.8V
- IOFF supports partial power-down mode operation and reverse drive protection
- Low quiescent current; ICC = 10μA (max)
- ESD protection exceeds JESD 22
- 2000V Human Body Model (A114-A)
- 200V Machine Model (A115-A)
- 1000V Charged Device Model (C101)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74AUC1G125DCKR-TP#C54194994TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,990 | ₹9.50 · 2,990 in stock | View |
