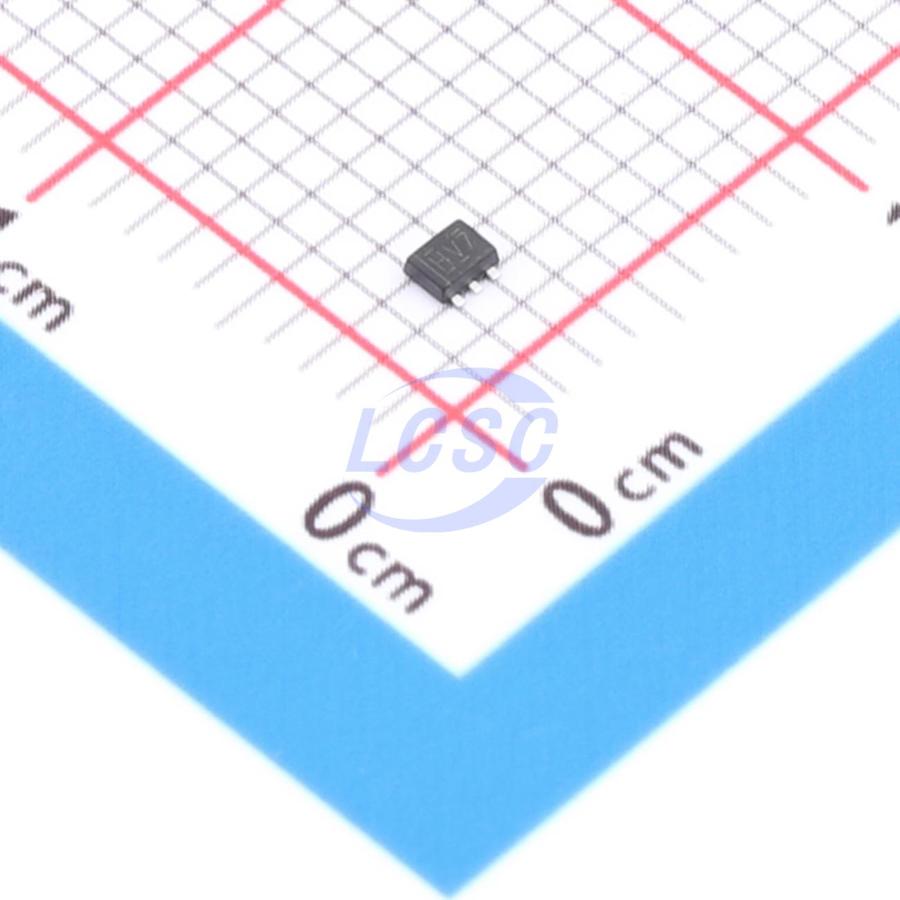

SN74AUP1G07DRLR-TP
0.8V~3.6V 1 1 2.2ns@3.3V,5pF SOT-553 Buffers, Drivers, Receivers, Transceivers RoHS
SOT-553ROHS CompliantActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SN74AUP1G07DRLR-TP
- Store part #
- C49333173
- Package / case
- SOT-553
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,890 in stock
#C49333173
Stock & price checked 19 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹9.78 | ₹48.90 |
| 50+ | ₹8.59 | ₹429.50 |
| 150+ | ₹7.99 | ₹1,198.50 |
| 500+ | ₹7.54 | ₹3,770.00 |
| 2,500+ | ₹7.18 | ₹17,950.00 |
| 4,000+ | ₹7.01 | ₹28,040.00 |
5 × ₹9.78
₹48.90
excl. GST
₹57.70 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SN74AUP1G07DRLR-TP
₹48.90 for 5 + GST
Specifications
- Function
- Power-off isolation
- Series
- 74AUP
- Voltage - Supply
- 0.8V~3.6V
- Current - Output Low(IOL)
- 4mA
- Output Type
- Open-drain
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Operating Temperature
- -40℃~+125℃
- Number of Elements
- 1
- Quiescent Supply Current
- 500nA
- Propagation Delay
- 2.2ns@3.3V,5pF
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.022 g
Overview
SN74AUP1G07 is a single non-inverting buffer with open-drain output. The open-drain output can be connected with other open-drain outputs to implement active-low wired-OR or active-high wired-AND functions.
Applications
- Audio/video receivers
- Embedded PCs
- Personal digital assistants
- Solid-state drives
- Wireless headsets, keyboards, and mice
Key features
- Wide supply voltage range: 0.8V to 3.6V
- Inputs accept voltages up to 3.6V
- I<sub>OFF</sub> supports partial power-down mode
- Low quiescent current: I<sub>CC</sub> = 0.5μA (maximum)
- ESD protection exceeds JESD 22: HBM 2000V (A114-A), MM 200V (A115-A), CDM 1000V (C101)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TP74AUP1G07X5#C49333195TECH PUBLIC · SOT-553 | TECH PUBLIC | SOT-553 | 475 | ₹16.14 · 475 in stock | View |
 | SN74AUP1G17DRLR-TP#C49374609TECH PUBLIC · SOT-553 | TECH PUBLIC | SOT-553 | 3,890 | ₹10.93 · 3,890 in stock | View |
 | SN74AUP1G125DRLR-TP#C49230998TECH PUBLIC · SOT553 | TECH PUBLIC | SOT553 | 245 | ₹16.33 · 245 in stock | View |
 | TP74AUP1G125X5#C49231006TECH PUBLIC · SOT553 | TECH PUBLIC | SOT553 | 250 | ₹19.30 · 250 in stock | View |
