TECH PUBLIC

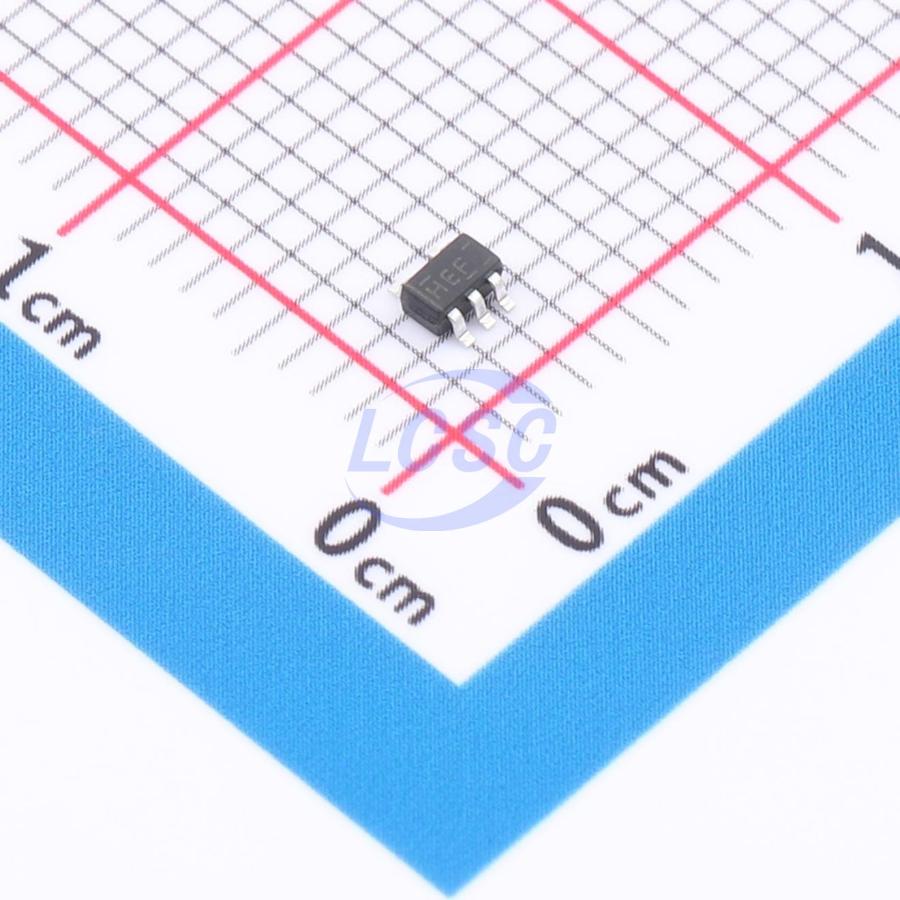

SN74AUP1G08DCKR-TP

800mV~3.6V 4.7ns@3.3V,30pF 500nA SOT-353 Gates and Inverters

SOT-353RoHSActive

2-INPUT AND GATE

Manufacturer: TECH PUBLIC
Manufacturer part #: SN74AUP1G08DCKR-TP
Store part #: C48995543
Package / case: SOT-353
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,780 in stock

#C48995543

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
10+	₹5.25	₹52.50
100+	₹4.15	₹415.00
300+	₹3.60	₹1,080.00
3,000+	₹3.19	₹9,570.00
6,000+	₹2.86	₹17,160.00
9,000+	₹2.69	₹24,210.00

Quantity (min 10, multiples of 10)

10 × ₹5.25

₹52.50

excl. GST

₹61.95 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SN74AUP1G08DCKR-TP

₹52.50 for 10 + GST

Specifications

Logic Family: 74AUP
Voltage - Supply: 800mV~3.6V
Output Logic Level - Low: 100mV;310mV;440mV
Propagation Delay: 4.7ns@3.3V,30pF
Input Logic Level - Low: 0V;700mV;900mV
Input Logic Level - High: 1.6V;2V
Features: Local shutdown mode
Operating Temperature: -40℃~+125℃
Output Logic Level - High: 1.11V;1.32V;2.05V;1.9V;2.72V;2.6V
Quiescent Current(Iq): 500nA
Current - Output High(IOH): 4mA
Number of Channels: 1;2
Current - Output Low(IOL): 4mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.034 g

Overview

The SN74AUP1G08 is a 2 - input AND gate which, provides the Function Y = A • B(overline) or Y(overline) = A + B in positive logic. This device ensures a very low static and dynamic power consumption across the entire VCC range from 0.8V to 3.6V.

Applications

AV Receiver
Audio Dock: Portable
Blu - ray Player and Home Theater
Embedded PC
Personal Digital Assistant(PDA)
Power: Telecom/Server AC/DC Supply: Single Controller: Analog and Digital
Solid State Drive(SSD): Client and Enterprise
Wireless Headset, Keyboard, and Mouse

Key features

Wide supply voltage range from 0.8V to 3.6V
Inputs accept voltages up to 3.6V
I(OFF) supports partial - power - down mode
Low static power consumption; I(CC) = 0.5μA (Max.)
ESD Protection Exceeds JESD 22 - 2000 - V Human - Body Model (A114 - A)
200 - V Machine Model (A115 - A)
1000 - V Charged - Device Model (C101)
