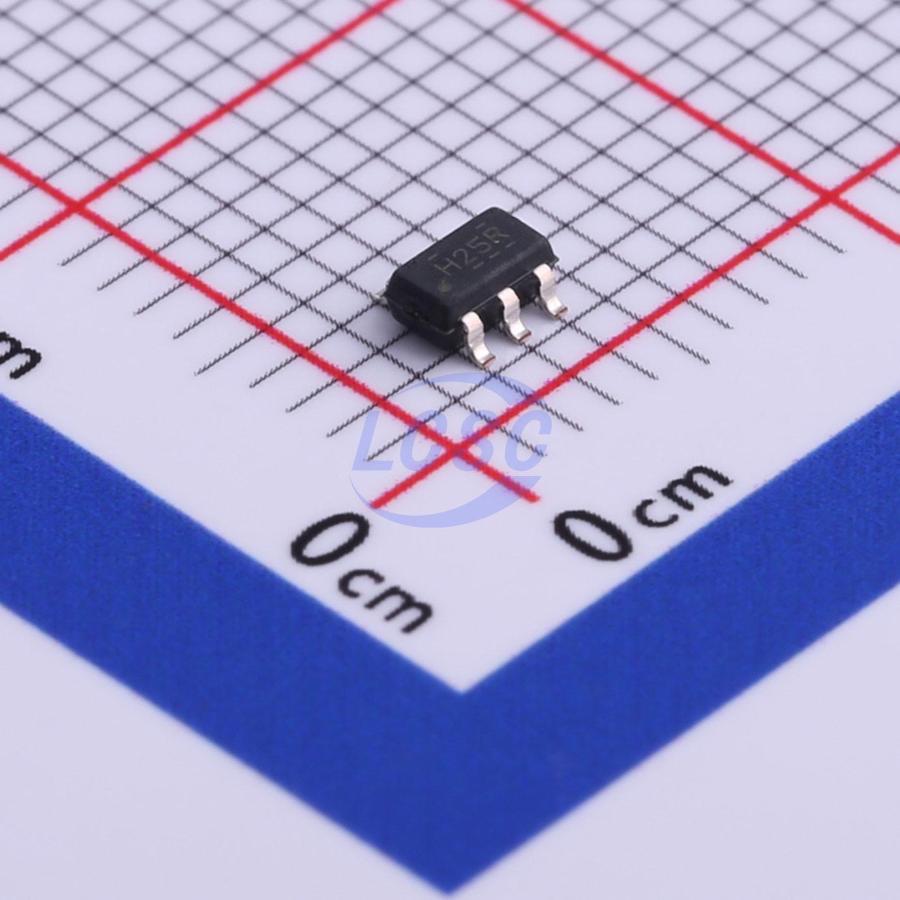

SN74AUP1G125DBVR

Schmitt trigger 0.8V~3.6V 1 1 2.4ns@3.3V,5pF SOT-23-5 Buffers, Drivers, Receivers, Transceivers RoHS

SOT-23-5ROHS3 CompliantActive

Low-Power Single Bus Buffer Gate With 3-State Output

Manufacturer: TI
Manufacturer part #: SN74AUP1G125DBVR
Store part #: C507224
Package / case: SOT-23-5
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

7,835 in stock

#C507224

Stock & price checked 26 h ago

Quantity	Unit price	Pack price
5+	₹41.79	₹208.95
50+	₹32.81	₹1,640.50
150+	₹28.42	₹4,263.00
500+	₹24.52	₹12,260.00
3,000+	₹23.44	₹70,320.00
6,000+	₹22.80	₹1,36,800.00

Quantity (min 5, multiples of 5)

5 × ₹41.79

₹208.95

excl. GST

₹246.56 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SN74AUP1G125DBVR

₹208.95 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Input type: Schmitt trigger
Voltage - Supply: 0.8V~3.6V
Output Type: Tri-State
Operating Temperature: -40℃~+85℃
Quiescent Supply Current: 900nA
Function: Power-off isolation;Output enable
Current - Output High(IOH): 4mA
Series: 74AUP
Current - Output Low(IOL): 4mA
Number of Bits per Element: 1
Channel Type: Unidirectional
Number of Elements: 1
Propagation Delay: 2.4ns@3.3V,5pF

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.026 g

Overview

The SN74AUP1G125 bus buffer gate is a single line driver with a 3-state output. The output is disabled when the output-enable (OE(overline)) input is high. This device has the input-disable feature, which allows floating input signals.

Applications

Audio Dock: Portable
BluRay Players and Home Theaters
Personal Digital Assistant (PDA)
Power: Telecom/Server
AC/DC Supply: Single
Controller: Analog and Digital
Solid-State Drive (SSD): Client and Enterprise
TV: LCD/Digital and High-Definition (HDTV)
Tablet: Enterprise
Wireless Headsets, Keyboards, and Mice

Key features

Available in the Texas Instruments NanoStar Package
Low Static-Power Consumption (Icc = 0.9 μA Maximum)
Low Dynamic-Power Consumption (ΔCpd = 4 pF Typical at 3.3 V)
Low Input Capacitance (ΔC1 = 1.5 pF Typical)
Low Noise – Overshoot and Undershoot < 10% of Vcc
Input-Disable Feature Allows Floating Input Conditions
Supports Partial-Power-Down Mode Operation
Input Hysteresis Allows Slow Input Transition and Better Switching Noise Immunity at Input
Wide Operating Vcc Range of 0.8 V to 3.6 V
3.6-V I/O Tolerant to Support Mixed-Mode Signal Operation
tpd = 4.6 ns Maximum at 3.3 V
