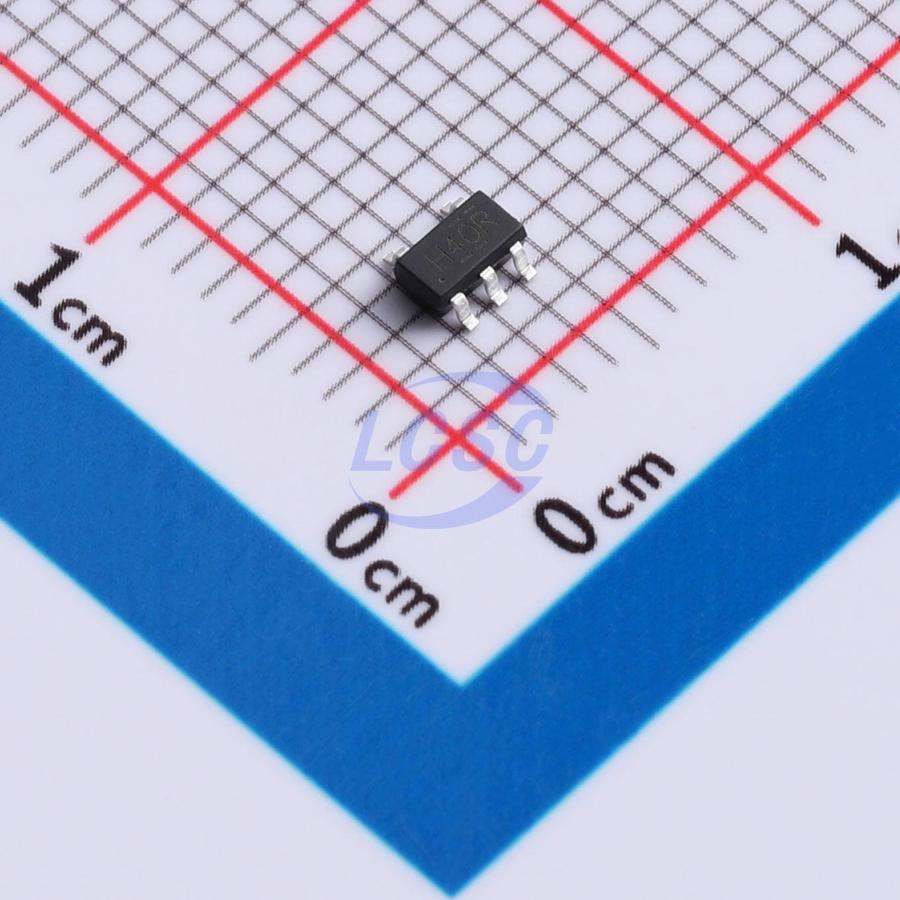

SN74AUP1G240DBVR-TP
Schmitt trigger 0.8V~3.6V 1 1 2.3ns@3.3V,5pF SOT-23-5 Buffers, Drivers, Receivers, Transceivers RoHS
SOT-23-5ROHS CompliantActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SN74AUP1G240DBVR-TP
- Store part #
- C49333180
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,990 in stock
#C49333180
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.84 | ₹98.40 |
| 100+ | ₹7.78 | ₹778.00 |
| 300+ | ₹6.75 | ₹2,025.00 |
| 3,000+ | ₹5.98 | ₹17,940.00 |
| 6,000+ | ₹5.36 | ₹32,160.00 |
| 9,000+ | ₹5.05 | ₹45,450.00 |
10 × ₹9.84
₹98.40
excl. GST
₹116.11 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74AUP1G240DBVR-TP
₹98.40 for 10 + GST
Specifications
- Input type
- Schmitt trigger
- Voltage - Supply
- 0.8V~3.6V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 500nA
- Function
- Power-off isolation;Output enable
- Current - Output High(IOH)
- 4mA
- Series
- 74AUP
- Current - Output Low(IOL)
- 4mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Propagation Delay
- 2.3ns@3.3V,5pF
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.1 g
Overview
The SN74AUP1G240 is a single-bit inverting buffer/line driver with 3-state outputs. The device features an output enable function. When the output enable is high, the output enters a high-impedance off state. All inputs incorporate Schmitt-trigger action, allowing the circuit to tolerate slow input rise and fall times.
Applications
- AV receivers
- Embedded PCs
- Personal digital assistants
Key features
- Wide supply voltage range: 0.8V ~ 3.6V
- Input accepts voltages up to 3.6V
- I<sub>OFF</sub> supports partial power-down mode
- Low quiescent current: I<sub>CC</sub> = 0.5μA (max)
- ESD protection exceeds JESD 22 standard
- Human Body Model: 2000V
- Machine Model: 200V
- Charged Device Model: 1000V
