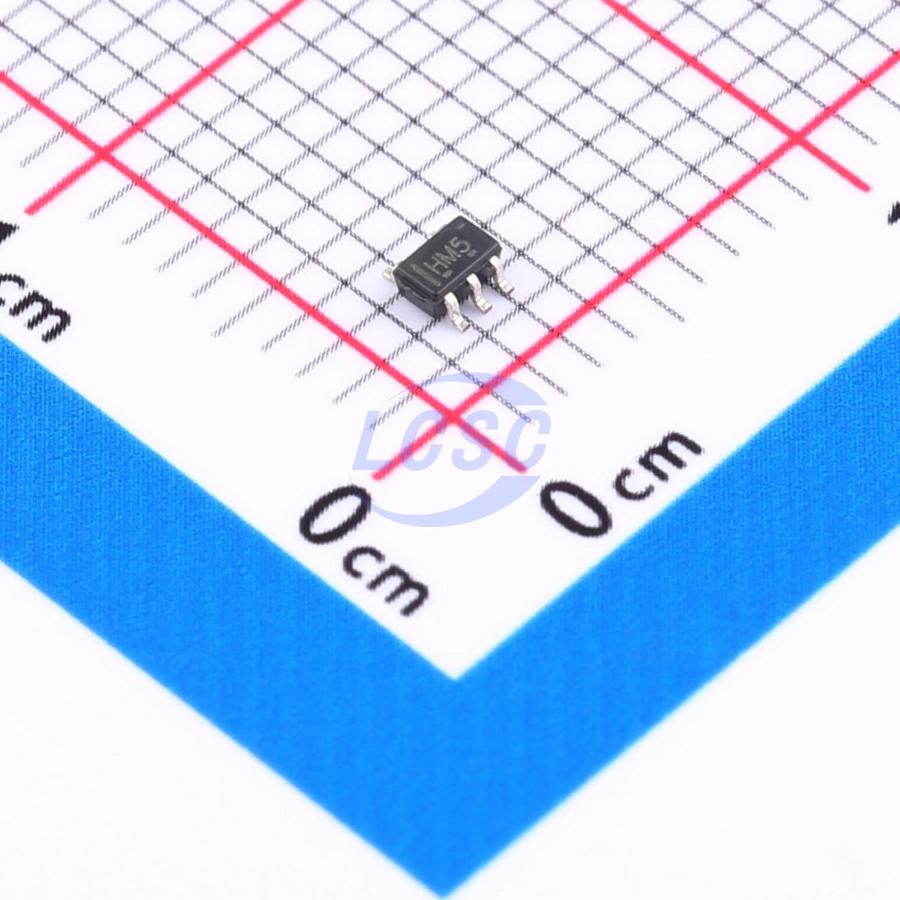

SN74AUP1G125DCKR

The SN74AUP1G125 bus buffer gate is a single line driver with a 3- state output. The output is disabled when the output- enable (OE) input is high. This device has the input- disable feature, which allows floating input signals. To ensure the high- impedance state during power up or power down, OE must be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current- sinking capability of the driver.

Applications

• Audio Dock: Portable
• BluRay Players and Home Theaters
• Personal Digital Assistant (PDA)
• Power: Telecom/Server AC/DC Supply: Single Controller: Analog and Digital
• Solid - State Drive (SSD): Client and Enterprise
• TV: LCD/Digital and High - Definition (HDTV)
• Tablet: Enterprise
• Wireless Headsets, Keyboards, and Mice

Key features

• Available in the Texas Instruments NanoStar Package
• Low Static - Power Consumption (ICC = 0.9 μA Maximum)
• Low Dynamic - Power Consumption (Cpd = 4 pF Typical at 3.3 V)
• Low Input Capacitance (CI = 1.5 pF Typical)
• Low Noise - Overshoot and Undershoot < 10% of VCC
• Input - Disable Feature Allows Floating Input Conditions
• Ioff Supports Partial - Power - Down Mode Operation
• Input Hysteresis Allows Slow Input Transition and Better Switching Noise Immunity at Input
• Wide Operating VCC Range of 0.8 V to 3.6 V
• 3.6 - V I/O Tolerant to Support Mixed - Mode Signal Operation
• tpd = 4.6 ns Maximum at 3.3 V
