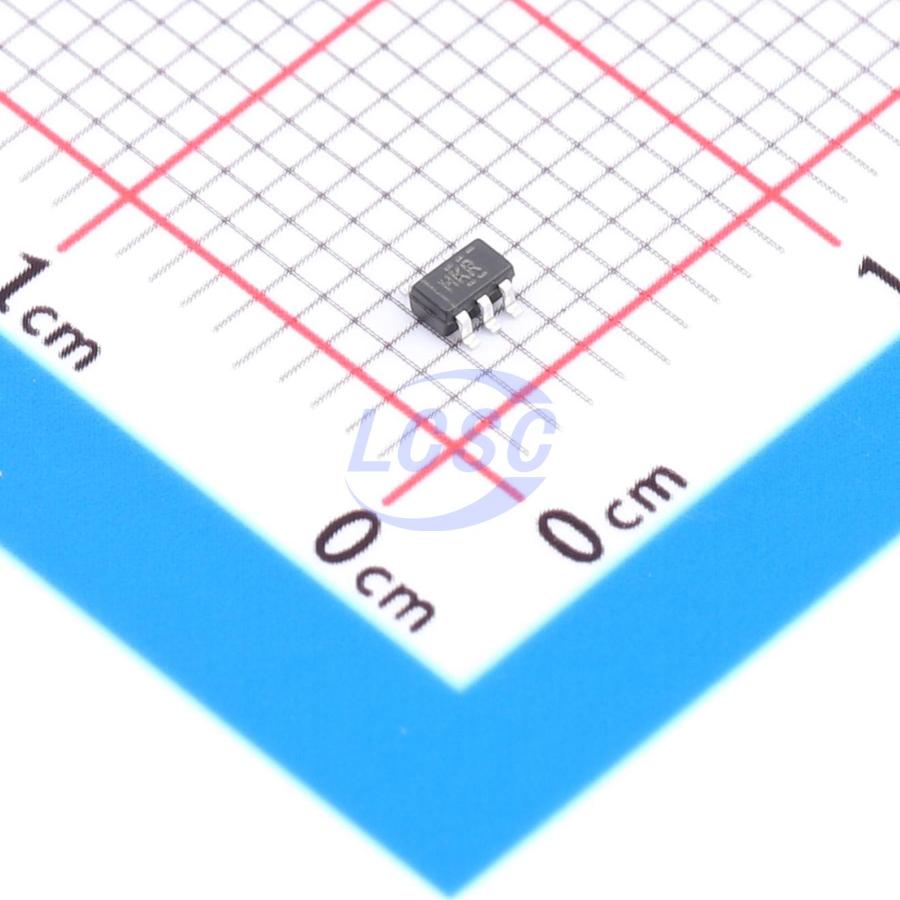

SN74AUP1G240DCKR-TP
Schmitt trigger 0.8V~3.6V 1 1 4.6ns@3.3V,30pF SOT-353 Buffers, Drivers, Receivers, Transceivers RoHS
SOT-353ROHS CompliantActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SN74AUP1G240DCKR-TP
- Store part #
- C51939605
- Package / case
- SOT-353
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,820 in stock
#C51939605
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.44 | ₹74.40 |
| 100+ | ₹5.85 | ₹585.00 |
| 300+ | ₹5.05 | ₹1,515.00 |
| 3,000+ | ₹4.46 | ₹13,380.00 |
| 6,000+ | ₹3.98 | ₹23,880.00 |
| 9,000+ | ₹3.74 | ₹33,660.00 |
10 × ₹7.44
₹74.40
excl. GST
₹87.79 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74AUP1G240DCKR-TP
₹74.40 for 10 + GST
Specifications
- Input type
- Schmitt trigger
- Voltage - Supply
- 0.8V~3.6V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 500nA
- Function
- Power-off isolation;Output enable
- Current - Output High(IOH)
- 4mA
- Series
- 74AUP
- Current - Output Low(IOL)
- 4mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Propagation Delay
- 4.6ns@3.3V,30pF
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 1 g
Overview
SN74AUP1G240DCKR-TP is a single-bit inverting buffer/line driver with 3-state outputs. The device features an output enable (OE) function. When OE is high, the output enters a high-impedance off state. Schmitt-trigger action on all inputs allows the circuit to tolerate slower input rise and fall times.
Applications
- AV receivers
- Audio docking stations
- Blu-ray players & home theater systems
- Embedded PCs
- Personal digital assistants
- Telecom/server AC/DC power supplies
- Solid-state drives
- Wireless headsets, keyboards & mice
Key features
- Wide supply voltage range: 0.8V to 3.6V
- Inputs accept voltages up to 3.6V
- I_OFF supports partial power-down mode
- Low quiescent current; I_CC = 0.5μA (maximum)
- ESD protection exceeds JESD 22
- 2000V Human Body Model (A114-A)
- 200V Machine Model (A115-A)
- 1000V Charged Device Model (C101)
