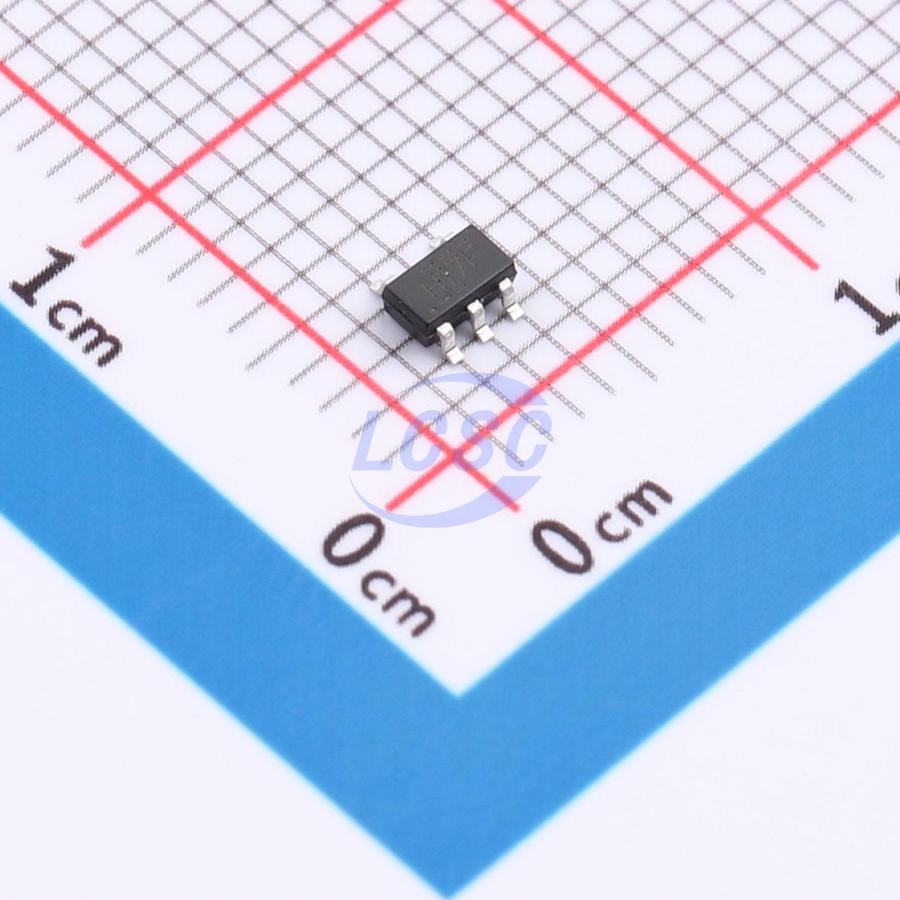

SN74AUP1G17DBVR-TP
0.8V~3.6V 1 1 4.8ns@3.3V,30pF SOT-23-5 Buffers, Drivers, Receivers, Transceivers
SOT-23-5RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SN74AUP1G17DBVR-TP
- Store part #
- C49333179
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,110 in stock
#C49333179
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.03 | ₹60.30 |
| 100+ | ₹4.78 | ₹478.00 |
| 300+ | ₹4.14 | ₹1,242.00 |
| 3,000+ | ₹3.66 | ₹10,980.00 |
| 6,000+ | ₹3.28 | ₹19,680.00 |
| 9,000+ | ₹3.10 | ₹27,900.00 |
10 × ₹6.03
₹60.30
excl. GST
₹71.15 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74AUP1G17DBVR-TP
₹60.30 for 10 + GST
Specifications
- Function
- Power-off isolation
- Series
- 74AUP
- Voltage - Supply
- 0.8V~3.6V
- Current - Output Low(IOL)
- 4mA
- Output Type
- Open-drain
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Operating Temperature
- -40℃~+125℃
- Number of Elements
- 1
- Quiescent Supply Current
- 500nA
- Propagation Delay
- 4.8ns@3.3V,30pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.036 g
Overview
SN74AUP1G17 is a single non-inverting buffer with open-drain output. The device features an open-drain output structure that can be connected with other open-drain outputs to implement active-low wired-OR and active-high wired-AND functions.
Applications
- Audio/video receivers
- Audio docking stations
- Blu-ray players and home theater systems
- Embedded PCs
- Personal digital assistants
Key features
- Wide supply voltage range: 0.8V ~ 3.6V
- Inputs tolerate up to 3.6V
- I<sub>OFF</sub> supports partial power-down mode
- Low quiescent current; I<sub>CC</sub> = 0.5μA (max)
- ESD protection exceeds JESD 22
- Human Body Model: 2000V (A114-A)
- Machine Model: 200V (A115-A)
- Charged Device Model: 1000V (C101)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74AUP1G17GV-TP#C52098005TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 6,000 | ₹5.90 · 6,000 in stock | View |
 | TP74AUP1G17S5#C49333201TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 3,000 | ₹7.10 · 3,000 in stock | View |
 | TP74AUP1G07S5#C49333194TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,970 | ₹8.20 · 2,970 in stock | View |
 | SN74AUP1G07DBVR-TP#C49333172TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 4,740 | ₹8.23 · 4,740 in stock | View |
 | SN74AUP1G125DBVR-TP#C49333175TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,640 | ₹6.56 · 2,640 in stock | View |
