TECH PUBLICDatasheet (PDF)

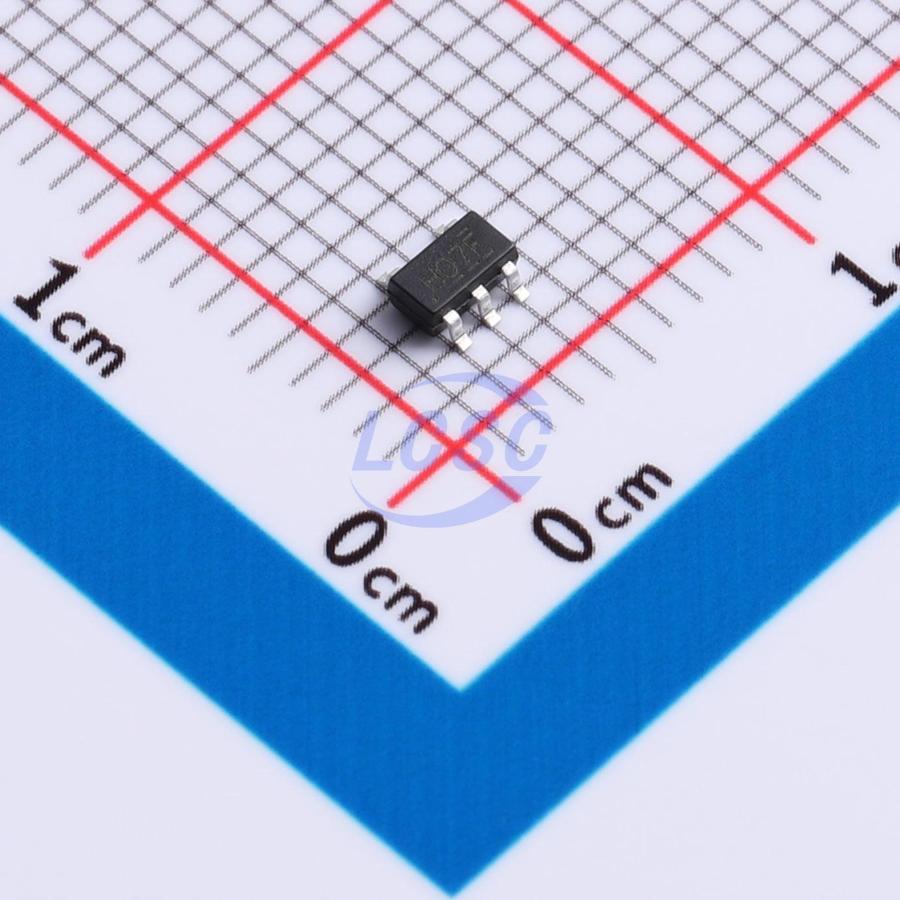

TP74AUP1G07S5
0.8V~3.6V 1 1 2.2ns@3.3V,5pF SOT-23-5 Buffers, Drivers, Receivers, Transceivers RoHS
SOT-23-5ROHS CompliantActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TP74AUP1G07S5
- Store part #
- C49333194
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,970 in stock
#C49333194
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.20 | ₹82.00 |
| 100+ | ₹6.48 | ₹648.00 |
| 300+ | ₹5.62 | ₹1,686.00 |
| 3,000+ | ₹4.99 | ₹14,970.00 |
| 6,000+ | ₹4.47 | ₹26,820.00 |
| 9,000+ | ₹4.21 | ₹37,890.00 |
10 × ₹8.20
₹82.00
excl. GST
₹96.76 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP74AUP1G07S5
₹82.00 for 10 + GST
Specifications
- Function
- Power-off isolation
- Series
- 74AUP
- Voltage - Supply
- 0.8V~3.6V
- Current - Output Low(IOL)
- 4mA
- Output Type
- Open-drain
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Operating Temperature
- -40℃~+125℃
- Number of Elements
- 1
- Quiescent Supply Current
- 500nA
- Propagation Delay
- 2.2ns@3.3V,5pF
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.1 g
Overview
TP74AUP1G07 provides a single non-inverting buffer with open-drain output. The device features an open-drain output structure that can be connected with other open-drain outputs to implement active-low wired-OR and active-high wired-AND functions.
Applications
- Audio/video receivers
- Embedded PCs
- Personal digital assistants
- Solid-state drives
- Wireless headsets, keyboards, and mice
Key features
- Wide supply voltage range: 0.8V to 3.6V
- Inputs accept voltages up to 3.6V
- I<sub>OFF</sub> supports partial power-down mode
- Low quiescent power consumption; maximum I<sub>CC</sub> = 0.5μA
- ESD protection exceeds JESD 22: 2000-V HBM (A114-A), 200-V MM (A115-A), 1000-V CDM (C101)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74AUP1G17DBVR-TP#C49333179TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 9,110 | ₹6.03 · 9,110 in stock | View |
 | TP74AUP1G17S5#C49333201TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 3,000 | ₹7.10 · 3,000 in stock | View |
 | 74AUP1G17GV-TP#C52098005TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 6,000 | ₹5.90 · 6,000 in stock | View |
 | SN74AUP1G240DBVR-TP#C49333180TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,990 | ₹9.84 · 2,990 in stock | View |
 | SN74AUP1G07DBVR-TP#C49333172TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 4,740 | ₹8.23 · 4,740 in stock | View |
