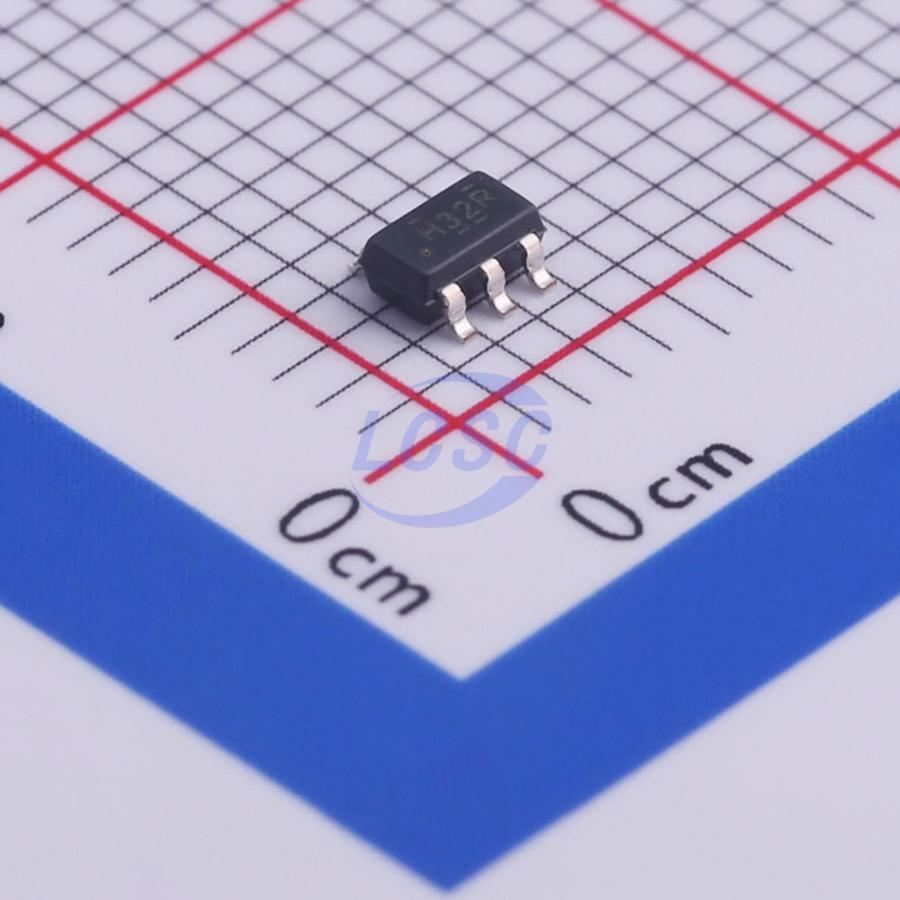

SN74AUP1G32DBVR

Schmitt trigger 800mV~3.6V 6.4ns@3.3V,30pF 500nA SOT-23-5 Gates and Inverters RoHS

SOT-23-5ROHS3 CompliantActive

Low-Power Single 2-Input Positive-OR Gate

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,585 in stock

#C469878

Stock & price checked 3 days ago

Quantity (min 5, multiples of 5)

5 × ₹43.83

₹219.15

excl. GST

₹258.60 incl. 18% GST

SN74AUP1G32DBVR

₹219.15 for 5 + GST

Specifications

Input Type: Schmitt trigger
Logic Family: 74AUP Series
Voltage - Supply: 800mV~3.6V
Output Logic Level - Low: 310mV;440mV
Propagation Delay: 6.4ns@3.3V,30pF
Features: Live insertion protection;Local shutdown mode;Rear drive protection;Overvoltage-tolerant input
Input Logic Level - Low: 0V;700mV;900mV
Input Logic Level - High: 1.6V~2V
Operating Temperature: -40℃~+85℃
Output Logic Level - High: 2.6V
Quiescent Current(Iq): 500nA
Current - Output High(IOH): 4mA
Number of Channels: 1;2
Current - Output Low(IOL): 4mA

This single 2-input positive-OR gate performs the Boolean function Y = A + B or Y = A(overline) + B(overline) in positive logic.

ATCA solutions
Active noise cancellation (ANC)
Barcode scanner
Blood pressure monitor
CPAP machine
Cable solutions
DLP 3D machine vision, hyperspectral imaging, optical networking, and spectroscopy
E-Book
Embedded PC
Field transmitter: temperature or pressure sensor
Fingerprint biometrics
HVAC: heating, ventilating, and air conditioning
Network-attached storage (NAS)
Server motherboard and PSU
Software defined radio (SDR)
TV: high-definition (HDTV), LCD, and Digital Video communications system
Wireless data access card, headset, keyboard, mouse, and LAN card
X-ray: baggage scanner, medical, and dental

Available in the ultra-small 0.64 mm² package (DPW) with 0.5 mm pitch
Low static-power consumption (Icc = 0.9 μA Max)
Low dynamic-power consumption (ΣCpd = 4.3 pF Typ at 3.3 V)
Low input capacitance (Ci = 1.5 pF Typ)
Low noise – overshoot and undershoot < 10% of Vcc
Supports live insertion, partial-power-down mode, and back drive protection
Input hysteresis allows slow input transition and better switching noise immunity at the input (Vhys = 250 mV typ at 3.3 V)
Wide operating Vcc range of 0.8 V to 3.6 V
Optimized for 3.3-V operation
3.6-V I/O Tolerant to support mixed-mode signal operation
tpd = 4.6 ns Max at 3.3 V
Suitable for point-to-point applications
Latch-up performance exceeds 100 mA per JESD 78, Class II
ESD performance tested per JESD 22: 2000-V Human-body model (A114-B, Class II), 1000-V Charged-device model (C101)
