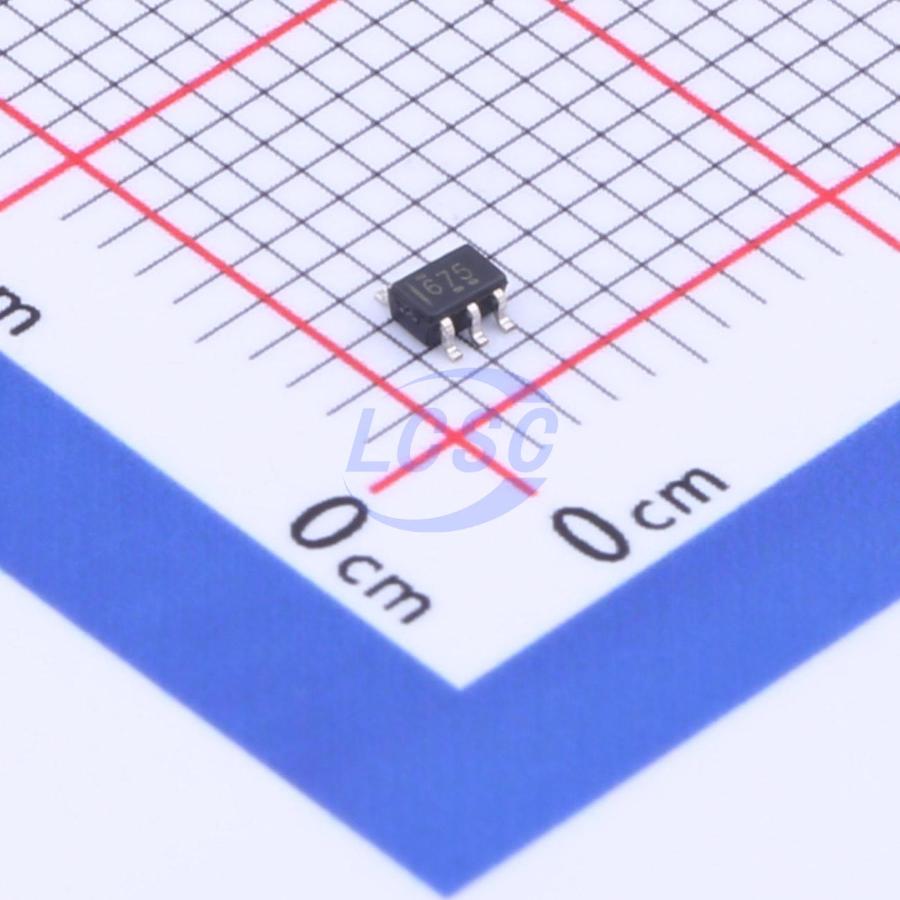

SN74AUP1T17DCKR

The SN74AUP1T17 performs the Boolean function Y = A with designation for logic-level translation applications with output referenced to supply VCC. AUP technology is designed for use in extending battery-life in operating. All input levels accept 1.8-V LVCMOS signals, while operating from either a single 3.3-V or 2.5-V VCC supply. The wide VCC range of 2.3 V to 3.6 V allows the possibility of switching output level to connect to external controllers or processors. Schmitt-trigger inputs (ΔVₜₒₚ = 210 mV between positive and negative input transitions) offer improved noise immunity during switching transitions, which is useful on analog mixed-mode designs. Schmitt-trigger inputs reject input noise, ensure integrity of output signals, and allow for slow input signal transition. Iₒff allows for powered-down conditions (VCC = 0 V) and is important in portable and mobile applications. When VCC = 0 V, signals in the range from 0 V to 3.6 V can be applied to the inputs and outputs of the device. No damage occurs to the device under these conditions. The SN74AUP1T17 is designed with optimized current-drive capability of 4 mA to reduce line reflections, overshoot, and undershoot caused by high-drive outputs.

Applications

• AV Receivers Audio Dock: Portable Blu-ray Players and Home Theaters
• MP3 Players and Recorders
• Personal Digital Assistant (PDA)
• Power: Telecom/Server AC/DC Supply
• Single Controller
• Analog and Digital Solid State Drive (SSD)
• Client and Enterprise TV: LCD/Digital and High-Definition (HDTV)
• Tablet
• Enterprise Video Analytics
• Servers
• Wireless Headsets, Keyboards, and Mice

Key features

• Single-Supply Voltage Translator
• Output Level Up to Supply VCC CMOS Level
• 1.8 V to 3.3 V (at VCC = 3.3 V); 2.5 V to 3.3 V (at VCC = 3.3 V); 1.8 V to 2.5 V (at VCC = 2.5 V); 3.3 V to 2.5 V (at VCC = 2.5 V)
• Schmitt-Trigger Inputs Reject Input Noise and Provide Better Output Signal Integrity
• Supports Partial Power Down (VCC = 0 V)
• Very Low Static Power Consumption: 0.1 μA
• Very Low Dynamic Power Consumption: 0.9 μA
• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
• Pb-Free Packages Available: SC - 70 (DCK) 2×2.1×0.65 mm (Height 1.1 mm)
• ESD Performance Tested Per JESD 22: 2000-V Human Body Model (A114 - B, Class II); 1000-V Charged-Device Model (C101)
