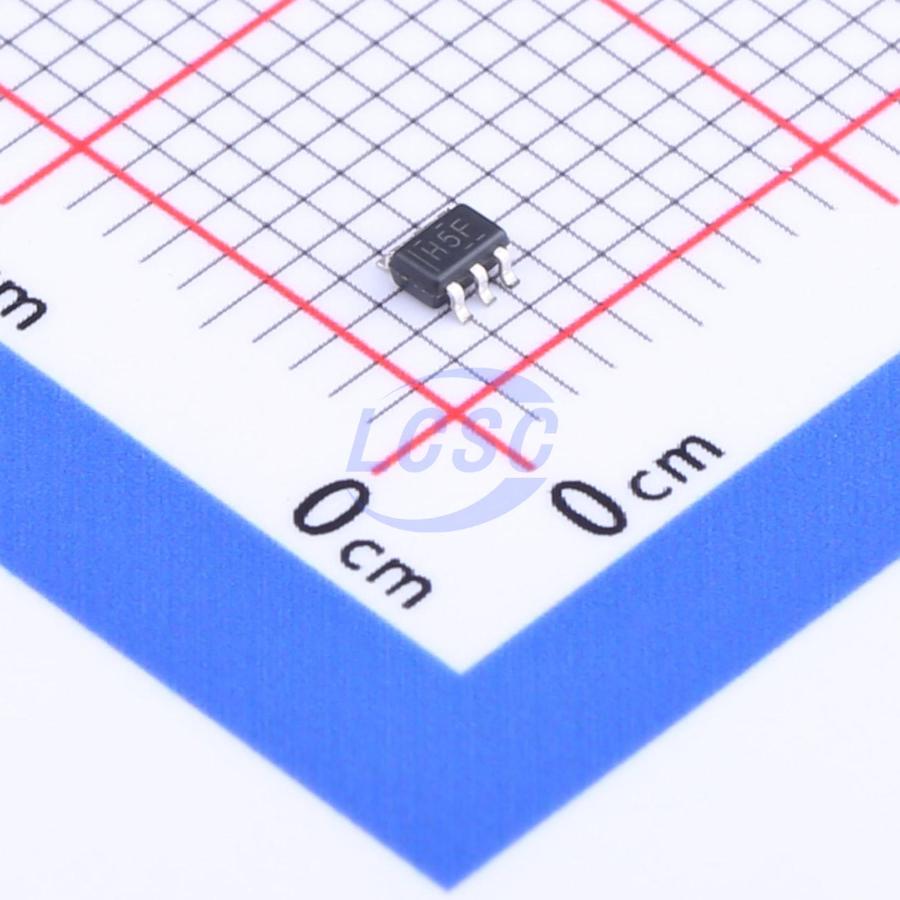

SN74AUP2G07DCKR
Buffer Driver 2 Element 1 Bit per Element Open Drain Output SC-70-6
SC-70-6ROHS3 CompliantActive
Low-power dual buffer/driver with open-drain outputs
- Manufacturer
- TI
- Manufacturer part #
- SN74AUP2G07DCKR
- Store part #
- C2682156
- Package / case
- SC-70-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,670 in stock
#C2682156
Stock & price checked 34 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.97 | ₹104.85 |
| 50+ | ₹16.46 | ₹823.00 |
| 150+ | ₹14.26 | ₹2,139.00 |
| 500+ | ₹12.30 | ₹6,150.00 |
| 3,000+ | ₹11.76 | ₹35,280.00 |
| 6,000+ | ₹11.43 | ₹68,580.00 |
5 × ₹20.97
₹104.85
excl. GST
₹123.72 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74AUP2G07DCKR
₹104.85 for 5 + GST
Specifications
- Input type
- Schmitt trigger
- Voltage - Supply
- 0.8V~3.6V
- Output Type
- Open-drain
- Operating Temperature
- -40℃~+85℃
- Quiescent Supply Current
- 900nA
- Function
- Power-off isolation;Hot-swap support;Level shifting
- Series
- 74AUP
- Current - Output Low(IOL)
- 4mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 2
- Propagation Delay
- 2.2ns@3.3V,5pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.034 g
Overview
The SN74AUP2G07 is a dual buffer gate with open-drain outputs, operating over a voltage range of 0.8V to 3.6V.
Applications
- Active Noise Cancellation (ANC)
- Barcode Scanners
- Blood Pressure Monitors
- CPAP Machines
- Cable Solutions
- DLP 3D Machine Vision
- Hyperspectral Imaging
- Fiber Optic Networks
- Spectral Analysis
- E-Readers and Smartphones
- Embedded Computers
- Field Transmitters: Temperature or Humidity Sensors
- Fingerprint Biometrics
- HVAC
- Network Attached Storage (NAS)
- Server Motherboards and PSUs
- Software Defined Radio (SDR)
- Televisions: HDTV, LCD TV, and Digital TV
- Video Communication Systems
- Wireless Data Access Cards, Headsets, Keyboards, Mice, and LAN Cards
- X-Ray: Baggage Scanners, Medical, and Dental
Key features
- Low quiescent power (Icc = 0.9μA max)
- Low dynamic power (Cpd = 1pF, typical at 3.3V)
- Low input capacitance (Ci = 1.5pF typical)
- Low noise – overshoot and undershoot less than 10% of VCC
- Ioff supports hot insertion, partial power-down mode, and back-drive protection
- Input hysteresis at Vhys = 250mV (typical at 3.3V) enables slow input transitions and improved switching noise immunity
- Wide operating VCC range: 0.8V to 3.6V
- Optimized for 3.3V operation
- 3.6V-tolerant I/O supports mixed-voltage signal operation
- tpd = 3.3ns max at 3.3V
- Suitable for point-to-point applications
- Latch-up performance exceeds 100mA per JESD 78 Class II
- ESD performance tested per JESD 22 – 4500V Human Body Model, 1500V Charged Device Model
