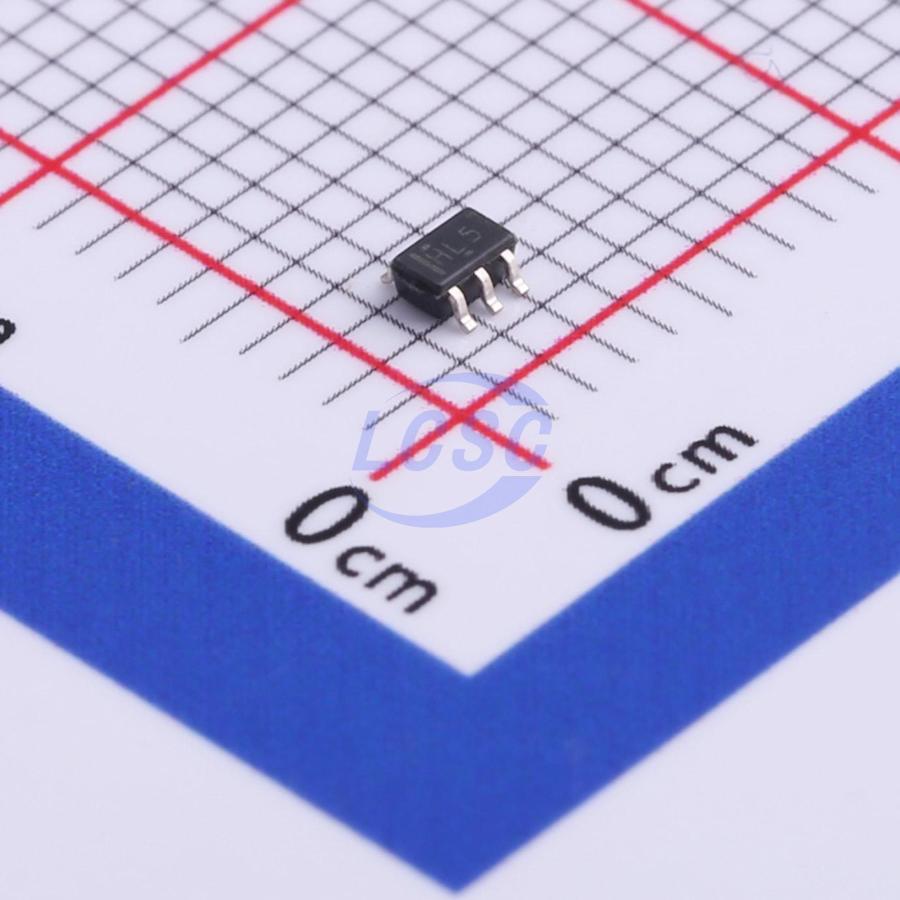

SN74AUP2G17DCKR

The AUP family ensures a very low static- and dynamic-power consumption across the entire VCC range of 0.8 V to 3.6 V, resulting in increased battery life. This product also maintains excellent signal integrity. The SN74AUP2G17 contains two buffers and performs the Boolean function Y = A. The device functions as two independent buffers, but because of Schmitt action, it may have different input threshold levels for positive-going (VT+) and negative-going (VT-) signals. NanoStar package technology is a major breakthrough in IC packaging concepts, using the die as the package. This device is fully specified for partial-power-down applications using l0H. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

Applications

• Battery-powered portable devices

Key features

• Available in the Texas Instruments NanoStar Package
• Low Static-Power Consumption (ICC = 0.9 μA Maximum)
• Low Dynamic-Power Consumption (Cpd = 4.3 pF Typical at 3.3 V)
• Low Input Capacitance (ci = 1.5 pF Typical)
• Low Noise – Overshoot and Undershoot < 10% of Vcc
• Ioff Supports Partial-Power-Down Mode Operation
• Wide Operating Vcc Range of 0.8 V to 3.6 V
• Optimized for 3.3-V Operation
• 3.6-V I/O Tolerant to Support Mixed-Mode Signal Operation
• tpd = 5.1 ns Maximum at 3.3 V
• Suitable for Point-to-Point Applications
• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
• ESD Performance Tested Per JESD 22: 2000-V Human-Body Model (A114-B, Class II), 1000-V Charged-Device Model (C101)
