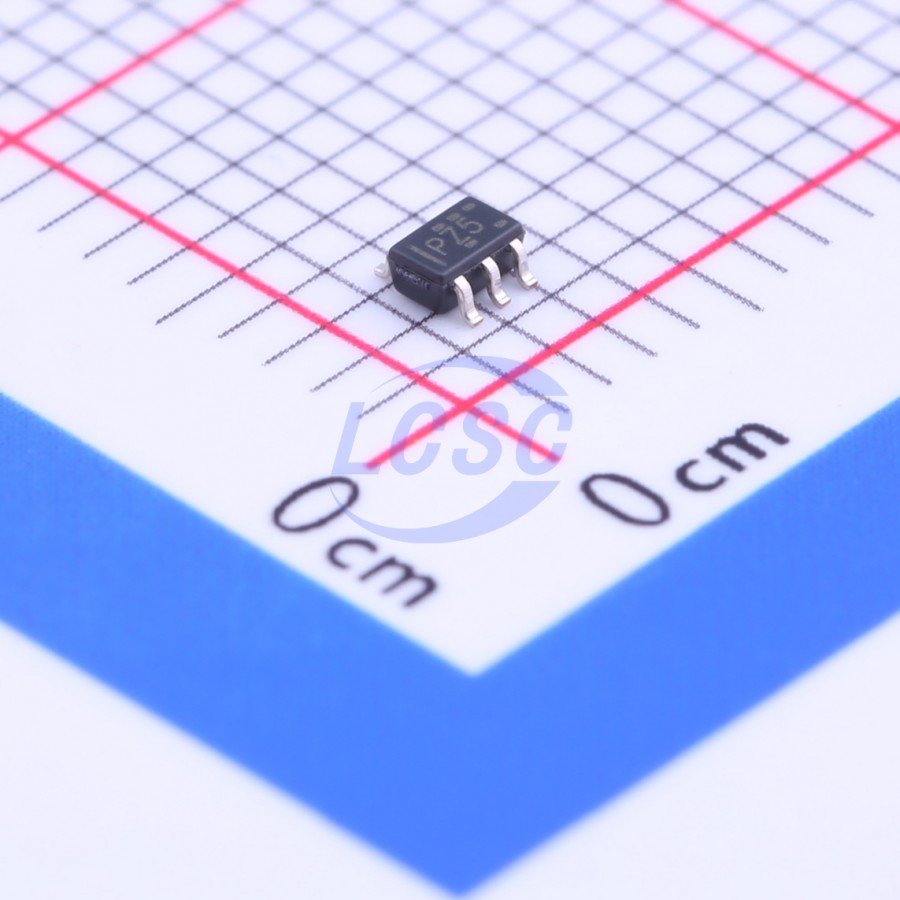

SN74AUP2G34DCKR

The AUP family is TI's premier solution to the industry's low-power needs in battery-powered portable applications. This family ensures a very low static- and dynamic-power consumption across the entire VCC range of 0.8 V to 3.6 V, resulting in increased battery life. This product also maintains excellent signal integrity. The SN74AUP2G34 performs the Boolean function Y = A in positive logic. NanoStar package technology is a major breakthrough in IC packaging concepts, using the die as the package. This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

Applications

• Battery-powered portable devices

Key features

• Available in the Texas Instruments NanoStar Package
• Low Static-Power Consumption: ICC = 0.9 μA Max
• Low Dynamic-Power Consumption: Cpd = 4.3 pF Typ at 3.3 V
• Low Input Capacitance: ci = 1.5 pF Typ
• Low Noise: Overshoot and Undershoot < 10% of Vcc
• Ioff Supports Partial-Power-Down Mode Operation
• Wide Operating Vcc Range of 0.8 V to 3.6 V
• Optimized for 3.3-V Operation
• 3.6-V I/O Tolerant to Support Mixed-Mode Signal Operation
• tpd = 4.3 ns Max at 3.3 V
• Suitable for Point-to-Point Applications
• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
• ESD Performance Tested Per JESD 22
• 2000-V Human-Body Model (A114-B, Class II)
• 1000-V Charged-Device Model (C101)
