XBLW

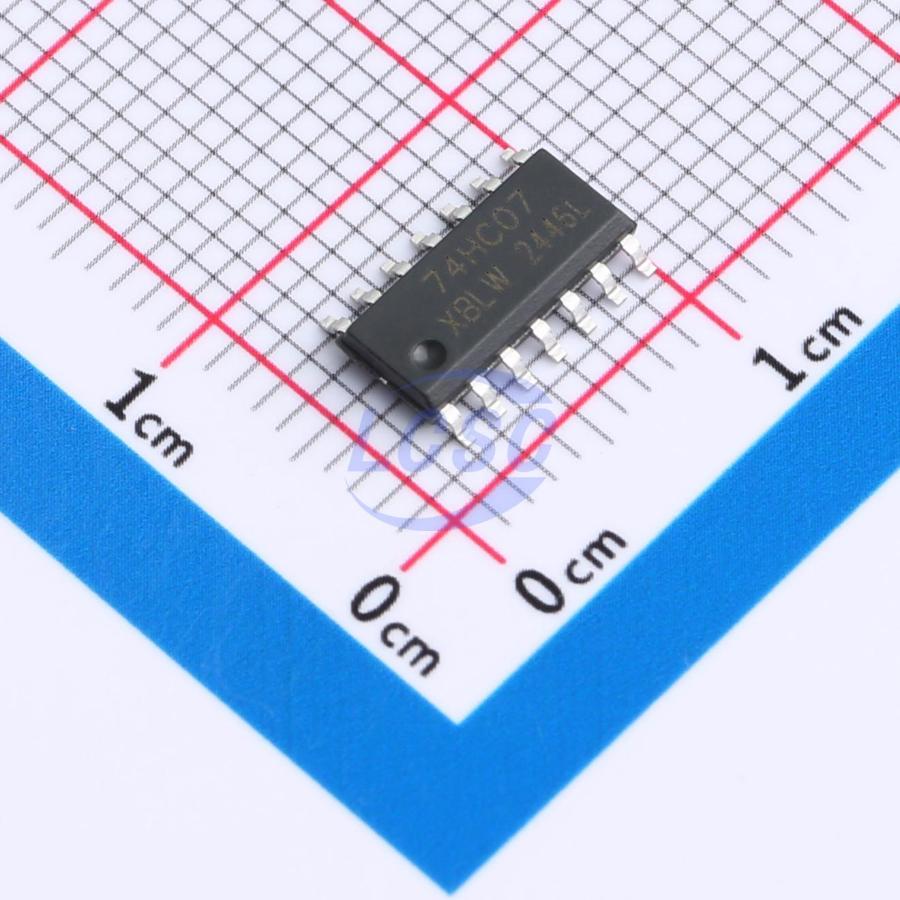

SN74HC07DTR (XBLW)

2V~6V 1 6 10ns@4.5V,50pF SOP-14 Buffers, Drivers, Receivers, Transceivers RoHS

SOP-14ROHS CompliantActive

Hex Buffer with Open-drain outputs

Manufacturer: XBLW
Manufacturer part #: SN74HC07DTR (XBLW)
Store part #: C42415781
Package / case: SOP-14
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,295 in stock

#C42415781

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹15.82	₹79.10
50+	₹12.54	₹627.00
150+	₹10.90	₹1,635.00
500+	₹9.68	₹4,840.00
2,500+	₹8.69	₹21,725.00
5,000+	₹8.20	₹41,000.00

Quantity (min 5, multiples of 5)

5 × ₹15.82

₹79.10

excl. GST

₹93.34 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

SN74HC07DTR (XBLW)

₹79.10 for 5 + GST

Specifications

Series: 74HC
Voltage - Supply: 2V~6V
Output Type: Open-drain
Number of Bits per Element: 1
Channel Type: Unidirectional
Operating Temperature: -40℃~+125℃
Number of Elements: 6
Quiescent Supply Current: 2uA
Propagation Delay: 10ns@4.5V,50pF

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.267 g

Overview

The SN74HC07 is a contains six buffers. The outputs of the SN74HC07 is open- drain and can be connected to other open- drain outputs to implement active- LOW wired- OR or active- HIGH wired- AND functions. The open- drain outputs require pull- up resistors to perform correctly.
