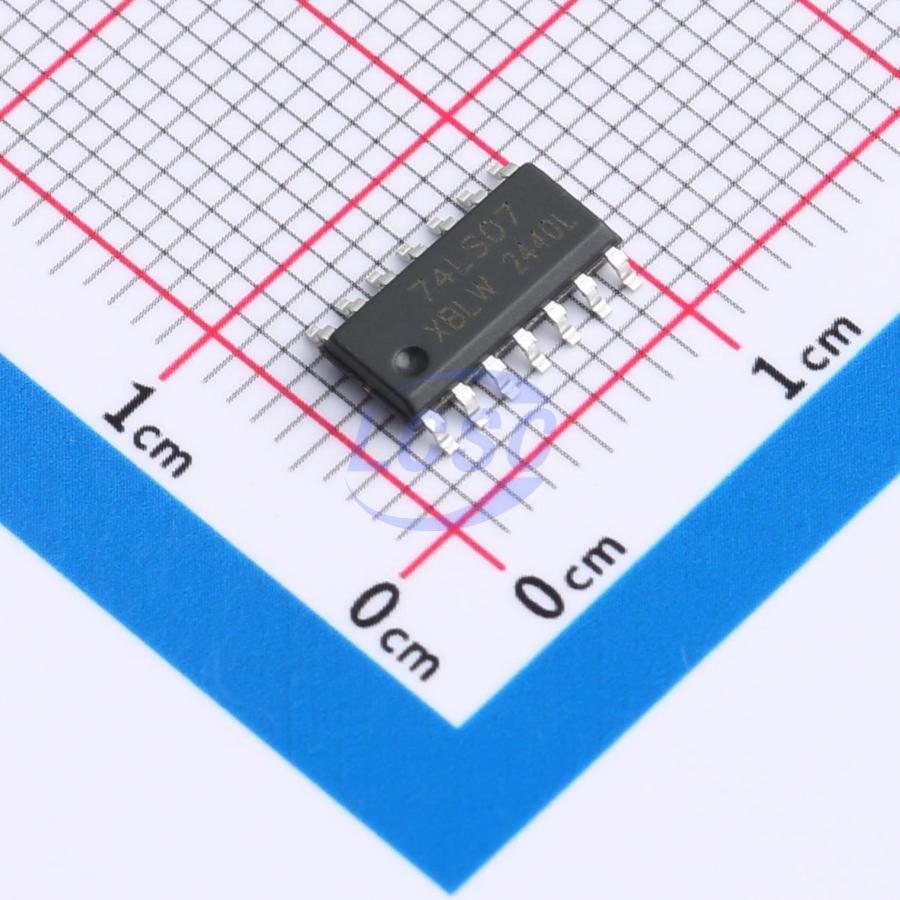

XBLW

SN74LS07DTR(XBLW)

2V~6V 1 6 8ns@5V,15pF SOP-14 Buffers, Drivers, Receivers, Transceivers RoHS

SOP-14ROHS CompliantActive

Hex Buffer with Open-drain outputs

Manufacturer: XBLW
Manufacturer part #: SN74LS07DTR(XBLW)
Store part #: C42415779
Package / case: SOP-14
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,005 in stock

#C42415779

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹18.89	₹94.45
50+	₹14.63	₹731.50
150+	₹12.81	₹1,921.50
500+	₹10.52	₹5,260.00
2,500+	₹9.51	₹23,775.00
5,000+	₹8.89	₹44,450.00

Quantity (min 5, multiples of 5)

5 × ₹18.89

₹94.45

excl. GST

₹111.45 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

SN74LS07DTR(XBLW)

₹94.45 for 5 + GST

Specifications

Series: 74LS
Voltage - Supply: 2V~6V
Current - Output Low(IOL): 5.2mA
Output Type: Open-drain
Number of Bits per Element: 1
Channel Type: Unidirectional
Operating Temperature: -20℃~+85℃
Number of Elements: 6
Quiescent Supply Current: 2uA
Propagation Delay: 8ns@5V,15pF

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.265 g

Overview

The SN74LS07 is a contains six buffers. The outputs of the SN74LS07is open-drain and can be connected to other open-drain outputs to implement active-LOW wired-OR or active-HIGH wired-AND functions. The open-drain outputs require pull-up resistors to perform correctly.
