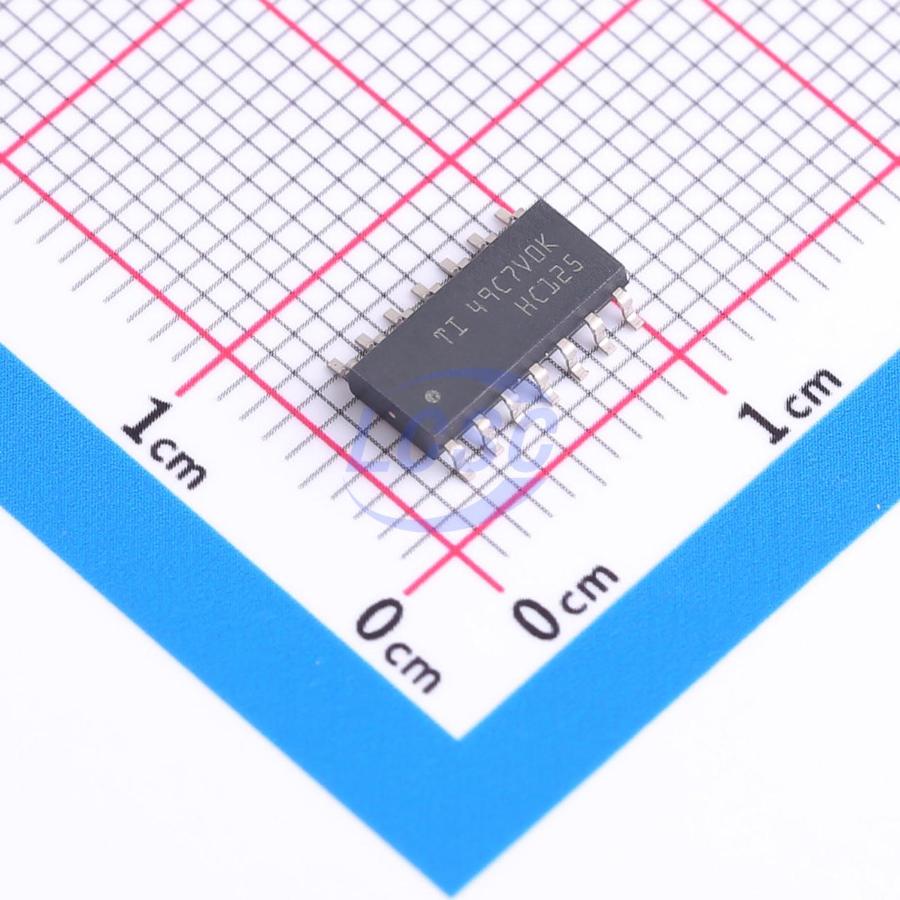

SN74HC125DR
2V~6V 1 4 11ns@6V,50pF SOIC-14 Buffers, Drivers, Receivers, Transceivers RoHS
SOIC-14ROHS3 CompliantActive
QUADRUPLE BUS BUFFER GATES WITH 3-STATE OUTPUTS
- Manufacturer
- TI
- Manufacturer part #
- SN74HC125DR
- Store part #
- C42322
- Package / case
- SOIC-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,725 in stock
#C42322
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹45.48 | ₹227.40 |
| 50+ | ₹36.94 | ₹1,847.00 |
| 150+ | ₹33.29 | ₹4,993.50 |
| 500+ | ₹28.72 | ₹14,360.00 |
| 2,500+ | ₹23.25 | ₹58,125.00 |
| 5,000+ | ₹22.03 | ₹1,10,150.00 |
5 × ₹45.48
₹227.40
excl. GST
₹268.33 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74HC125DR
₹227.40 for 5 + GST
Specifications
- Function
- Output enable
- Current - Output High(IOH)
- 7.8mA
- Series
- 74HC
- Voltage - Supply
- 2V~6V
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 7.8mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 4
- Operating Temperature
- -40℃~+85℃
- Quiescent Supply Current
- 80uA
- Propagation Delay
- 11ns@6V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.337 g
Overview
These quadruple bus buffer gates feature independent line drivers with 3-state outputs. Each output is disabled when the associated output-enable (OE) input is high. To ensure the high-impedance state during power up or power down, OE should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.
Applications
- System bus interface driver
- Bus buffer line driver
Key features
- Wide Operating Voltage Range of 2 V to 6 V
- High-Current 3-State Outputs Interface Directly With System Bus or Can Drive Up To 15 LSTTL Loads
- Low Power Consumption, 80 - μA Max ICC
- Typical tpd = 11 ns
- ± 6 - mA Output Drive at 5 V
- Low Input Current of 1 μA Max
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74HC125DR(LX)#C22436984lingxingic · SOP-14 | lingxingic | SOP-14 | 3,935 | ₹15.76 · 3,935 in stock | View |
 | 74HC126D-Q100J#C458154Nexperia · SO-14 | Nexperia | SO-14 | 85 | ₹103.19 · 85 in stock | View |
 | 74HC125D,653#C5598Nexperia · SOIC-14 | Nexperia | SOIC-14 | 49,665 | ₹18.95 · 49,665 in stock | View |
 | 74HC126D,653#C5600Nexperia · SOIC-14 | Nexperia | SOIC-14 | 2,420 | ₹34.36 · 2,420 in stock | View |
 | MM74HC126M#C897300onsemi · SOIC-14 | onsemi | SOIC-14 | 5 | ₹22.11 · 5 in stock | View |
