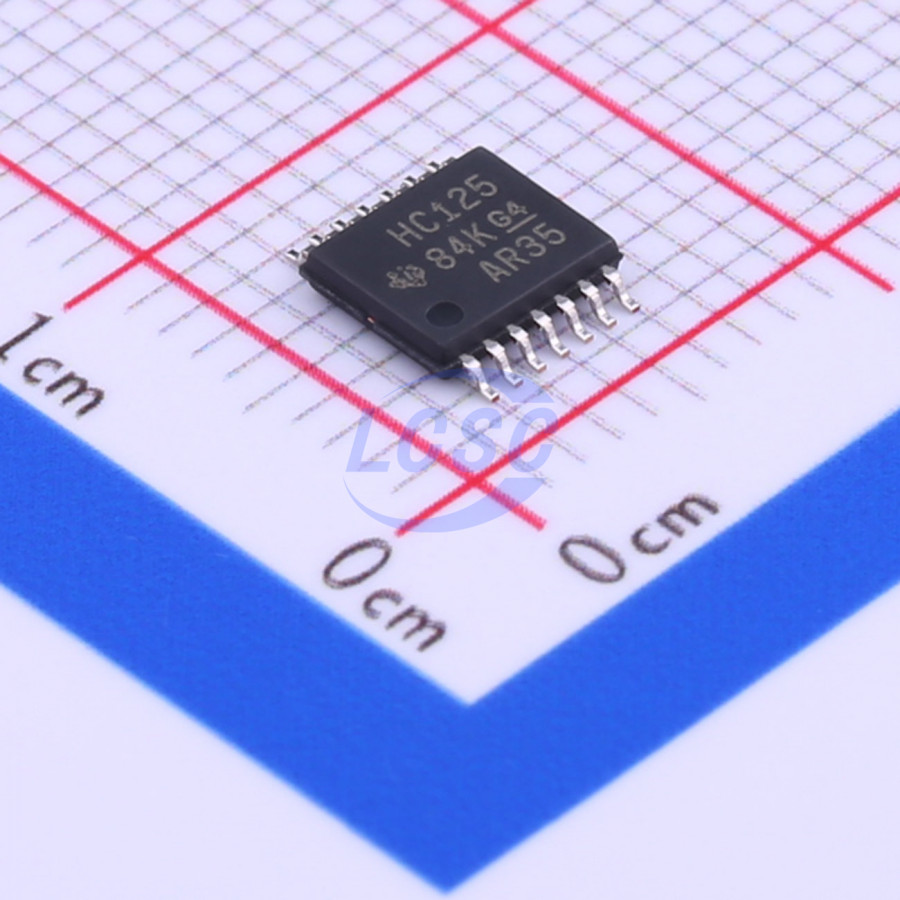

SN74HC125PWR
2V~6V 1 4 11ns@6V,50pF TSSOP-14 Buffers, Drivers, Receivers, Transceivers RoHS
TSSOP-14ROHS3 CompliantActive
Quadruple Bus Buffer Gates With 3-State Outputs
- Manufacturer
- TI
- Manufacturer part #
- SN74HC125PWR
- Store part #
- C132994
- Package / case
- TSSOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,750 in stock
#C132994
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹62.74 | ₹313.70 |
| 50+ | ₹52.39 | ₹2,619.50 |
| 150+ | ₹47.96 | ₹7,194.00 |
| 500+ | ₹42.42 | ₹21,210.00 |
| 2,000+ | ₹37.00 | ₹74,000.00 |
| 4,000+ | ₹35.52 | ₹1,42,080.00 |
5 × ₹62.74
₹313.70
excl. GST
₹370.17 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74HC125PWR
₹313.70 for 5 + GST
Specifications
- Function
- Output enable
- Current - Output High(IOH)
- 7.8mA
- Series
- 74HC
- Voltage - Supply
- 2V~6V
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 7.8mA
- Number of Bits per Element
- 1
- Channel Type
- Bidirectional
- Number of Elements
- 4
- Operating Temperature
- -40℃~+85℃
- Quiescent Supply Current
- 80uA
- Propagation Delay
- 11ns@6V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.204 g
Overview
The SNx4HC125 device is a quadruple set of bus buffer gates and features independent line drivers with 3- state outputs. The SNx4HC125 is designed for 2- V to 6- V VCC operation. Each output is disabled when the associated output- enable (OE) input is high. To ensure the high- impedance state during power up or power down, OE should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current- sinking capability of the driver.
Applications
- TV Set- Top Boxes and DVRs
- E- meters
- Smart Grids: Transmission Line Monitoring
- Printers and Computer Peripherals
- Building Security: Control Panels
- IP Phones
- Test and Measurement: Range Readers
- Smart Grids: Distribution Feeder Protection Relay
Key features
- Wide Operating Voltage Range of 2V to 6V
- High- Current 3- State Outputs Interface Directly With System Bus or Can Drive Up to 15 LSTTL Loads
- Low Power Consumption, 80 μA Maximum ICC
- Typical tμd = 11 ns
- ±6 mA Output Drive at 5V
- Low Input Current of 1 μA Maximum
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| SN74HC125IPWRG4Q1#C1879778TI · TSSOP-14 | TI | TSSOP-14 | 38 | ₹66.75 · 38 in stock | View | |
 | SN74HC126PWR#C507234TI · TSSOP-14 | TI | TSSOP-14 | 635 | ₹47.46 · 635 in stock | View |
 | CD74HC125QPWRQ1#C2675789TI · TSSOP-14 | TI | TSSOP-14 | 49 | ₹80.99 · 49 in stock | View |
 | AIP74HC125TA14.TR#C4945085Wuxi I-core Elec · TSSOP-14 | Wuxi I-core Elec | TSSOP-14 | 3,860 | ₹24.09 · 3,860 in stock | View |
