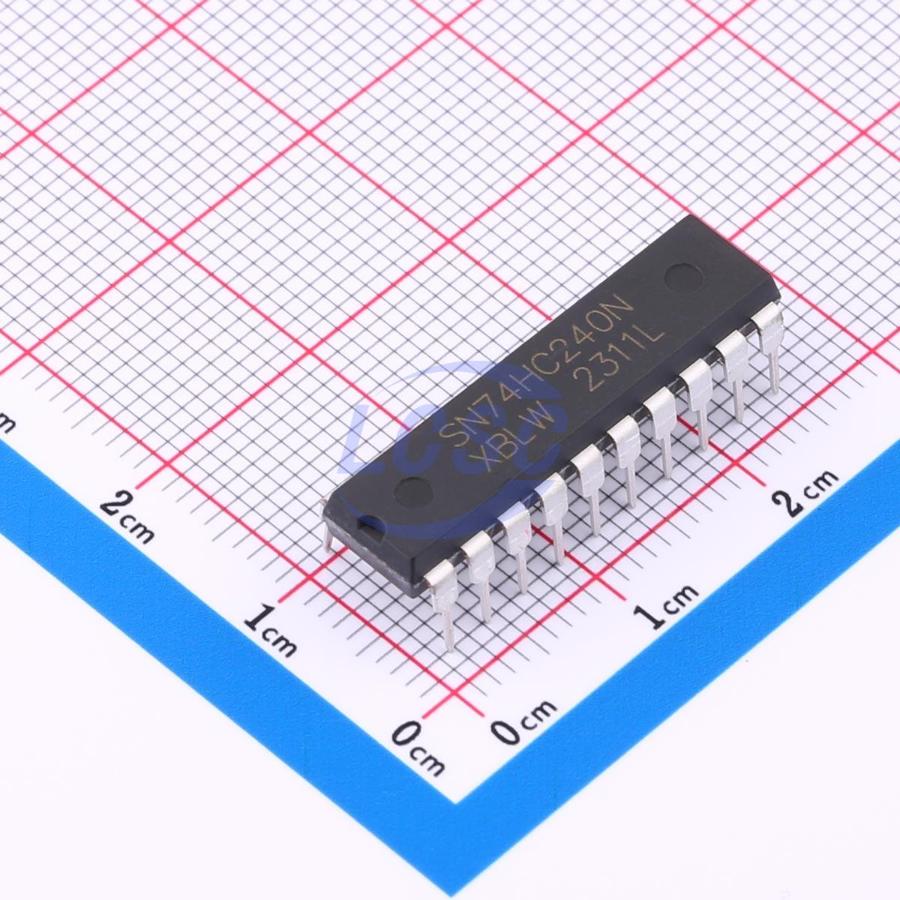

SN74HC240N(XBLW)
2V~6V 4 2 11ns@4.5V,50pF DIP-20 Buffers, Drivers, Receivers, Transceivers RoHS
DIP-20ROHS CompliantActive
Octal Buffers and Line Drivers With 3-State Outputs
- Manufacturer
- XBLW
- Manufacturer part #
- SN74HC240N(XBLW)
- Store part #
- C18724386
- Package / case
- DIP-20
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,058 in stock
#C18724386
Stock & price checked 47 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 6+ | ₹32.78 | ₹196.68 |
| 60+ | ₹28.93 | ₹1,735.80 |
| 180+ | ₹27.28 | ₹4,910.40 |
| 594+ | ₹25.23 | ₹14,986.62 |
| 2,880+ | ₹24.32 | ₹70,041.60 |
| 5,760+ | ₹23.76 | ₹1,36,857.60 |
6 × ₹32.78
₹196.68
excl. GST
₹232.08 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 18 per tube
SN74HC240N(XBLW)
₹196.68 for 6 + GST
Specifications
- Function
- Output enable
- Current - Output High(IOH)
- 20uA
- Series
- 74HC
- Voltage - Supply
- 2V~6V
- Current - Output Low(IOL)
- 6mA
- Output Type
- Tri-State
- Number of Bits per Element
- 4
- Channel Type
- Unidirectional
- Number of Elements
- 2
- Operating Temperature
- -40℃~+105℃
- Quiescent Supply Current
- 8uA
- Propagation Delay
- 11ns@4.5V,50pF
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tube-packed
- Standard pack
- 18 / Tube
- Sold per
- Piece
- Minimum order
- 6 (multiples of 6)
- Unit weight
- 2.222 g
Overview
The SN74HC240 is an 8-bit inverting buffer/line driver with 3-state outputs. The device can be used as two 4-bit buffers or one 8-bit buffer. The device features two output enables (1OE and 2OE), each controlling four of the 3-state outputs. A HIGH on nOE causes the outputs to assume a high-impedance OFF-state. Inputs include clamp diodes that enable the use of current limiting resistors to interface inputs to voltages in excess of Vcc
Key features
- Inverting 3-state outputs
- Specified from -40°C to +105°C
- Packaging information: DIP-20/SOP-20/TSSOP-20
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74HC244N(XBLW)#C18723516XBLW · DIP-20 | XBLW | DIP-20 | 2,868 | ₹29.52 · 2,868 in stock | View |
