XBLW

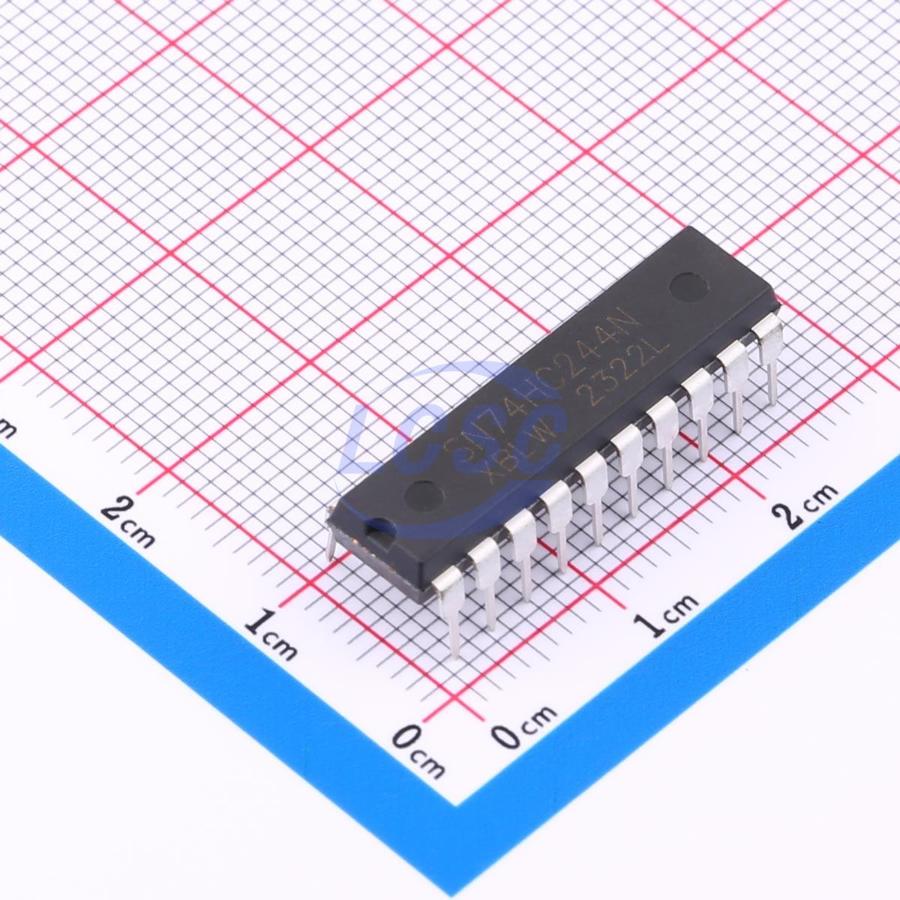

SN74HC244N(XBLW)

2V~6V 4 2 9ns@5V,15pF DIP-20 Buffers, Drivers, Receivers, Transceivers RoHS

DIP-20ROHS CompliantActive

Octal Buffer/Line Driver; 3-state

Manufacturer: XBLW
Manufacturer part #: SN74HC244N(XBLW)
Store part #: C18723516
Package / case: DIP-20
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,868 in stock

#C18723516

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
6+	₹29.52	₹177.12
60+	₹23.18	₹1,390.80
180+	₹20.47	₹3,684.60
594+	₹17.07	₹10,139.58
2,880+	₹15.56	₹44,812.80
5,760+	₹14.66	₹84,441.60

Quantity (min 6, multiples of 6)

6 × ₹29.52

₹177.12

excl. GST

₹209.00 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 18 per tube

SN74HC244N(XBLW)

₹177.12 for 6 + GST

Specifications

Function: Output enable
Current - Output High(IOH): 20uA
Series: 74HC
Voltage - Supply: 2V~6V
Output Type: Tri-State
Current - Output Low(IOL): 4mA
Number of Bits per Element: 4
Channel Type: Unidirectional
Number of Elements: 2
Operating Temperature: -40℃~+105℃
Quiescent Supply Current: 8uA
Propagation Delay: 9ns@5V,15pF

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tube-packed
Standard pack: 18 / Tube
Sold per: Piece
Minimum order: 6 (multiples of 6)
Unit weight: 2.231 g

Overview

The SN74HC244 is a 8-bit buffer/line driver with 3-state outputs. The device can be used as two 4-bit buffers or one 8-bit buffer. The device features two output enables (1OE and 2OE), each controlling four of the 3-state outputs. A HIGH on nOE causes the outputs to assume a high-impedance OFF-state. Inputs include clamp diodes that enable the use of current limiting resistors to interface inputs to voltages in excess of VCC.
