TIDatasheet (PDF)

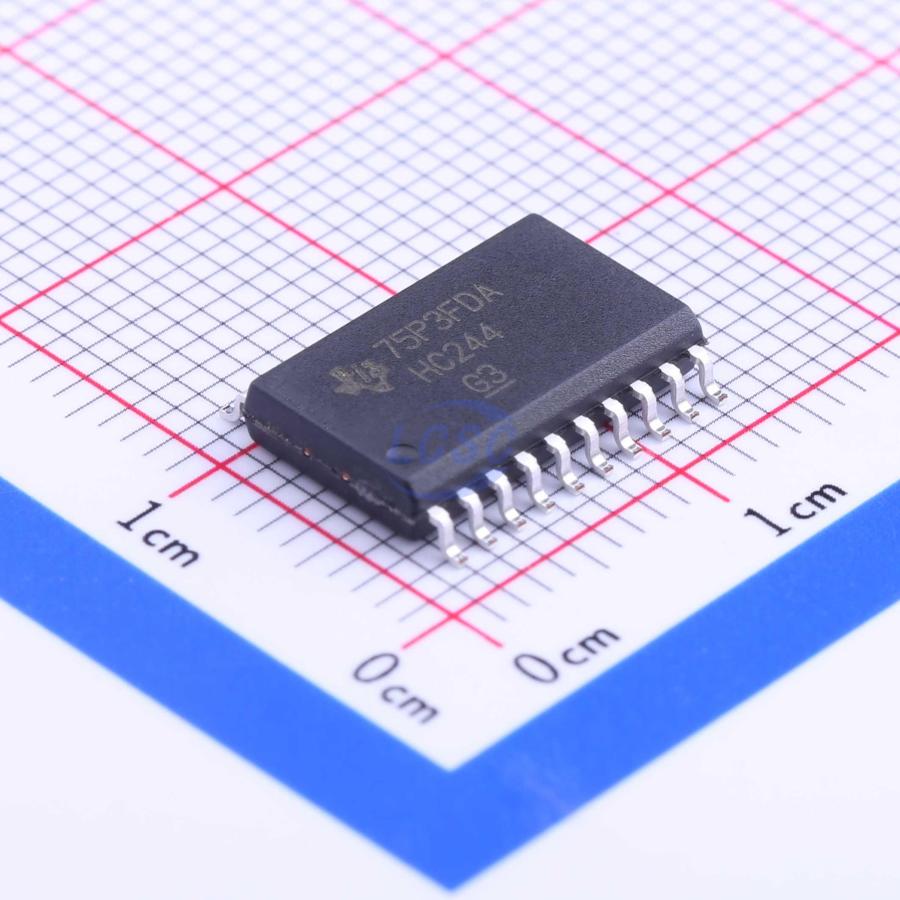

SN74HC244DWR
2V~6V 4 2 11ns@6V,50pF SOIC-20-300mil Buffers, Drivers, Receivers, Transceivers RoHS
SOIC-20-300milROHS3 CompliantActive
Octal Buffers and Line Drivers With 3-State Outputs
- Manufacturer
- TI
- Manufacturer part #
- SN74HC244DWR
- Store part #
- C85068
- Package / case
- SOIC-20-300mil
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
24,671 in stock
#C85068
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹82.54 | ₹82.54 |
| 10+ | ₹65.82 | ₹658.20 |
| 30+ | ₹57.35 | ₹1,720.50 |
| 100+ | ₹49.10 | ₹4,910.00 |
| 500+ | ₹44.10 | ₹22,050.00 |
| 1,000+ | ₹41.49 | ₹41,490.00 |
1 × ₹82.54
₹82.54
excl. GST
₹97.40 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74HC244DWR
₹82.54 for 1 + GST
Specifications
- Function
- Output enable
- Current - Output High(IOH)
- 7.8mA
- Series
- 74HC
- Voltage - Supply
- 2V~6V
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 7.8mA
- Number of Bits per Element
- 4
- Channel Type
- Unidirectional
- Number of Elements
- 2
- Operating Temperature
- -40℃~+85℃
- Quiescent Supply Current
- 80uA
- Propagation Delay
- 11ns@6V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.747 g
Overview
The SNx4HC244 octal buffers and line drivers are designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters. The SNx4HC244 devices are organized as two 4-bit buffers and drivers with separate outputenable (OE) inputs. When OE is low, the device passes noninverted data from the A inputs to the Y outputs. When OE is high, the outputs are in the high-impedance state.
Applications
- Servers
- LED Displays
- Network Switches
- Telecom Infrastructure
- Motor Drivers I/O Expanders
Key features
- Wide Operating Voltage Range of 2 V to 6 V
- High-Current Outputs Drive Up to 15 LSTTL Loads
- 3-State Outputs Drive Bus Lines or Buffer Memory Address Registers
- Low Power Consumption: ICC, 80 μA (Maximum) Typical Δtₚd = 11 ns
- ±6 mA Output Drive at 5 V
- Low Input Current of 1 μA (Maximum)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74HC244DW#C1548087TI · SOIC-20-300mil | TI | SOIC-20-300mil | 63 | ₹209.44 · 63 in stock | View |
 | SN74HC244D(LX)#C22374048lingxingic · SOP-20-300mil | lingxingic | SOP-20-300mil | 205 | ₹19.58 · 205 in stock | View |
 | SN74HC240DWR#C543085TI · SOIC-20-300mil | TI | SOIC-20-300mil | 477 | ₹103.43 · 477 in stock | View |
 | SN74HC241DWR#C6833TI · SOIC-20-300mil | TI | SOIC-20-300mil | 1 | ₹48.17 · 1 in stock | View |
 | 74HC241D,653#C455081Nexperia · SOIC-20-300mil | Nexperia | SOIC-20-300mil | 2,676 | ₹65.42 · 2,676 in stock | View |
