TIDatasheet (PDF)

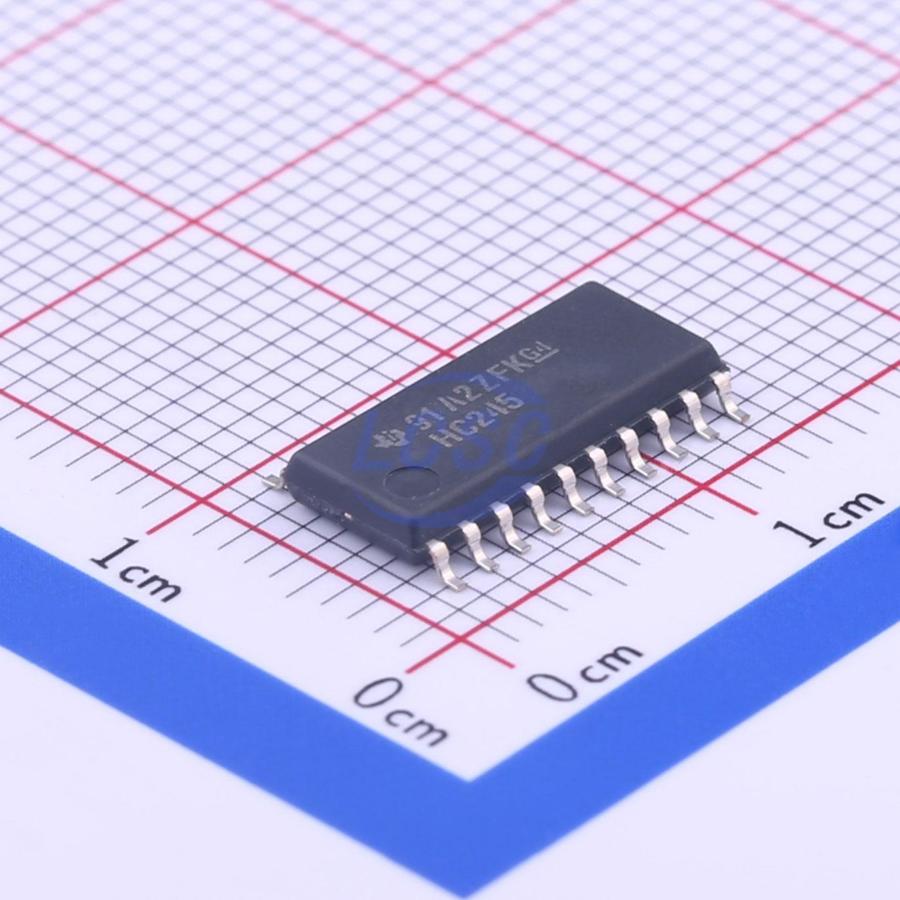

SN74HC245NSR
2V~6V 8 1 21ns@4.5V,50pF SOIC-20-208mil Buffers, Drivers, Receivers, Transceivers RoHS
SOIC-20-208milROHS3 CompliantActive
Octal Bus Transceivers With 3-State Outputs
- Manufacturer
- TI
- Manufacturer part #
- SN74HC245NSR
- Store part #
- C88578
- Package / case
- SOIC-20-208mil
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
14,580 in stock
#C88578
Stock & price checked 25 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹49.31 | ₹246.55 |
| 50+ | ₹38.70 | ₹1,935.00 |
| 150+ | ₹34.15 | ₹5,122.50 |
| 500+ | ₹28.47 | ₹14,235.00 |
| 2,000+ | ₹25.94 | ₹51,880.00 |
| 4,000+ | ₹24.42 | ₹97,680.00 |
5 × ₹49.31
₹246.55
excl. GST
₹290.93 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74HC245NSR
₹246.55 for 5 + GST
Specifications
- Function
- Output enable
- Current - Output High(IOH)
- 7.8mA
- Series
- 74HC
- Voltage - Supply
- 2V~6V
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 7.8mA
- Number of Bits per Element
- 8
- Channel Type
- Bidirectional
- Number of Elements
- 1
- Operating Temperature
- -40℃~+85℃
- Quiescent Supply Current
- 80uA
- Propagation Delay
- 21ns@4.5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.633 g
Overview
These octal bus transceivers are designed for asynchronous two-way communication between data buses. The control-function implementation minimizes external timing requirements. The devices allow data transmission from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control (DIR) input. The output-enable (OE) input can be used to disable the device so that the buses are effectively isolated.
Applications
- Servers
- PCs and Notebooks
- Network Switches
- Wearable Health and Fitness Devices
- Telecom Infrastructures
- Electronic Points of Sale
Key features
- Wide Operating Voltage Range of 2V to 6V
- High-Current 3-State Outputs Drive Bus Lines Directly or Up to 15 LSTTL Loads
- Low Power Consumption, 80 - μA Max ICC
- Typical tpd = 12 ns
- 16 - mA Output Drive at 5V
- Low Input Current of 1μA Max
- On Products Compliant to MIL-PRF-38535, All Parameters Are Tested Unless Otherwise Noted. On All Other Products, Production Processing Does Not Necessarily Include Testing of All Parameters.
