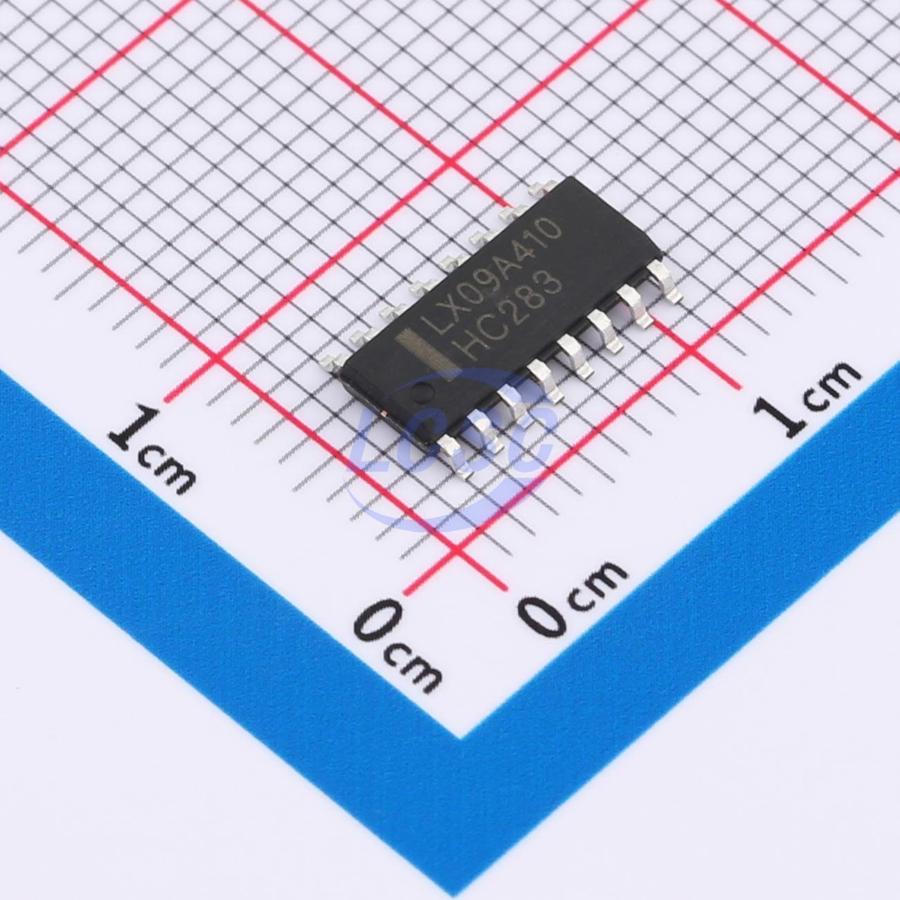

SN74HC283DR(LX)
4 SOP-16 Specialty Logic
4-bit Binary Full Adder with Fast Carry
- Manufacturer
- lingxingic
- Manufacturer part #
- SN74HC283DR(LX)
- Store part #
- C24833609
- Package / case
- SOP-16
- Category
- Specialty Logic
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,780 in stock
#C24833609
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.99 | ₹149.95 |
| 50+ | ₹25.94 | ₹1,297.00 |
| 150+ | ₹24.20 | ₹3,630.00 |
| 500+ | ₹22.03 | ₹11,015.00 |
| 2,500+ | ₹21.06 | ₹52,650.00 |
| 5,000+ | ₹20.48 | ₹1,02,400.00 |
5 × ₹29.99
₹149.95
excl. GST
₹176.94 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74HC283DR(LX)
₹149.95 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Voltage - Supply
- 2V~6V
- Number of Gates
- 4
- Logic Type
- Full Adder
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.28 g
Overview
The SN74HC/HCT283 adds two 4-bit binary words (An plus Bn) plus the incoming carry (CIN). The binary sum appears on the sum outputs (S1 to S4) and the out-going carry (COUT) according to the equation: CIN+(A1+B1)+2(A2+B2)+4(A3+B3)+8(A4+B4)=S1+2S2+4S3+8S4+16COUT Where (+)=plus. Due to the symmetry of the binary add function, the SN74HC/HCT283 can be used with either all active HIGH operands (positive logic) or all active LOW operands (negative logic). In case of all active LOW operands the results S1 to S4 and COUT should be interpreted also as active LOW. With active HIGH inputs, CIN must be held LOW when no carry in is intended. Interchanging inputs of equal weight does not affect the operation, thus CIN, A1, B1 can be assigned arbitrarily to pins 5, 6, 7, etc.
Key features
- Input levels: For SN74HC283: CMOS level For SN74HCT283: TTL level
- High-speed 4-bit binary addition
- Cascadable in 4-bit increments
- Fast internal look-ahead carry
- Low-power dissipation
- Specified from -40°C to +125°C
- Packaging information: DIP16/SOP16/TSSOP16
