TIDatasheet (PDF)

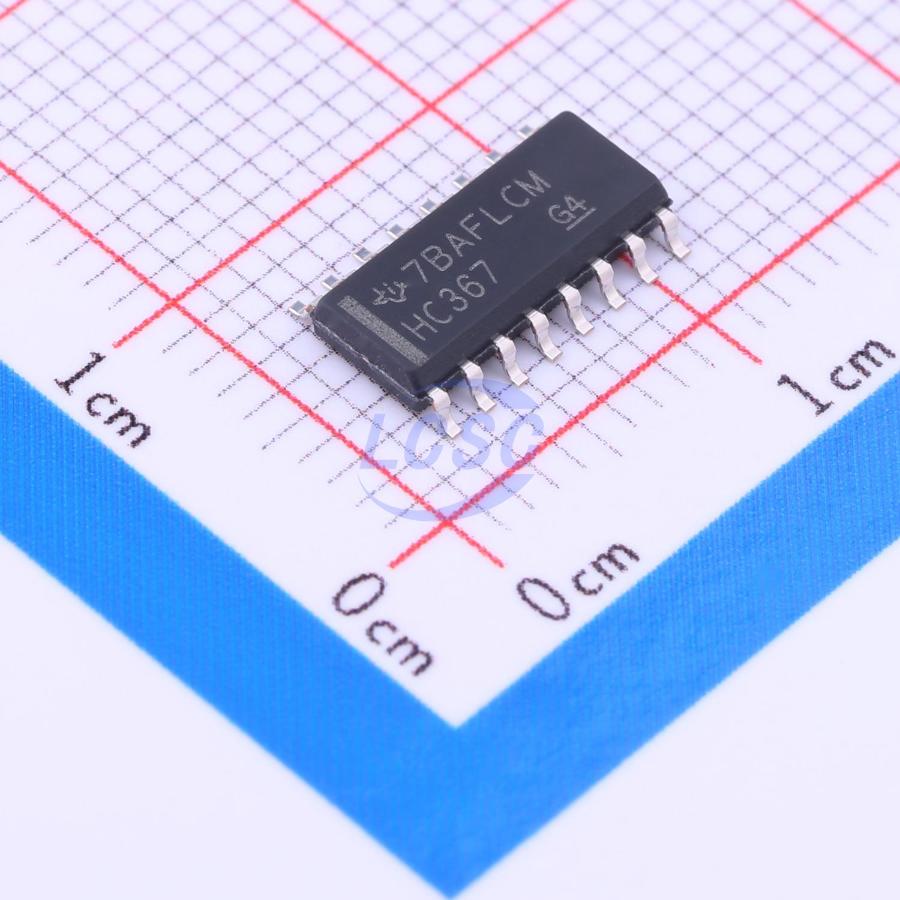

SN74HC367DR
Buffer Driver 2 Element 2,4 Bit per Element Tri-State Output SOIC-16
SOIC-16ROHS3 CompliantActive
HEX BUFFERS AND LINE DRIVERS WITH 3-STATE OUTPUTS
- Manufacturer
- TI
- Manufacturer part #
- SN74HC367DR
- Store part #
- C32941
- Package / case
- SOIC-16
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,028 in stock
#C32941
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹83.23 | ₹83.23 |
| 10+ | ₹69.10 | ₹691.00 |
| 30+ | ₹61.93 | ₹1,857.90 |
| 100+ | ₹54.98 | ₹5,498.00 |
| 500+ | ₹50.63 | ₹25,315.00 |
| 1,000+ | ₹48.46 | ₹48,460.00 |
1 × ₹83.23
₹83.23
excl. GST
₹98.21 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74HC367DR
₹83.23 for 1 + GST
Specifications
- Function
- Output enable
- Current - Output High(IOH)
- 7.8mA
- Series
- 74HC
- Voltage - Supply
- 2V~6V
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 7.8mA
- Number of Bits per Element
- 2;4
- Channel Type
- Unidirectional
- Number of Elements
- 2
- Operating Temperature
- -40℃~+85℃
- Quiescent Supply Current
- 80uA
- Propagation Delay
- 19ns@4.5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.296 g
Overview
These hex buffers and line drivers are specifically designed to improve the performance and density of three-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters. The HC367 device is organized as dual 4-bit and 2-bit buffers/drivers with active-low output-enable (1OE and 2OE) inputs. When OE is low, the device transmits noninverting data from the A inputs to the Y outputs. When OE is high, the outputs are in a high-impedance state.
Applications
- Tri-state memory address driver
- Clock driver
- Bus-oriented receiver
- Bus-oriented transmitter
Key features
- Wide operating voltage range: 2 V to 6 V
- High-current 3-state outputs for driving buses, buffered memory address registers, or up to 15 LSTTL loads
- Non-inverting outputs
- Low power consumption, max Icc = 80 μA
- Typical tpd = 10 ns
- Output drive ±6 mA at 5 V
- Max input current 1 μA
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CD74HC368M#C1548427TI · SOIC-16 | TI | SOIC-16 | 5 | ₹154.08 · 5 in stock | View |
 | SN74HC367DR(LX)#C32710650lingxingic · SOP-16 | lingxingic | SOP-16 | 3,650 | ₹31.21 · 3,650 in stock | View |
 | SN74AHC367DR#C2872342TI · SOP-16 | TI | SOP-16 | 13 | ₹50.71 · 13 in stock | View |
 | 74HC367D,653#C2442294Nexperia · SO-16 | Nexperia | SO-16 | On request | Price on request | Quote |
