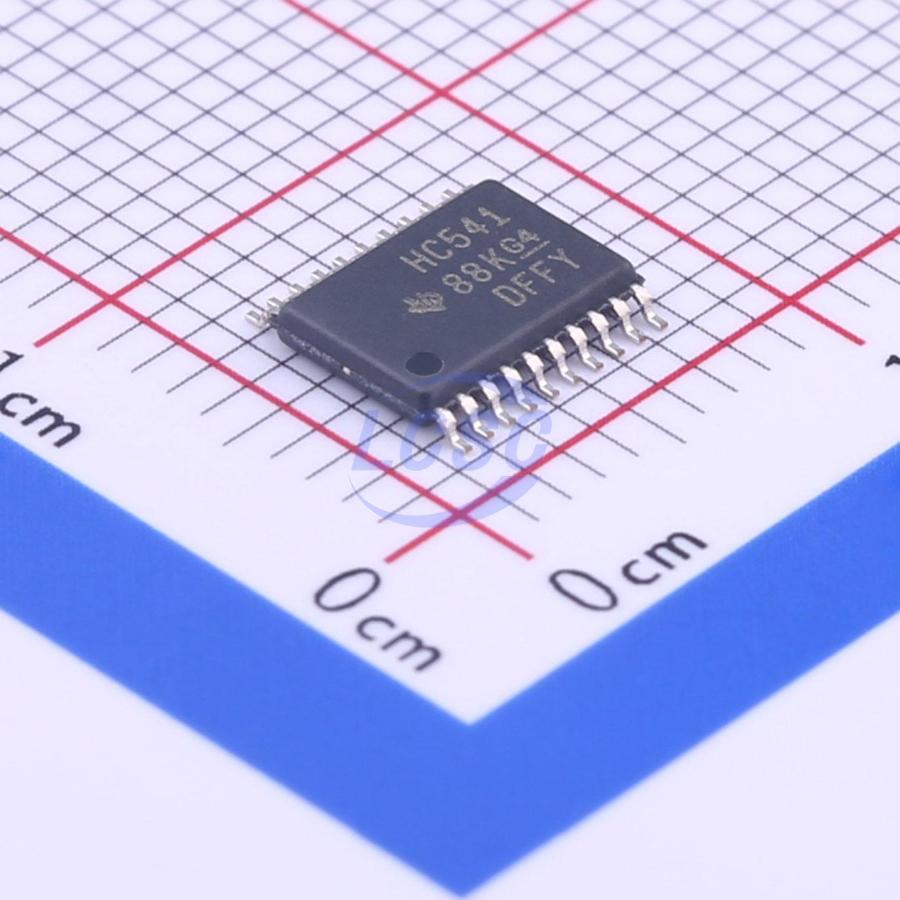

SN74HC541PWR
2V~6V 8 1 23ns@4.5V,50pF TSSOP-20 Buffers, Drivers, Receivers, Transceivers RoHS
TSSOP-20ROHS3 CompliantActive
OCTAL BUFFERS AND LINE DRIVERS WITH 3-STATE OUTPUTS
- Manufacturer
- TI
- Manufacturer part #
- SN74HC541PWR
- Store part #
- C6758
- Package / case
- TSSOP-20
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
16,054 in stock
#C6758
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹113.80 | ₹113.80 |
| 10+ | ₹89.43 | ₹894.30 |
| 30+ | ₹78.77 | ₹2,363.10 |
| 100+ | ₹65.71 | ₹6,571.00 |
| 500+ | ₹59.84 | ₹29,920.00 |
| 1,000+ | ₹56.36 | ₹56,360.00 |
1 × ₹113.80
₹113.80
excl. GST
₹134.28 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74HC541PWR
₹113.80 for 1 + GST
Specifications
- Function
- Output enable
- Current - Output High(IOH)
- 7.8mA
- Series
- 74HC
- Voltage - Supply
- 2V~6V
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 7.8mA
- Number of Bits per Element
- 8
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Operating Temperature
- -40℃~+85℃
- Quiescent Supply Current
- 80uA
- Propagation Delay
- 23ns@4.5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.297 g
Overview
These octal buffers and line drivers feature the performance of the 'HC240 devices and a pinout with inputs and outputs on opposite sides of the package. This arrangement greatly facilitates printed circuit board layout. The 3 - state outputs are controlled by a two - input NOR gate. If either output - enable (OE1 or OE2) input is high, all eight outputs are in the high - impedance state. The 'HC541 devices provide true data at the outputs.
Applications
- Bus driving
- Signal buffering and line driving
Key features
- Wide Operating Voltage Range of 2 V to 6 V
- High - Current 3 - State Outputs Drive Bus Lines Directly or Up To 15 LSTTL Loads
- Low Power Consumption, 80 - μA Max ICC
- Typical tpd = 10 ns
- ±6 - mA Output Drive at 5 V
- Low Input Current of 1 μA Max
- Data Flow - Through Pinout (All Inputs on Opposite Side From Outputs)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MM74HC541MTC#C897486onsemi · TSSOP-20 | onsemi | TSSOP-20 | 76 | ₹142.71 · 76 in stock | View |
 | CJ74HC540BGN#C52145552JSCJ · TSSOP-20 | JSCJ | TSSOP-20 | 3,401 | ₹52.75 · 3,401 in stock | View |
 | 74HC541TS#C41433435GR · TSSOP-20 | GR | TSSOP-20 | 900 | ₹32.66 · 900 in stock | View |
| MC74HC541ADTR2G#C463539onsemi · TSSOP-20 | onsemi | TSSOP-20 | 145 | ₹81.17 · 145 in stock | View | |
 | MC74HC541ADTG#C897447onsemi · TSSOP-20 | onsemi | TSSOP-20 | 34 | ₹130.34 · 34 in stock | View |
