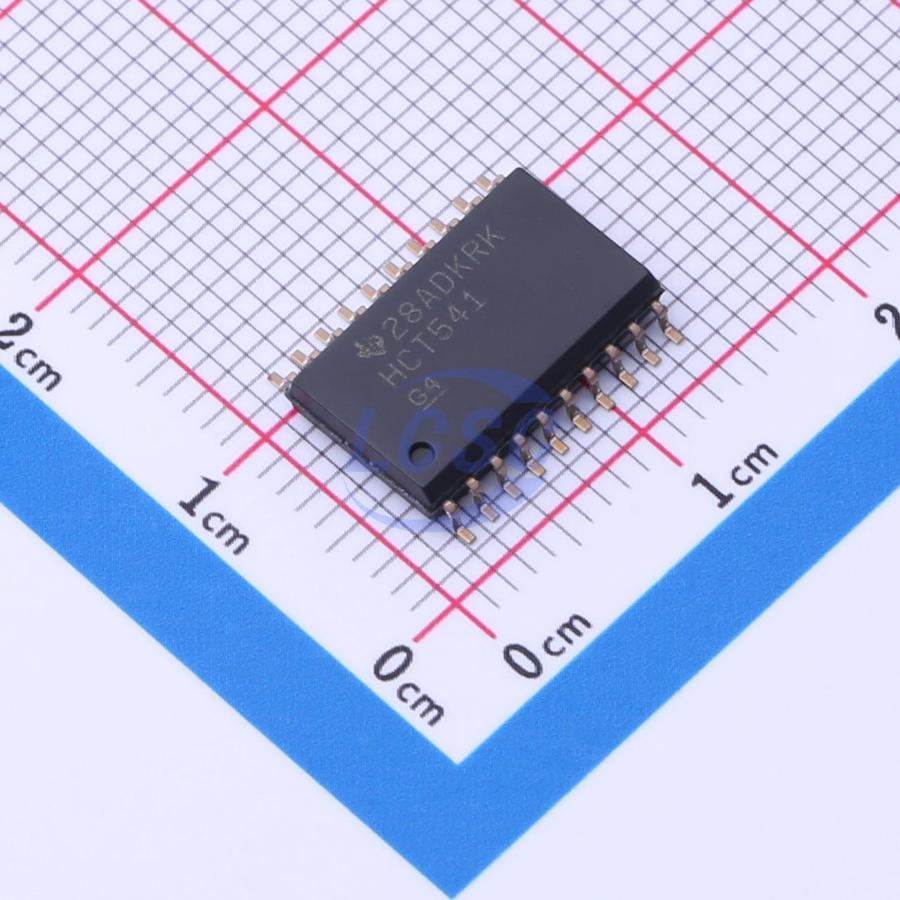

SN74HCT541DWR
4.5V~5.5V 8 1 12ns@5.5V,50pF SOIC-20 Buffers, Drivers, Receivers, Transceivers RoHS
SOIC-20ROHS3 CompliantActive
Octal buffers and line drivers with three-state outputs
- Manufacturer
- TI
- Manufacturer part #
- SN74HCT541DWR
- Store part #
- C352960
- Package / case
- SOIC-20
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
858 in stock
#C352960
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹75.29 | ₹75.29 |
| 10+ | ₹63.76 | ₹637.60 |
| 30+ | ₹55.49 | ₹1,664.70 |
| 100+ | ₹48.75 | ₹4,875.00 |
| 500+ | ₹46.57 | ₹23,285.00 |
| 1,000+ | ₹45.48 | ₹45,480.00 |
1 × ₹75.29
₹75.29
excl. GST
₹88.84 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74HCT541DWR
₹75.29 for 1 + GST
Specifications
- Function
- Output enable
- Current - Output High(IOH)
- 6mA
- Voltage - Supply
- 4.5V~5.5V
- Series
- 74HCT
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 6mA
- Number of Bits per Element
- 8
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Operating Temperature
- -40℃~+85℃
- Quiescent Supply Current
- 80uA
- Propagation Delay
- 12ns@5.5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.67 g
Overview
These octal buffers and line drivers are designed to have the performance of the popular ’HC240 series devices and to offer a pinout with inputs and outputs on opposite sides of the package. This arrangement greatly facilitates printed circuit board layout. The 3-state control gate is a 2-input NOR. If either output-enable (OE1 or OE2) input is high, all eight outputs are in the high-impedance state. The ’HCT541 devices provide true data at the outputs.
Key features
- Operating voltage range: 4.5V to 5.5V
- High-current three-state outputs
- Direct system bus connection or drives up to 15 LSTTL loads
- Low power consumption, ICC max = 80µA
- tpd typical = 12ns
- Output drive ±6mA at 5V
- Low input current, max 1µA
- TTL-compatible input voltage
- Flow-through pinout (all inputs opposite outputs)
