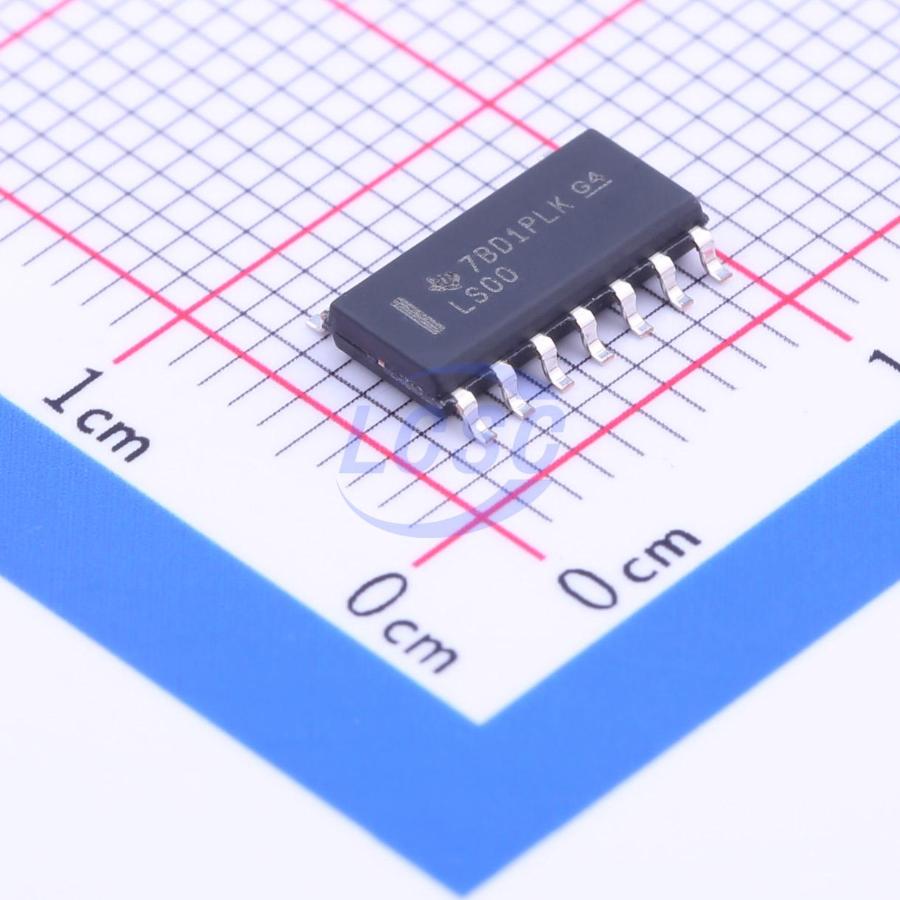

SN74LS00DR
TTL-compatible CMOS 4.75V~5.25V 15ns@5V,15pF SOIC-14 Gates and Inverters RoHS
SOIC-14ROHS3 CompliantActive
Quadruple 2-Input Positive-NAND Gates
- Manufacturer
- TI
- Manufacturer part #
- SN74LS00DR
- Store part #
- C74558
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,519 in stock
#C74558
Stock & price checked 39 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹65.61 | ₹65.61 |
| 10+ | ₹52.35 | ₹523.50 |
| 30+ | ₹46.70 | ₹1,401.00 |
| 100+ | ₹39.76 | ₹3,976.00 |
| 500+ | ₹33.02 | ₹16,510.00 |
| 1,000+ | ₹31.06 | ₹31,060.00 |
1 × ₹65.61
₹65.61
excl. GST
₹77.42 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74LS00DR
₹65.61 for 1 + GST
Specifications
- Input Type
- TTL-compatible CMOS
- Logic Family
- 74LS Series
- Voltage - Supply
- 4.75V~5.25V
- Output Logic Level - Low
- 500mV
- Propagation Delay
- 15ns@5V,15pF
- Input Logic Level - Low
- 800mV
- Input Logic Level - High
- 2V
- Operating Temperature
- 0℃~+70℃
- Output Logic Level - High
- 2.5V
- Current - Output High(IOH)
- 400uA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.264 g
Overview
The SNx4xx00 devices contain four independent, 2-input NAND gates. The devices perform the Boolean function Y = A(overline) .B or Y = A(overline) + B(overline) in positive logic.
Applications
- AV Receivers
- Portable Audio Docks
- Blu-Ray Players
- Home Theater
- MP3 Players or Recorders
- Personal Digital Assistants (PDAs)
Key features
- Package Options Include: Plastic Small-Outline (D, NS, PS), Shrink Small-Outline (DB), Ceramic Flat (W), Ceramic Chip Carriers (FK), Standard Plastic (N), Ceramic (J)
- Also Available as Dual 2-Input Positive-NAND Gate in Small-Outline (PS) Package
- Inputs Are TTL Compliant; VI H = 2 V and VL = 0.8 V
- Inputs Can Accept 3.3-V or 2.5-V Logic Inputs
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74LS00D#C2872907TI · SOIC-14 | TI | SOIC-14 | 62 | ₹151.13 · 62 in stock | View |
 | SN74LS00DS#C52091992GREENMICRO · SOP-14 | GREENMICRO | SOP-14 | 3,665 | ₹20.36 · 3,665 in stock | View |
 | SN74LS00DTR(XBLW)#C54525282XBLW · SOP-14 | XBLW | SOP-14 | 600 | ₹21.72 · 600 in stock | View |
 | XL74LS00#C609793XINLUDA · SOP-14 | XINLUDA | SOP-14 | 1,245 | ₹24.67 · 1,245 in stock | View |
| SN74LS26D#C2871511TI · SOIC-14 | TI | SOIC-14 | 20 | ₹199.05 · 20 in stock | View | |
