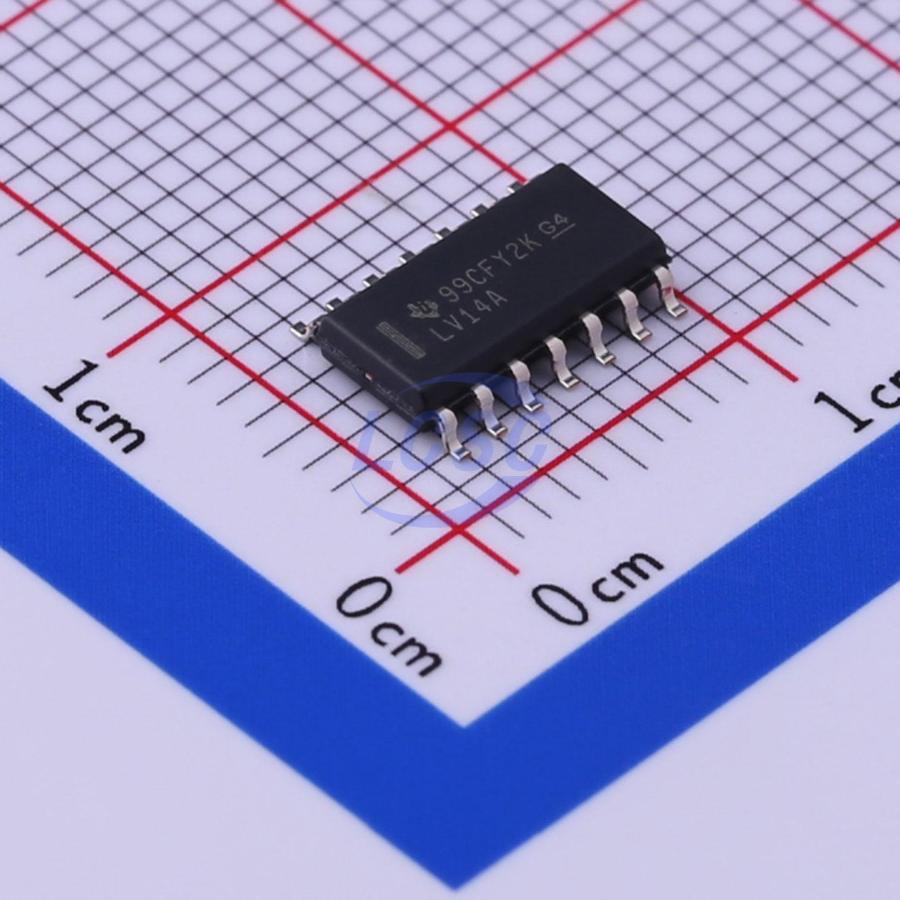

SN74LV14ADR
Schmitt trigger 2V~5.5V 10.6ns@5V,50pF 20uA 6 SOIC-14 Gates and Inverters RoHS
SOIC-14ROHS3 CompliantActive
Hex Schmitt-Trigger Inverters
- Manufacturer
- TI
- Manufacturer part #
- SN74LV14ADR
- Store part #
- C475503
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,581 in stock
#C475503
Stock & price checked 22 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹89.18 | ₹89.18 |
| 10+ | ₹70.69 | ₹706.90 |
| 30+ | ₹62.87 | ₹1,886.10 |
| 100+ | ₹52.85 | ₹5,285.00 |
| 500+ | ₹44.81 | ₹22,405.00 |
| 1,000+ | ₹42.20 | ₹42,200.00 |
1 × ₹89.18
₹89.18
excl. GST
₹105.23 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74LV14ADR
₹89.18 for 1 + GST
Specifications
- output type
- Push-pull
- Logic Family
- 74LV
- Input Type
- Schmitt trigger
- Voltage - Supply
- 2V~5.5V
- Output Logic Level - Low
- 550mV
- Propagation Delay
- 10.6ns@5V,50pF
- Features
- Power shutdown protection;Noise suppression function
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - High
- 1.75V~3.5V
- Input Logic Level - Low
- 750mV~1.5V
- Output Logic Level - High
- 3.8V
- Quiescent Current(Iq)
- 20uA
- Number of Channels
- 6
- Current - Output High(IOH)
- 12mA
- Current - Output Low(IOL)
- 12mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.34 g
Overview
These hex Schmitt- trigger inverters are designed for 2- V to 5.5- V VCC operation. The SNx4LV14A devices contain six independent inverters. These devices perform the Boolean function Y = A(overline).
Applications
- Network Switches
- Wearable Health and Fitness Devices
- PDAs
- LCD TVs
- Power Infrastructure
Key features
- 2-V to 5.5-V VCC Operation
- Max tpd of 10 ns at 5 V
- Typical VOLP (Output Ground Bounce) < 0.8V at VCC = 3.3V, TA = 25℃
- Typical VOH (Output VOH Undershoot) >2.3V at VCC = 3.3V, TA = 25℃
- Support Mixed-Mode Voltage Operation on All Ports
- Ioff Supports Partial-Power-Down Mode Operation
- Latch-Up Performance Exceeds 250 mA Per JESD 17
- ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| 74LV14AS14-13#C842469DIODES · SO-14 | DIODES | SO-14 | 100 | ₹35.36 · 100 in stock | View | |
 | AiP74LV14SA14.TR#C52121076Wuxi I-core Elec · SOP-14 | Wuxi I-core Elec | SOP-14 | 65 | ₹24.17 · 65 in stock | View |
 | 74AHC14S14-13#C128357DIODES · SO-14 | DIODES | SO-14 | 2,500 | ₹24.82 · 2,500 in stock | View |
 | 74AHC14D,118#C5510Nexperia · SOIC-14 | Nexperia | SOIC-14 | 15,615 | ₹22.40 · 15,615 in stock | View |
 | SN74AHC14D#C2859786TI · SOIC-14 | TI | SOIC-14 | 68 | ₹225.21 · 68 in stock | View |
