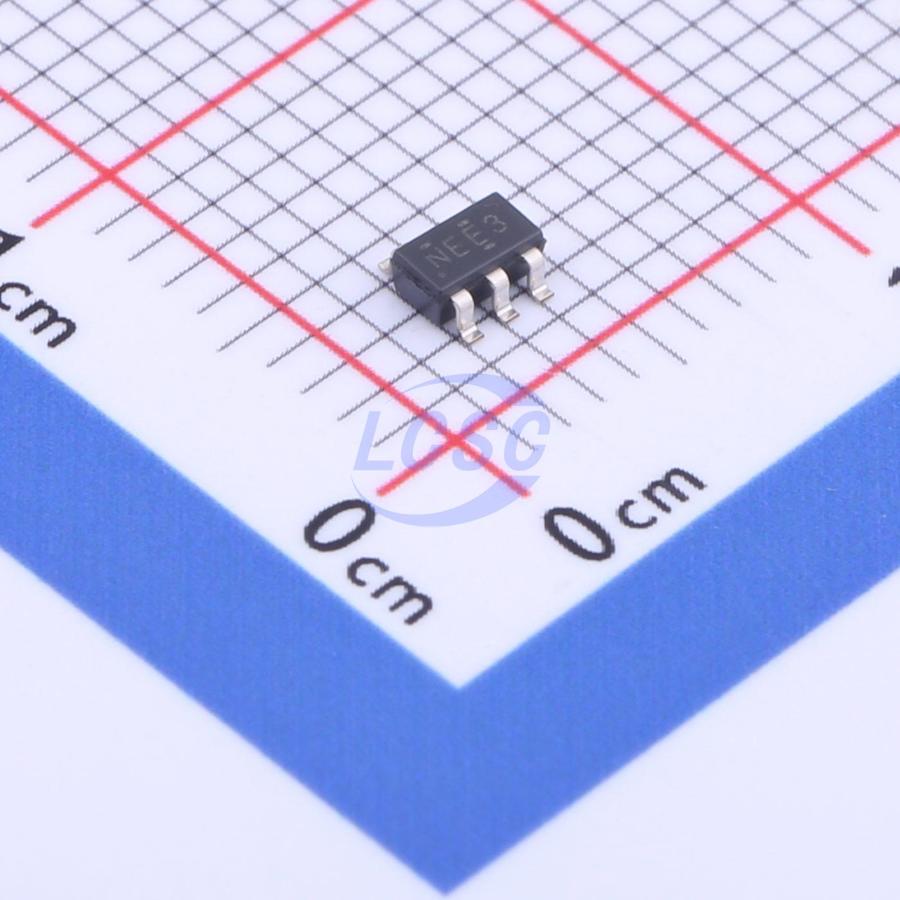

SN74LV1T08DBVR
AND Gate IC 1 Channel SOT-23-5
SOT-23-5ROHS3 CompliantActive
Single-supply 2-input positive AND gate CMOS logic level converter
- Manufacturer
- TI
- Manufacturer part #
- SN74LV1T08DBVR
- Store part #
- C2682144
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,440 in stock
#C2682144
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.23 | ₹76.15 |
| 50+ | ₹12.32 | ₹616.00 |
| 150+ | ₹10.81 | ₹1,621.50 |
| 500+ | ₹9.58 | ₹4,790.00 |
| 3,000+ | ₹9.14 | ₹27,420.00 |
| 6,000+ | ₹8.85 | ₹53,100.00 |
5 × ₹15.23
₹76.15
excl. GST
₹89.86 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LV1T08DBVR
₹76.15 for 5 + GST
Specifications
- output type
- Push-pull
- Logic Family
- 74LV Series
- Voltage - Supply
- 1.6V~5.5V
- Output Logic Level - Low
- 100mV;200mV~250mV;150mV~200mV;252mV~300mV;350mV
- Propagation Delay
- 7ns@5V,30pF
- Features
- Overvoltage-tolerant input
- Input Logic Level - Low
- 580mV~800mV
- Input Logic Level - High
- 940mV~2.1V
- Operating Temperature
- -40℃~+125℃
- Quiescent Current(Iq)
- 10uA
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 1;2
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.033 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74LVC1G08QW5-7#C4469390DIODES · SOT-25 | DIODES | SOT-25 | 10 | ₹7.63 · 10 in stock | View |
 | 74LVC1G08W5-TP#C52098147TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,510 | ₹5.89 · 2,510 in stock | View |
 | TC7SZ08F-TP#C54195035TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 3,000 | ₹5.81 · 3,000 in stock | View |
 | 74LVC1G08DBVR-TD#C53463554TDSEMIC · SOT-23-5 | TDSEMIC | SOT-23-5 | 3,000 | ₹6.11 · 3,000 in stock | View |
 | SN74LVC1G08QDBVRQ1#C840098TI · SOT-23-5 | TI | SOT-23-5 | 5,435 | ₹34.27 · 5,435 in stock | View |
