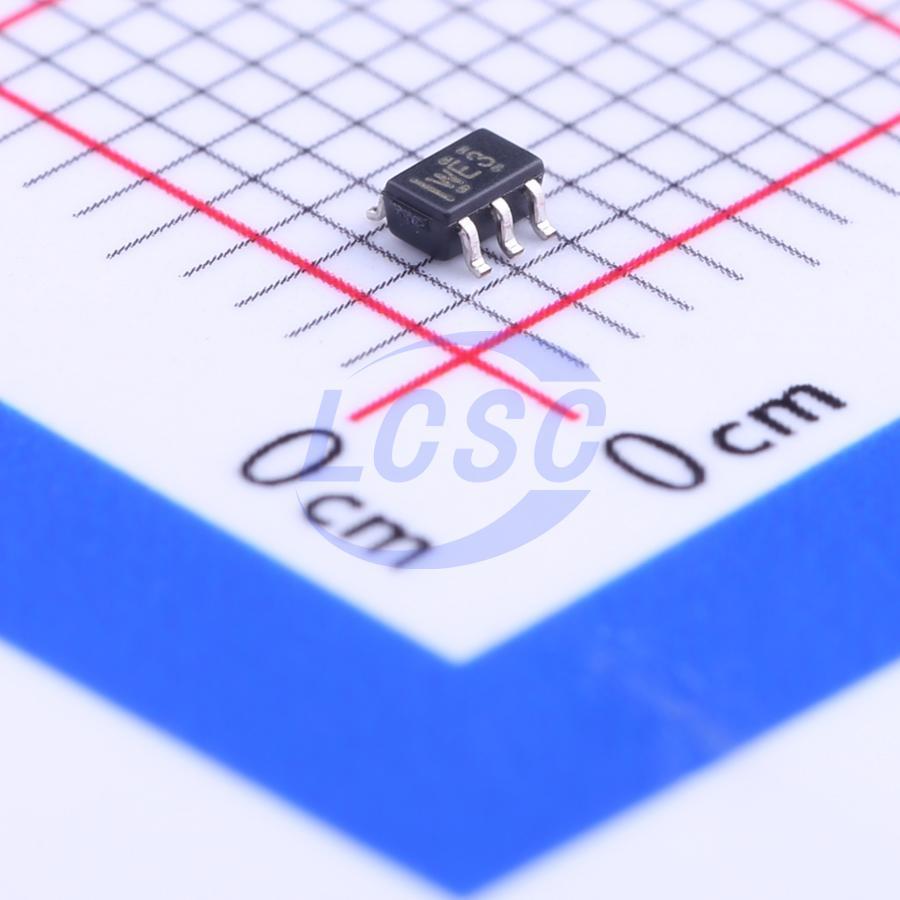

SN74LV1T08DCKR
AND Gate IC 1 Channel SC-70-5
SC-70-5ROHS CompliantActive
Single-supply 2-input positive AND gate CMOS logic level converter
- Manufacturer
- TI
- Manufacturer part #
- SN74LV1T08DCKR
- Store part #
- C130199
- Package / case
- SC-70-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,715 in stock
#C130199
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.99 | ₹59.95 |
| 50+ | ₹9.39 | ₹469.50 |
| 150+ | ₹8.08 | ₹1,212.00 |
| 500+ | ₹7.10 | ₹3,550.00 |
| 3,000+ | ₹6.32 | ₹18,960.00 |
| 6,000+ | ₹5.94 | ₹35,640.00 |
5 × ₹11.99
₹59.95
excl. GST
₹70.74 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LV1T08DCKR
₹59.95 for 5 + GST
Specifications
- Features
- Overvoltage-tolerant input
- Input Logic Level - Low
- 580mV~800mV
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - High
- 940mV~2.1V
- Logic Family
- 74LV Series
- Output Logic Level - High
- 4.6V
- Quiescent Current(Iq)
- 10uA
- Voltage - Supply
- 1.6V~5.5V
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 1;2
- Output Logic Level - Low
- 150mV;300mV
- Propagation Delay
- 7ns@5V,30pF
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.033 g
Overview
Applications
- Industrial controllers
- Telecom portable applications
- Servers
- PCs and laptops
- Automotive
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AiP74LV1T08GC353.TR#C7437294Wuxi I-core Elec · SOT-353 | Wuxi I-core Elec | SOT-353 | 2,720 | ₹13.08 · 2,720 in stock | View |
 | SN74LV1T08DCKRG4#C2864086TI · SC-70-5 | TI | SC-70-5 | 8 | ₹321.33 · 8 in stock | View |
 | SN74LVC1G08DCKR#C19829629TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 70 | ₹7.98 · 70 in stock | View |
 | 74LVC1G08GW#C19829652TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 6,310 | ₹7.49 · 6,310 in stock | View |
 | 74LVC1G08SE-TP#C52098134TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,980 | ₹5.85 · 2,980 in stock | View |
