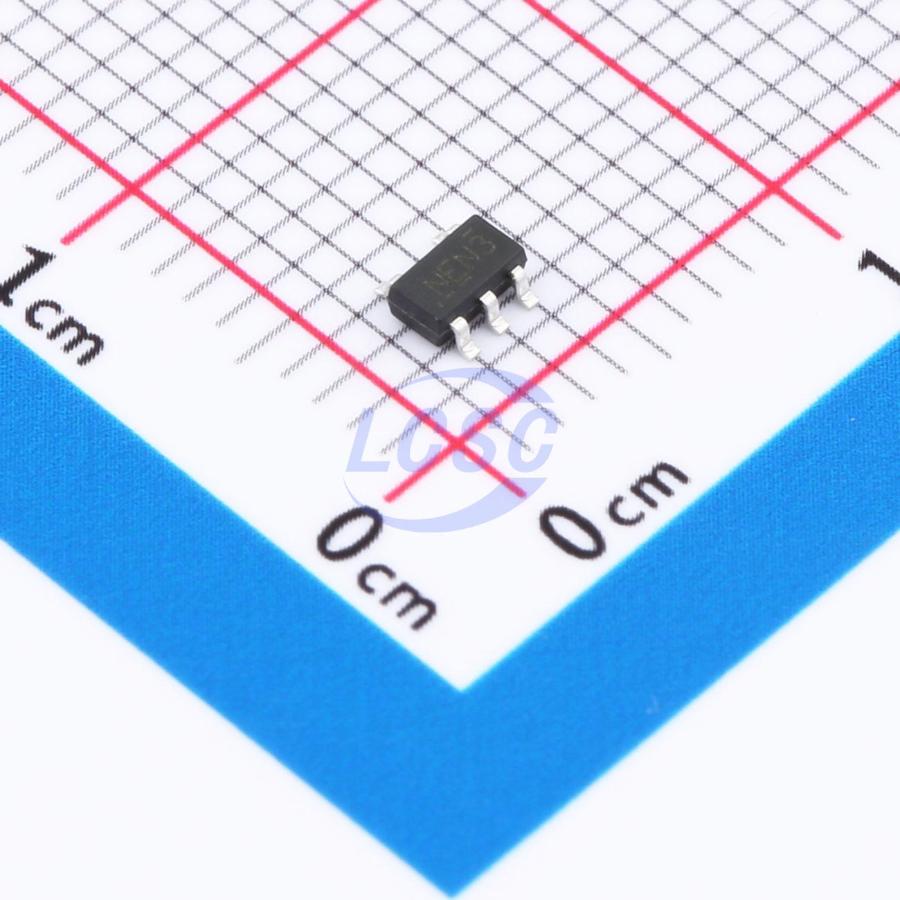

SN74LV1T126DBVR-TP
1.6V~5.5V 1 1 2.7ns@5V,15pF SOT-23-5 Buffers, Drivers, Receivers, Transceivers
SOT-23-5RoHSActive
SINGLE BUFFER GATE WITH 3-STATE OUTPUT CMOS LOGIC LEVEL SHIFTER
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SN74LV1T126DBVR-TP
- Store part #
- C47117562
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
14,945 in stock
#C47117562
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.90 | ₹69.50 |
| 50+ | ₹11.03 | ₹551.50 |
| 150+ | ₹9.60 | ₹1,440.00 |
| 500+ | ₹8.53 | ₹4,265.00 |
| 3,000+ | ₹7.67 | ₹23,010.00 |
| 6,000+ | ₹7.24 | ₹43,440.00 |
5 × ₹13.90
₹69.50
excl. GST
₹82.01 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LV1T126DBVR-TP
₹69.50 for 5 + GST
Specifications
- Voltage - Supply
- 1.6V~5.5V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 1uA
- Function
- Power-off isolation;Output enable;Level shifting
- Current - Output High(IOH)
- 8mA
- Series
- 74LV
- Current - Output Low(IOL)
- 8mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Propagation Delay
- 2.7ns@5V,15pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.036 g
Overview
Is a single-channel level-shifting buffer driver with tri-state output. The tri-state output is controlled by the output enable input (OE); when OE is low, the output enters a high-impedance off state. Output levels reference the supply voltage, supporting 1.8V, 2.5V, 3.3V, and 5.0V CMOS logic levels. The low-threshold input supports 1.8V input logic at VCC = 3.3V, enabling 1.8V to 3.3V level translation.
Applications
- AV receivers
- Portable audio docking stations
- Blu-ray players and home theaters
- Embedded PCs
- PDAs
- Telecom/server power supplies, AC/DC single supply
- Analog and digital controllers
- Client and enterprise SSDs
- Wireless headsets, keyboards, and mice
Key features
- Operating voltage range: 1.6V to 5.5V
- Low supply current: Icc = 10μA (maximum)
- ±8mA output drive (VCC = 5.0V)
- Power-off protection
- ESD protection exceeds JESD 22 - 2000-V Human Body Model (A114-A), 200-V Machine Model (A115-A), 1000-V Charged Device Model (C101)
