TECH PUBLICDatasheet (PDF)

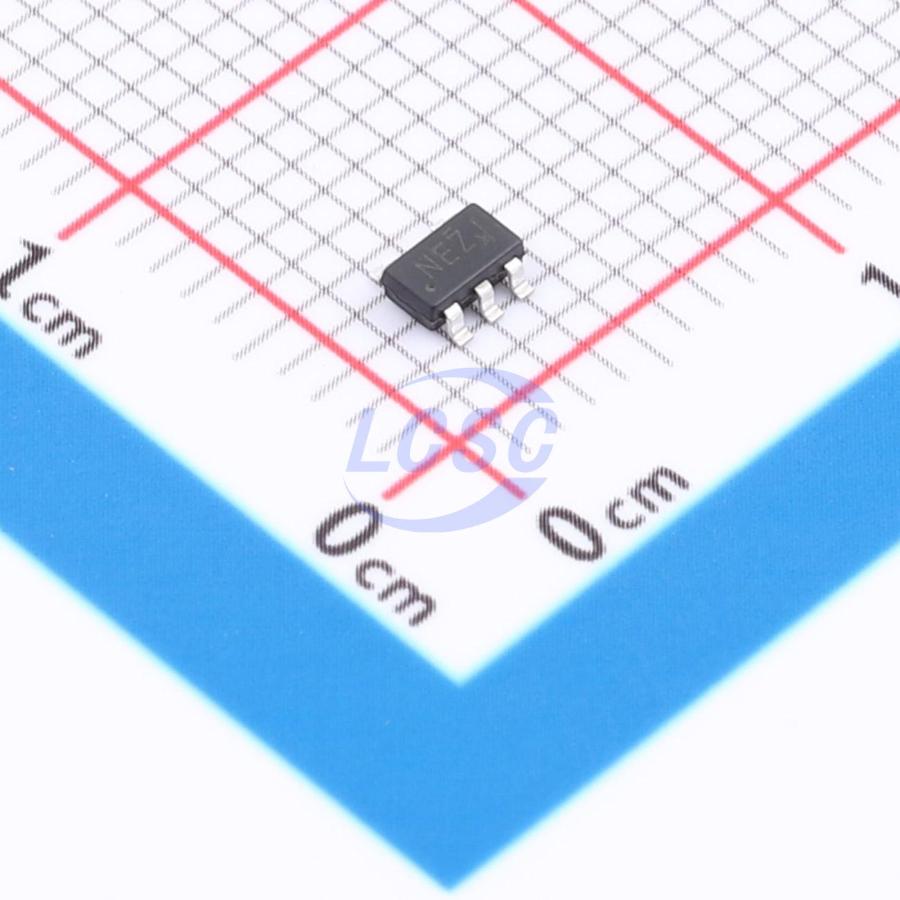

TP74LV1T125S5
1.6V~5.5V 1 1 2.7ns@5V,15pF SOT-23-5 Buffers, Drivers, Receivers, Transceivers
SOT-23-5RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TP74LV1T125S5
- Store part #
- C51886113
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,900 in stock
#C51886113
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.89 | ₹88.90 |
| 100+ | ₹6.97 | ₹697.00 |
| 300+ | ₹6.02 | ₹1,806.00 |
| 3,000+ | ₹5.31 | ₹15,930.00 |
| 6,000+ | ₹4.72 | ₹28,320.00 |
| 9,000+ | ₹4.43 | ₹39,870.00 |
10 × ₹8.89
₹88.90
excl. GST
₹104.90 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP74LV1T125S5
₹88.90 for 10 + GST
Specifications
- Voltage - Supply
- 1.6V~5.5V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 1uA
- Function
- Power-off isolation;Output enable;Level shifting
- Current - Output High(IOH)
- 8mA
- Series
- 74LV
- Current - Output Low(IOL)
- 8mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Propagation Delay
- 2.7ns@5V,15pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.036 g
Overview
The TP74LV1T125 is a single-channel, three-state output buffer driver with level-shifting capability. The output state is controlled by the output enable input (OE). When OE is high, the output enters a high-impedance state (disabled). The output level references the supply voltage, supporting 1.8V, 2.5V, 3.3V, and 5.0V CMOS logic levels. Its low-threshold input supports 1.8V input logic at VCC = 3.3V, enabling level up-translation from 1.8V to 3.3V. In addition, the 5V-tolerant input pin supports level down-translation (e.g., achieving 3.3V to 2.5V output translation at VCC = 2.5V).
Applications
- AV receivers
- Blu-ray players and home theater systems
- Embedded PCs
- Personal digital assistants
- Solid-state drives
Key features
- Operating voltage range: 1.6V to 5.5V
- Low quiescent current: Icc = 10μA (maximum)
- Output drive capability: ±8mA (at VCC = 5.0V)
- Power-off protection
- ESD protection exceeds JESD 22 standards:
- 2000-V Human Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged Device Model (C101)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74LV1T126DBVR-TP#C47117562TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 14,945 | ₹13.90 · 14,945 in stock | View |
 | 74LV1T125GVH-TP#C51886114TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,790 | ₹7.53 · 2,790 in stock | View |
 | SN74LV1T125DBVR-TP#C51886115TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,450 | ₹8.04 · 2,450 in stock | View |
 | 74LVC1G125GV-TP#C3040595TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 23,010 | ₹11.92 · 23,010 in stock | View |
 | NC7SZ125M5X-TP#C42460214TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 1,330 | ₹7.57 · 1,330 in stock | View |
