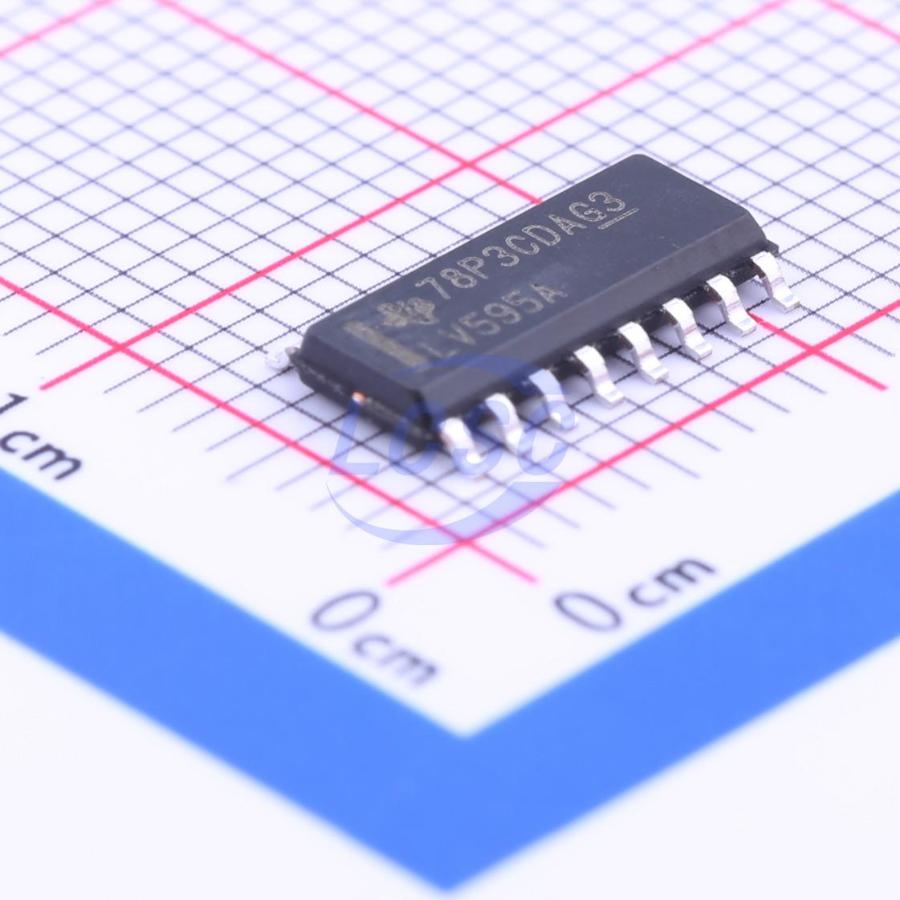

SN74LV595ADR
2V~5.5V 1 16mA 9.4ns@5V,50pF Serial-to-Serial or Parallel SOIC-16 Shift Registers RoHS
SOIC-16ROHS3 CompliantActive
8-Bit Shift Registers With 3-State Output Registers
- Manufacturer
- TI
- Manufacturer part #
- SN74LV595ADR
- Store part #
- C205940
- Package / case
- SOIC-16
- Category
- Shift Registers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,500 in stock
#C205940
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹68.66 | ₹68.66 |
| 10+ | ₹54.32 | ₹543.20 |
| 30+ | ₹48.24 | ₹1,447.20 |
| 100+ | ₹40.63 | ₹4,063.00 |
| 500+ | ₹32.16 | ₹16,080.00 |
| 1,000+ | ₹29.99 | ₹29,990.00 |
1 × ₹68.66
₹68.66
excl. GST
₹81.02 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74LV595ADR
₹68.66 for 1 + GST
Specifications
- Operating temperature
- -40℃~+85℃
- Voltage - Supply
- 2V~5.5V
- Output Type
- Tri-State
- Current - Output High(IOH)
- 16mA
- Series
- 74LV
- Current - Output Low(IOL)
- 16mA
- Number of Elements
- 1
- Output Current
- 16mA
- Features
- Asynchronous clear function;Output enable
- Propagation Delay
- 9.4ns@5V,50pF
- Function
- Serial-to-Serial or Parallel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.296 g
Overview
The SN74LV595A device contains an 8-bit serial-in, parallel-out shift register that feeds an 8-bit D-type storage register. Both the shift register clock (SRCLK) and storage register clock (RCLK) are positive-edge triggered.
Applications
- Network Switches
- Power Infrastructures
- PCs and Notebooks
- LED Displays
- Servers I/O Expanders
Key features
- 2-V to 5.5-V CC Operation
- Max tpd of 7.1 ns at 5 V
- Typical VOLP (Output Ground Bounce) < 0.8 V at VCC = 3.3 V, TA = 25 ℃
- Typical VOHV (Output VOH Undershoot) > 2.3 V at VCC = 3.3 V, TA = 25 ℃
- Support Mixed-Mode Voltage Operation on All Ports
- 8-Bit Serial-In, Parallel-Out Shift Off
- Supports Live Insertion, Partial Power-Down Mode, and Back-Drive Protection
- Shift Register Has Direct Clear
- Latch-Up Performance Exceeds 250 mA Per JESD 17
- ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model
- 200-V Machine Model
- 1000-V Charged-Device Model
