SN74LVC125ADR
1.65V~3.6V 1 4 2.5ns@3.3V,50pF SOIC-14 Buffers, Drivers, Receivers, Transceivers RoHS
SOIC-14ROHS3 CompliantActive

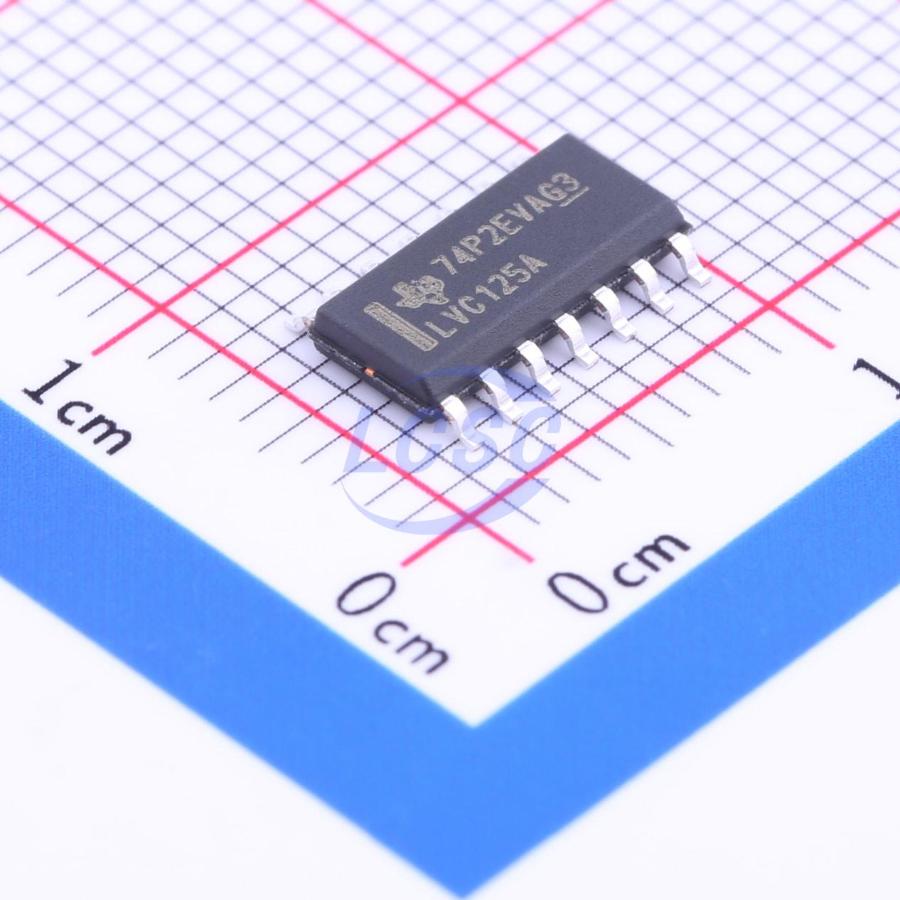

Quadruple Bus Buffer Gate with 3-State Outputs
- Manufacturer
- TI
- Manufacturer part #
- SN74LVC125ADR
- Store part #
- C7661
- Package / case
- SOIC-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,713 in stock
#C7661
Stock & price checked 39 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹55.29 | ₹55.29 |
| 10+ | ₹44.70 | ₹447.00 |
| 30+ | ₹39.53 | ₹1,185.90 |
| 100+ | ₹34.99 | ₹3,499.00 |
| 500+ | ₹33.70 | ₹16,850.00 |
| 1,000+ | ₹32.84 | ₹32,840.00 |
1 × ₹55.29
₹55.29
excl. GST
₹65.24 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74LVC125ADR
₹55.29 for 1 + GST
Specifications
- Voltage - Supply
- 1.65V~3.6V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 40uA
- Function
- Output enable;Level shifting
- Current - Output High(IOH)
- 24mA
- Series
- 74LVC
- Current - Output Low(IOL)
- 24mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 4
- Propagation Delay
- 2.5ns@3.3V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.264 g
Overview
This quadruple bus buffer gate is designed for 1.65-V to 3.6-V VCC operation. The SN74LVC125A features independent line drivers with 3-state outputs. Each output is disabled when the associated output-enable (OE) input is high. To ensure the high-impedance state during power up or power down, OE should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver. Inputs can be driven from either 3.3-V or 5-V devices. This feature allows the use of this device as a translator in a mixed 3.3-V/5-V system environment.
Applications
- Bus buffer driving
- Level shifting for mixed-voltage systems
Key features
- Operates From 1.65 V to 3.6 V
- Specified From -40℃ to 85℃ and -40℃ to 125℃
- Inputs Accept Voltages to 5.5 V
- Max tpd of 4.8 ns at 3.3 V
- Typical VOLP (Output Ground Bounce) < 0.8 V at VCC = 3.3 V, TA = 25℃
- Typical VOHV (Output VOH Undershoot) >2 V at VCC = 3.3 V, TA = 25℃
- Latch-Up Performance Exceeds 250 mA Per JESD 17
- ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)
