TIDatasheet (PDF)

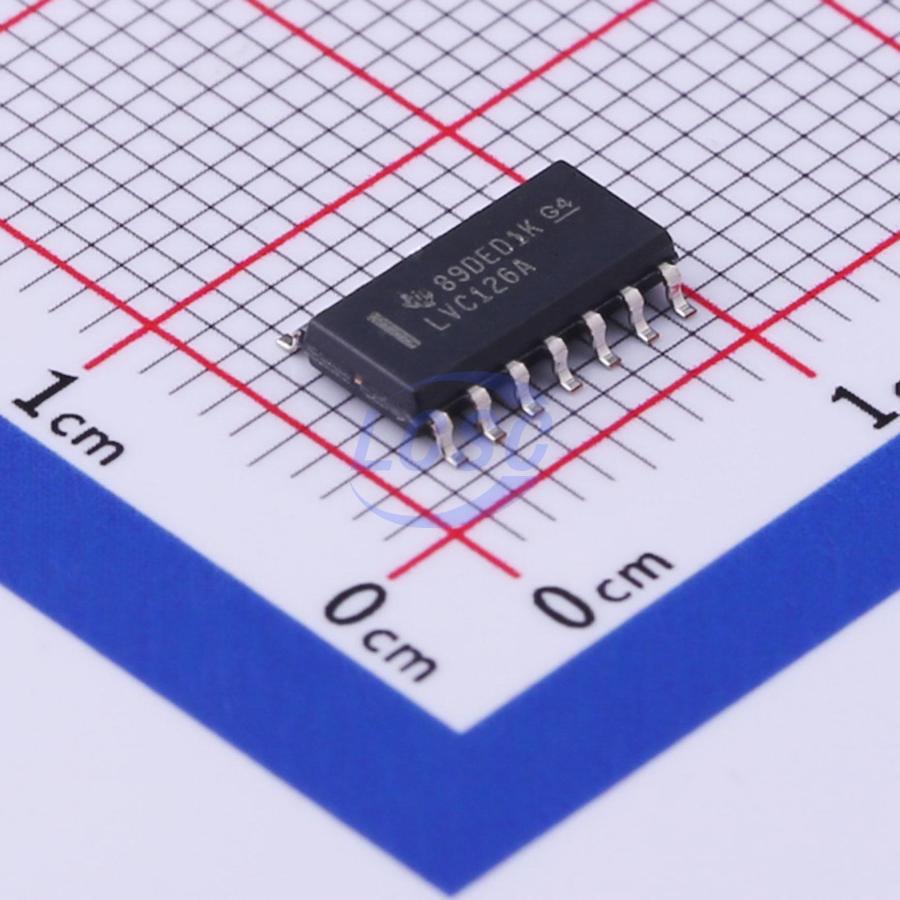

SN74LVC126ADR
1.65V~3.6V 1 4 2.5ns@3.3V,50pF SOIC-14 Buffers, Drivers, Receivers, Transceivers RoHS
SOIC-14ROHS3 CompliantActive
Quadruple Bus Buffer Gate With 3-State Outputs
- Manufacturer
- TI
- Manufacturer part #
- SN74LVC126ADR
- Store part #
- C485076
- Package / case
- SOIC-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,947 in stock
#C485076
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹61.72 | ₹61.72 |
| 10+ | ₹48.46 | ₹484.60 |
| 30+ | ₹42.60 | ₹1,278.00 |
| 100+ | ₹35.43 | ₹3,543.00 |
| 500+ | ₹32.39 | ₹16,195.00 |
| 1,000+ | ₹30.43 | ₹30,430.00 |
1 × ₹61.72
₹61.72
excl. GST
₹72.83 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74LVC126ADR
₹61.72 for 1 + GST
Specifications
- Voltage - Supply
- 1.65V~3.6V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 40uA
- Function
- Output enable;Level shifting
- Current - Output High(IOH)
- 24mA
- Series
- 74LVC
- Current - Output Low(IOL)
- 24mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 4
- Propagation Delay
- 2.5ns@3.3V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.34 g
Overview
The SN74LVC126A device is a quadruple bus buffer gate designed for 1.65-V to 3.6-V VCC operation. The SN74LVC126A device features independent line drivers with 3-state outputs. Each output is disabled when the associated output-enable (OE) input is low. To ensure the high-impedance state during power up or power down, OE must be tied to GND through a pulldown resistor; the minimum value of the resistor is determined by the current-sourcing capability of the driver. Inputs can be driven from either 3.3-V or 5-V devices. This feature allows the use of this device as a translator in a mixed 3.3-V and 5-V system environment.
Applications
- AV Receivers
- Audio Docks: Portable
- Blu-ray Players and Home Theaters
- MP3 Players or Recorders
- Personal Digital Assistants (PDAs)
- Power: Telecom, Server, and AC-DC Supplies (Single-Controller, Analog, and Digital)
- Solid State Drives (SSDs): Client and Enterprise
- TVs: LCD, Digital, and High-Definition (HDTV)
- Tablets: Enterprise
- Video Analytics: Server
- Wireless Headsets, Keyboards, and Mice
Key features
- Operates From 1.65 V to 3.6 V
- Specified From -40℃ to +125℃
- Inputs Accept Voltages up to 5.5 V
- Maximum tpd of 4.7 ns at 3.3 V
- Typical VOLP (Output Ground Bounce), < 0.8 V at VCC = 3.3 V, TA = 25℃
- Typical VOHV (Output VOH Undershoot), > 2 V at VCC = 3.3 V, TA = 25℃
- Latch-Up Performance Exceeds 250 mA Per JESD 17
