UMW

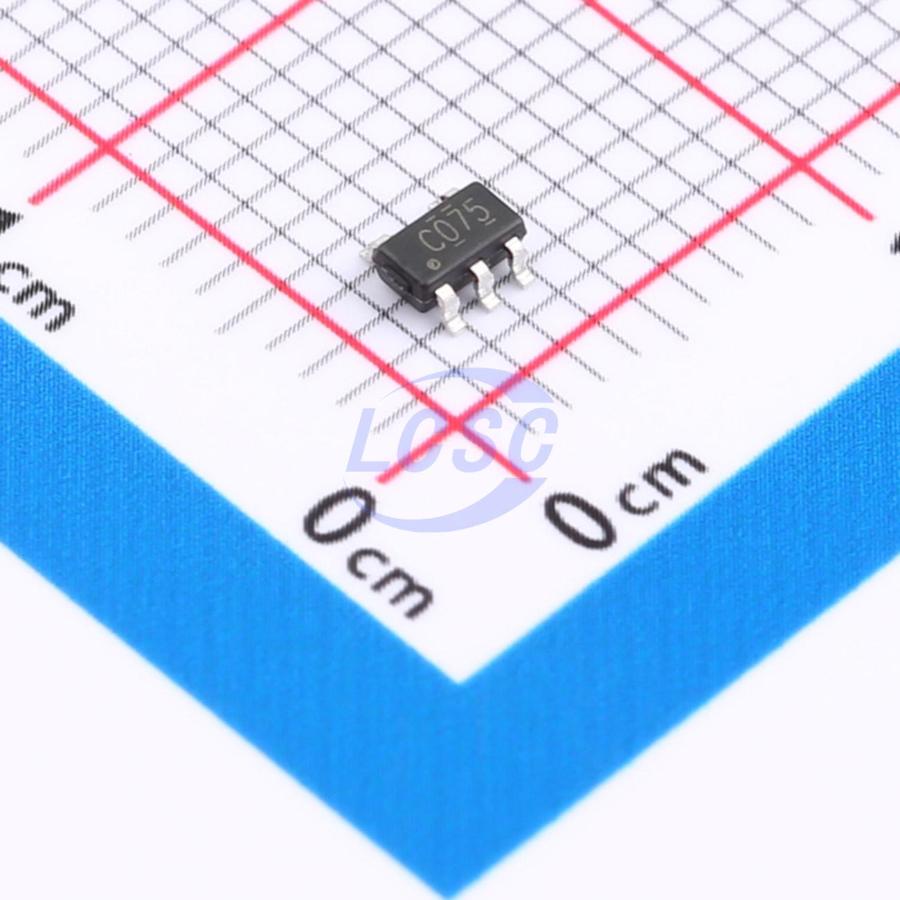

SN74LVC1G07DBVR(UMW)

1.65V~5.5V 1 1 3.9ns@5V,15pF SOT-23-5 Buffers, Drivers, Receivers, Transceivers RoHS

SOT-23-5ROHS CompliantActive

Single-channel non-inverting buffer with open-drain output

Manufacturer: UMW
Manufacturer part #: SN74LVC1G07DBVR(UMW)
Store part #: C7394020
Package / case: SOT-23-5
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

9,300 in stock

#C7394020

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
10+	₹5.94	₹59.40
100+	₹4.56	₹456.00
300+	₹3.88	₹1,164.00
3,000+	₹3.36	₹10,080.00
6,000+	₹2.95	₹17,700.00
9,000+	₹2.75	₹24,750.00

Quantity (min 10, multiples of 10)

10 × ₹5.94

₹59.40

excl. GST

₹70.09 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SN74LVC1G07DBVR(UMW)

₹59.40 for 10 + GST

Specifications

Series: 74LVC
Voltage - Supply: 1.65V~5.5V
Output Type: Open-drain
Current - Output Low(IOL): 24mA
Number of Bits per Element: 1
Channel Type: Unidirectional
Operating Temperature: -40℃~+85℃
Number of Elements: 1
Quiescent Supply Current: 10uA
Propagation Delay: 3.9ns@5V,15pF

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.039 g

Overview

This device is a high-performance single non-inverting buffer with open-drain output, operating over a supply voltage range of 1.65V to 5.5V. The output stage is overvoltage-tolerant, enabling the device to interface between 5.0V circuits and any voltage circuit between 0V and +7.0V.

Applications

Consumer Electronics
Industrial Control
Automotive Electronics
Medical Devices
Communications Equipment

Key features

Miniature SC70-5, SOT23-5, and DFN6-1.0mm×1.5mm packages
Designed for 1.65V to 5.5V VCC operation
24mA output sink current capability with pull-up voltage from 0V to 7.0V
Near-zero quiescent supply current for significantly reduced system power requirements
Lead-free and RoHS compliant
