XBLWDatasheet (PDF)

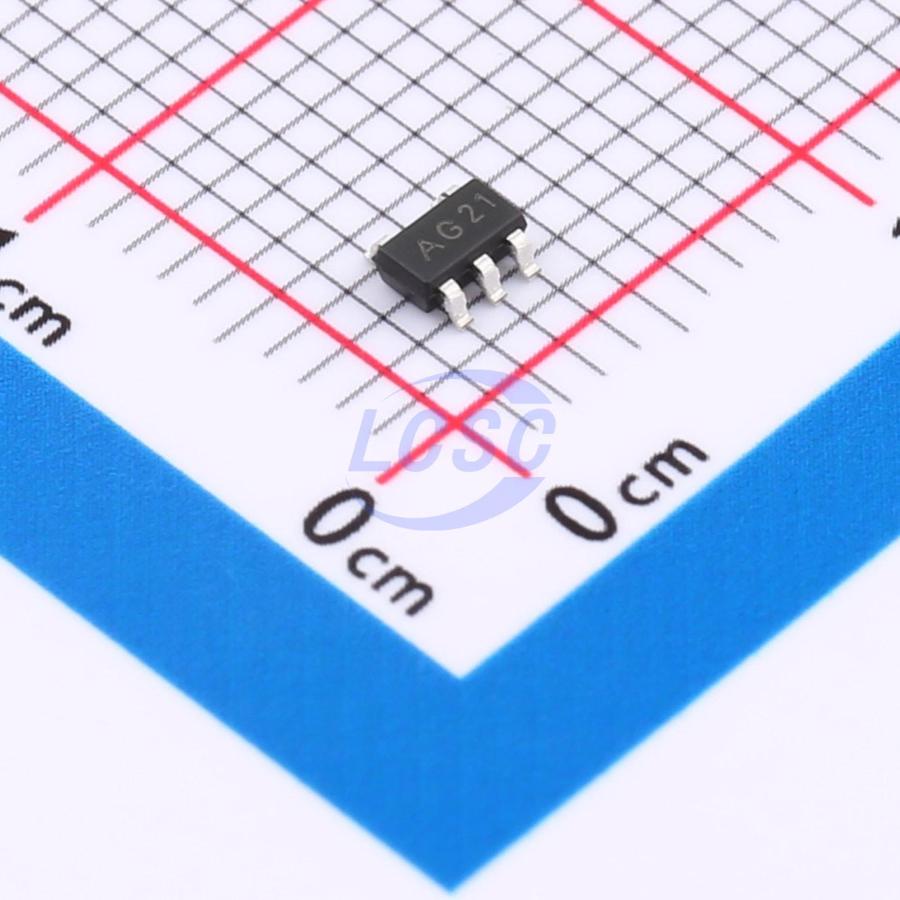

SN74LVC1G126T235(XBLW)
Schmitt trigger 1.65V~5.5V 1 1 5.1ns@5.5V,50pF SOT-23-5 Buffers, Drivers, Receivers, Transceivers RoHS
SOT-23-5ROHS CompliantActive
Single Bus Buffer Gate With 3-State Output
- Manufacturer
- XBLW
- Manufacturer part #
- SN74LVC1G126T235(XBLW)
- Store part #
- C41408443
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,300 in stock
#C41408443
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.44 | ₹64.40 |
| 100+ | ₹5.09 | ₹509.00 |
| 300+ | ₹4.42 | ₹1,326.00 |
| 3,000+ | ₹3.92 | ₹11,760.00 |
| 6,000+ | ₹3.51 | ₹21,060.00 |
| 9,000+ | ₹3.31 | ₹29,790.00 |
10 × ₹6.44
₹64.40
excl. GST
₹75.99 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LVC1G126T235(XBLW)
₹64.40 for 10 + GST
Specifications
- Input type
- Schmitt trigger
- Voltage - Supply
- 1.65V~5.5V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+105℃
- Quiescent Supply Current
- 4uA
- Function
- Power-off isolation;Output enable;Level shifting
- Current - Output High(IOH)
- 32mA
- Series
- 74LVC
- Current - Output Low(IOL)
- 32mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Propagation Delay
- 5.1ns@5.5V,50pF
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.056 g
Overview
74LVC1G126 is a single buffer/line driver with 3-state output. Inputs can be driven from either 3.3 V or 5 V devices. This feature allows the use of these devices as translators in mixed 3.3 V and 5 V environments. Schmitt-trigger action at all inputs makes the circuit tolerant of slower input rise and fall times. This device is fully specified for partial power down applications using I OFF. The I OFF circuitry disables the output, preventing the potentially damaging backflow current through the device when it is powered down.
Applications
- SSDs: Internal or External
- Power Line Communication Modems
- Motor Controls: High-Voltage
- High-Speed Data Acquisition and Generation
- Cable Modem Termination Systems
- Video Communication Systems
- Video Broadcasting: IP-Based Multi-Format Transcoders
- Video Broadcasting and Infrastructure: Scalable Platforms
Key features
- ±24 mA output drive (VCC = 3.0V)
- CMOS low power consumption
- Direct interface with TTL levels
- Latch-up performance exceeds 250 mA
- Overvoltage tolerant inputs to 5.5V
- Wide supply voltage range from 1.65V to 5.5V
- Specked from -40℃ to +105℃
- Packaging information: SOT-23-5/SOT-353
