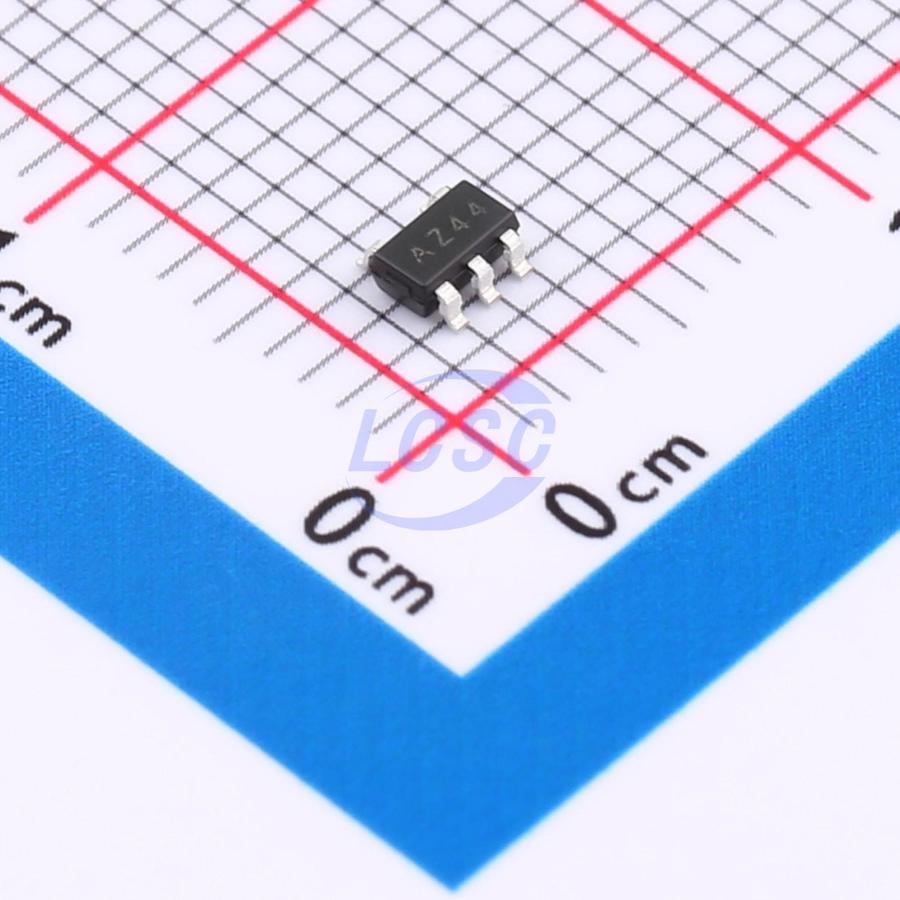

SN74LVC1G34T235(XBLW)
Schmitt trigger 1.65V~5.5V 1 1 8.5ns@3.3V,50pF SOT-23-5 Buffers, Drivers, Receivers, Transceivers RoHS
SOT-23-5ROHS CompliantActive
Single Buffer
- Manufacturer
- XBLW
- Manufacturer part #
- SN74LVC1G34T235(XBLW)
- Store part #
- C41408439
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,630 in stock
#C41408439
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.18 | ₹61.80 |
| 100+ | ₹4.88 | ₹488.00 |
| 300+ | ₹4.23 | ₹1,269.00 |
| 3,000+ | ₹3.76 | ₹11,280.00 |
| 6,000+ | ₹3.36 | ₹20,160.00 |
| 9,000+ | ₹3.18 | ₹28,620.00 |
10 × ₹6.18
₹61.80
excl. GST
₹72.92 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LVC1G34T235(XBLW)
₹61.80 for 10 + GST
Specifications
- Function
- Level shifting
- Current - Output High(IOH)
- 24mA
- Input type
- Schmitt trigger
- Series
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Current - Output Low(IOL)
- 24mA
- Output Type
- Push-pull
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Operating Temperature
- -40℃~+125℃
- Number of Elements
- 1
- Quiescent Supply Current
- 4uA
- Propagation Delay
- 8.5ns@3.3V,50pF
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.055 g
Overview
The SN74LVC1G34 is a single buffer. Inputs can be driven from either 3.3 V or 5 V devices. Thisfeature allows the use of these devices as translators in mixed 3.3 V and 5 V environments. Schmitt-trigger action at all inputs makes the circuit tolerant of slower input rise and fall times.
Applications
- Audio Dock: Portable AV Receiver
- Blu-ray Player and Home Theater
- DVD Recorder and Player
- Embedded PC
- MP3 Player/Recorder (Portable Audio)
- Personal Digital Assistant (PDA)
- Solid State Drive (SSD): Client and Enterprise
- Tablet: Enterprise
- TV: LCD/Digital and High-Definition (HDTV)
- Video Analytics: Server
- Wireless Headset, Keyboard, and Mouse
- Power: Telecom/Server
- AC/DC Supply: Single
- Controller: Analog and Digital
Key features
- ±24 mA output drive (VCC = 3.0 V)
- 5V tolerant inputs for interfacing with 5V logic
- CMOS low power consumption
- Specified from -40°C to +125°C
- Wide supply voltage range from 1.65V to 5.5V
- Packaging information: SOT-23-5/SOT-353
