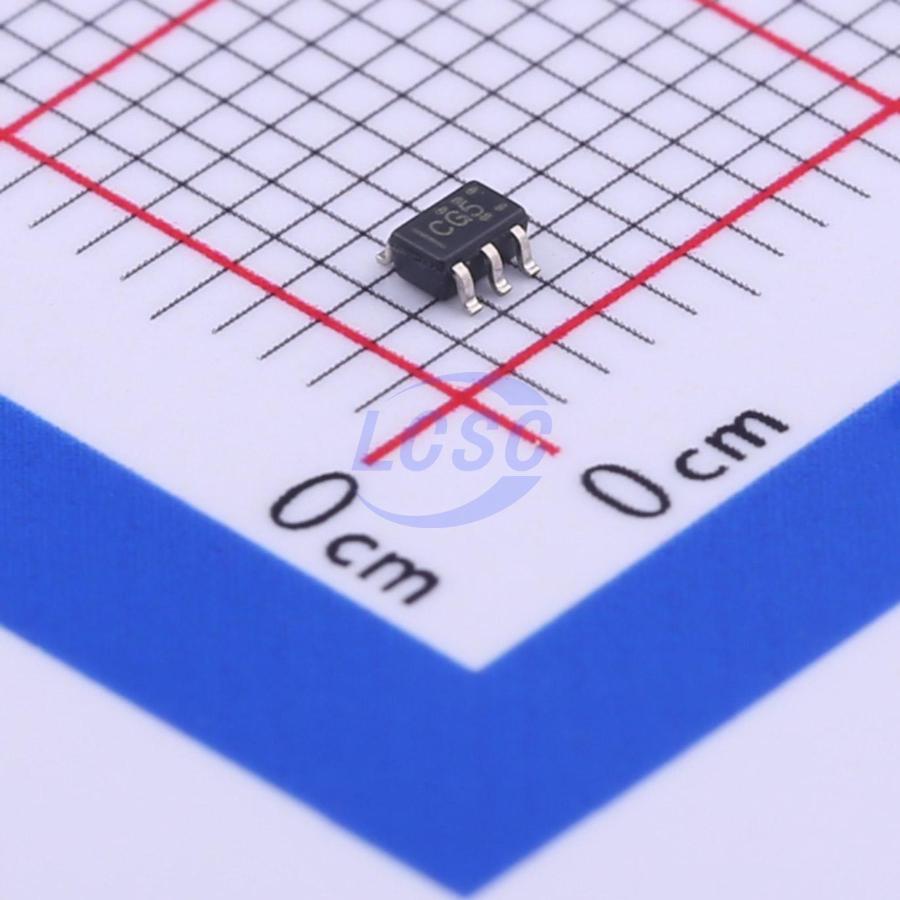

SN74LVC1G32DCKR

This single 2- input positive- OR gate is designed for 1.65- V to 5.5- V VCC operation. The SN74LVC1G32 device performs the Boolean function Y = A + B or Y = A(overline) · B(overline) in positive logic. The CMOS device has high output drive while maintaining low static power dissipation over a broad VCC operating range. The SN74LVC1G32 device is available in a variety of packages, including the ultra- small DPW package with a body size of 0.8 x 0.8 mm.

Applications

• AV Receiver
• Blu- ray Player and Home Theater
• Digital Picture Frame (DPF)
• Embedded PC
• IP Phone: Wireless
• High- Speed Data Acquisition and Generation
• Motor Control: High- Voltage
• Optical Networking: Video Over Fiber and EPON
• Personal Navigation Device (GPS)
• Portable Media Player
• Private Branch Exchange (PBX)
• Server PSU
• SSD: Internal and External
• TV: LCD/Digital and High- Definition (HDTV)
• Telecom Shelter: Power Distribution Unit (PDU), Power Monitoring Unit (PMU), Wireless Battery Monitoring, Remote Electrical Tilt Unit (RET), Remote Radio Unit (RRU), Tower Mounted Amplifier (TMA)
• Video Conferencing: IP- Based HD
• Vector Signal Analyzer and Generator
• WiMAX and Wireless Infrastructure Equipment
• Wireless Headset, Keyboard, Mouse, and Repeater

Key features

• Available in the Ultra- Small 0.64 mm² Package (DPW) with 0.5- mm Pitch
• Supports 5 - V VCC Operation
• Inputs Accept Voltages to 5.5- V
• Supports Down Translation to VCC Max tpd of 3.6 ns at 3.3 - V
• Low Power Consumption, 10 - μA Max ICC
• ±24 - mA Output Drive at 3.3- V
• Ioff Supports Live Insertion, Partial- Power- Down Mode, and Back- Drive Protection
• Latch- Up Performance Exceeds 100 mA Per JESD 78, Class II
• ESD Protection Exceeds JESD 22
• 2000- V Human- Body Model (A114- A)
• 200- V Machine Model (A115- A)
• 1000- V Charged- Device Model (C101)
