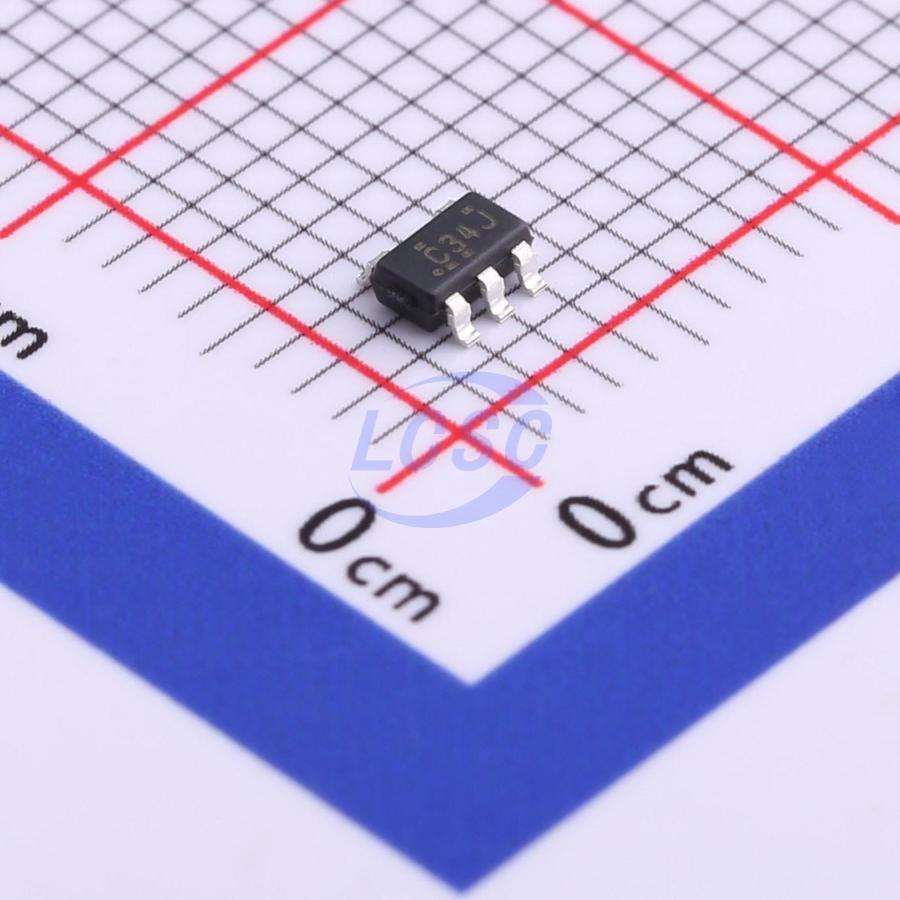

SN74LVC1G34DBVR
1.65V~5.5V 1 1 3.5ns@3.3V,15pF SOT-23-5 Buffers, Drivers, Receivers, Transceivers RoHS
SOT-23-5ROHS3 CompliantActive
Single Buffer Gate
- Manufacturer
- TI
- Manufacturer part #
- SN74LVC1G34DBVR
- Store part #
- C840096
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
77,670 in stock
#C840096
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.72 | ₹67.20 |
| 100+ | ₹5.37 | ₹537.00 |
| 300+ | ₹4.71 | ₹1,413.00 |
| 3,000+ | ₹4.21 | ₹12,630.00 |
| 6,000+ | ₹3.80 | ₹22,800.00 |
| 9,000+ | ₹3.60 | ₹32,400.00 |
10 × ₹6.72
₹67.20
excl. GST
₹79.30 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LVC1G34DBVR
₹67.20 for 10 + GST
Specifications
- Voltage - Supply
- 1.65V~5.5V
- Output Type
- Push-pull
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 10uA
- Function
- Power-off isolation;Level shifting
- Current - Output High(IOH)
- 32mA
- Series
- 74LVC
- Current - Output Low(IOL)
- 32mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Propagation Delay
- 3.5ns@3.3V,15pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.04 g
Overview
This single buffer gate is designed for 1.65-V to 5.5-V VCC operation. The SN74LVC1G34 device performs the Boolean function Y = A in positive logic. The CMOS device has high output drive while maintaining low static power dissipation over a broad VCC Operating range. The SN74LVC1G34 is available in a variety of packages, including the ultra-small DPW package with a body size of 0.8 mm × 0.8 mm.
Applications
- AV Receiver Audio Dock: Portable
- Blu-ray Player and Home Theater
- DVD Recorder and Player
- Embedded PC
- MP3 Player/Recorder (Portable Audio)
- Personal Digital Assistant (PDA)
- Power: Telecom/Server
- AC/DC Supply: Single
- Controller: Analog and Digital
- Solid State Drive (SSD): Client and Enterprise
- TV: LCD/Digital and High-Definition (HDTV)
- Tablet: Enterprise
- Video Analytics: Server
- Wireless Headset, Keyboard, and Mouse
Key features
- Available in the Ultra Small 0.64–mm² Package (DPW) with 0.5-mm Pitch
- Supports 5-V VCC Operation
- Inputs Accept Voltages to 5.5 V
- Provides Down Translation to VCC
- Max tpd of 3.5 ns at 3.3 V
- Low Power Consumption, 1-μA Max ICC
- ±24-mA Output Drive at 3.3 V
- Supports Live Insertion, Partial Power Down Mode, and Back Drive Protection
- Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
- ESD Protection Exceeds JESD 22 2000-V Human-Body Model (A114-A) 200-V Machine Model (A115-A) 1000-V Charged-Device Model (C101)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74LVC1G34DB(LX)#C22469929lingxingic · SOT-23-5 | lingxingic | SOT-23-5 | 2,180 | ₹5.98 · 2,180 in stock | View |
 | SN74LVC1G34T235(XBLW)#C41408439XBLW · SOT-23-5 | XBLW | SOT-23-5 | 2,630 | ₹6.18 · 2,630 in stock | View |
| AiP74LVC1G34GB235.TR#C52121050Wuxi I-core Elec · SOT23-5 | Wuxi I-core Elec | SOT23-5 | 2,150 | ₹6.73 · 2,150 in stock | View | |
