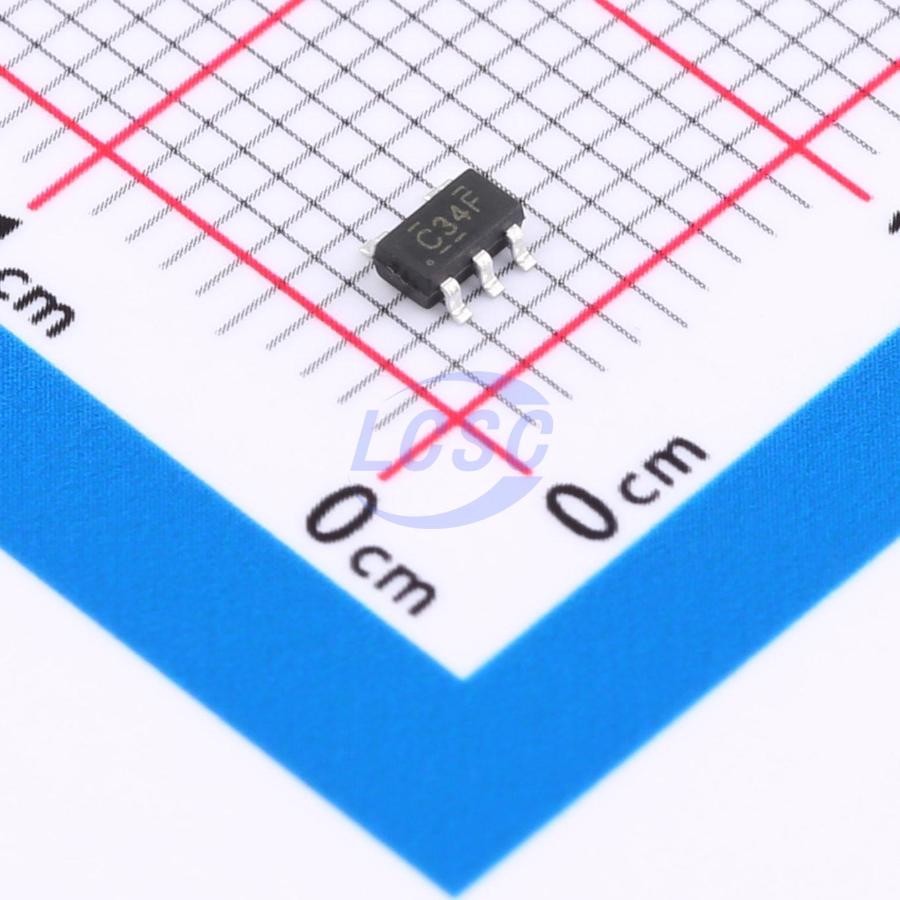

SN74LVC1G34DBVR-TP
1.65V~5.5V 1 1 1ns@3.3V,15pF SOT-23-5 Buffers, Drivers, Receivers, Transceivers
SOT-23-5RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SN74LVC1G34DBVR-TP
- Store part #
- C48586691
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,490 in stock
#C48586691
Stock & price checked 19 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.01 | ₹50.10 |
| 100+ | ₹3.94 | ₹394.00 |
| 300+ | ₹3.41 | ₹1,023.00 |
| 3,000+ | ₹3.02 | ₹9,060.00 |
| 6,000+ | ₹2.69 | ₹16,140.00 |
| 9,000+ | ₹2.53 | ₹22,770.00 |
10 × ₹5.01
₹50.10
excl. GST
₹59.12 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LVC1G34DBVR-TP
₹50.10 for 10 + GST
Specifications
- Function
- Power-off isolation
- Current - Output High(IOH)
- 32mA
- Series
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Current - Output Low(IOL)
- 32mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Operating Temperature
- -40℃~+125℃
- Number of Elements
- 1
- Quiescent Supply Current
- 10uA
- Propagation Delay
- 1ns@3.3V,15pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.036 g
Overview
This device is a single buffer implementing the Y = A function, with a built-in power-off protection circuit to prevent damage during power loss.
Applications
- Audio/video receivers
- Embedded PCs
- Blu-ray players and home theater systems
- Personal digital assistants
Key features
- Operating voltage range 1.65V ~ 5.5V
- Input tolerant up to 5.5V
- High noise immunity
- Low power consumption
- ESD protection exceeding JESD 22 standard
- Human Body Model 2000V
- Charged Device Model 1000V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74LVC1G34W5-TP#C52098140TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,480 | ₹5.85 · 2,480 in stock | View |
 | TP74LVC1G126S5#C42460145TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,865 | ₹10.97 · 2,865 in stock | View |
 | SN74LVC1G126DBVR-TP#C46472327TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 15,270 | ₹4.43 · 15,270 in stock | View |
 | 74LVC1G126GV-TP#C46472328TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,430 | ₹5.46 · 2,430 in stock | View |
 | 74LVC1G34GV-TP#C48586680TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,640 | ₹5.01 · 2,640 in stock | View |
