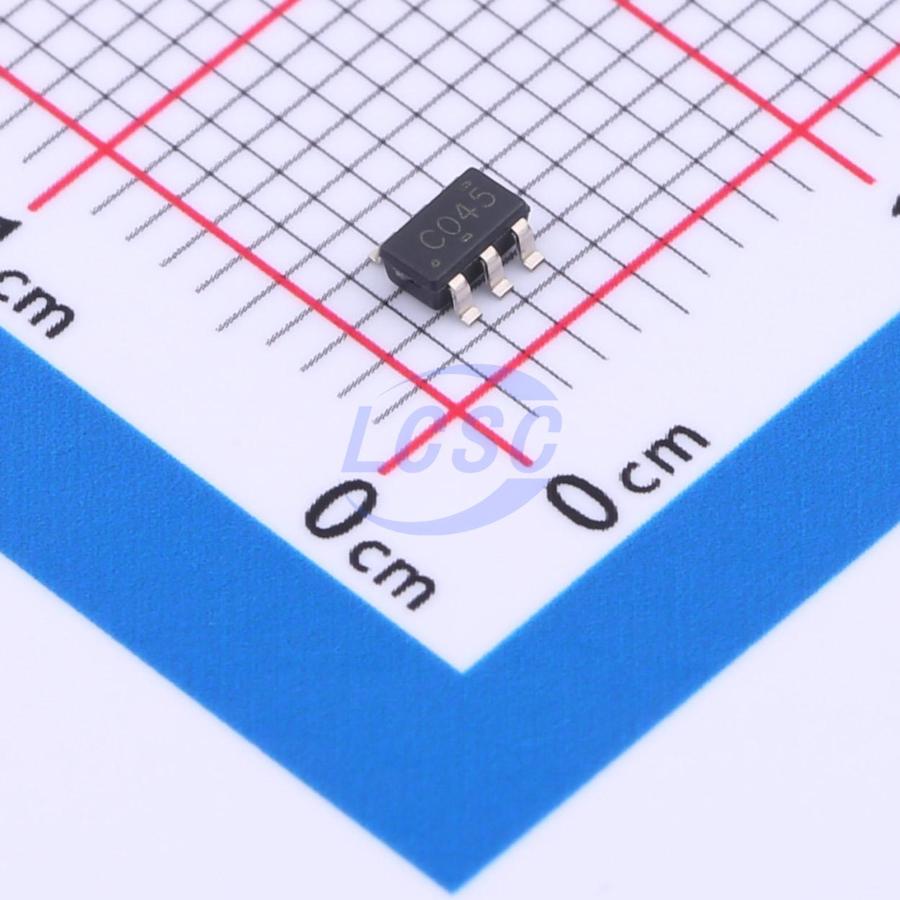

SN74LVC2G04DBVR
1.65V~5.5V 3.2ns@5V,50pF 10uA 2 SOT-23-6 Gates and Inverters RoHS
SOT-23-6ROHS3 CompliantActive
DUAL INVERTER GATE
- Manufacturer
- TI
- Manufacturer part #
- SN74LVC2G04DBVR
- Store part #
- C10428
- Package / case
- SOT-23-6
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
60,755 in stock
#C10428
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹49.89 | ₹249.45 |
| 50+ | ₹40.21 | ₹2,010.50 |
| 150+ | ₹36.06 | ₹5,409.00 |
| 500+ | ₹30.89 | ₹15,445.00 |
| 3,000+ | ₹28.58 | ₹85,740.00 |
| 6,000+ | ₹27.19 | ₹1,63,140.00 |
5 × ₹49.89
₹249.45
excl. GST
₹294.35 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LVC2G04DBVR
₹249.45 for 5 + GST
Specifications
- Logic Family
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Output Logic Level - Low
- 550mV
- Propagation Delay
- 3.2ns@5V,50pF
- Features
- Power shutdown protection
- Input Logic Level - Low
- 700mV~800mV
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - High
- 1.7V~2V
- Output Logic Level - High
- 2.4V
- Quiescent Current(Iq)
- 10uA
- Current - Output High(IOH)
- 32mA
- Number of Channels
- 2
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.057 g
Overview
This dual inverter is designed for 1.65-V to 5.5-V VCC operation. The SN74LVC2G04 performs the Boolean function Y = A̅. NanoStar and NanoFree package technology is a major breakthrough in IC packaging concepts, using the die as the package. This device is fully specified for partial-power-down applications using lₒff. The Iₒff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
Key features
- Available in the Texas Instruments NanoStar and NanoFree Packages
- Supports 5-V VCC Operation
- Inputs Accept Voltages to 5.5 V
- Max tpd of 4.1 ns at 3.3 V
- Low Power Consumption, 10-μA Max ICC
- ±24-mA Output Drive at 3.3 V
- Typical VOLP (Output Ground Bounce) < 0.8 V at VCC = 3.3V, TA = 25°C
- Typical VOHV (Output VOH Undershoot) > 2 V at VCC = 3.3V, TA = 25°C
- Ioff Supports Partial-Power-Down Mode Operation
- Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
- ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)
