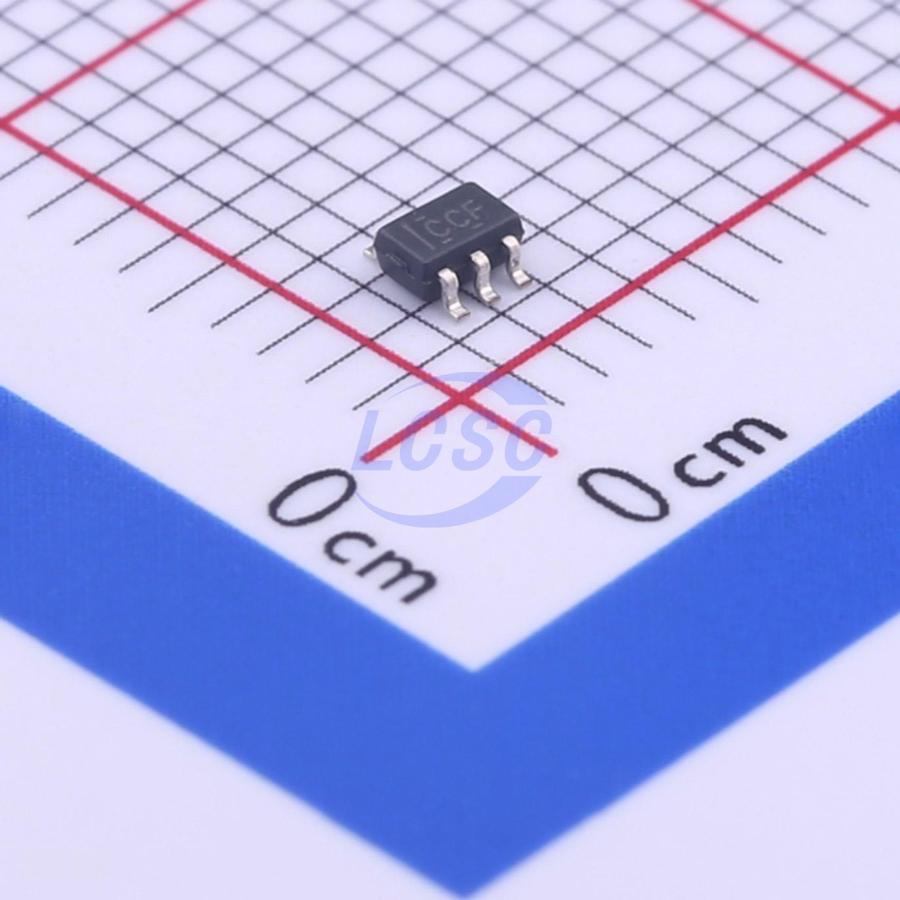

SN74LVC2G04DCKR

- This dual inverter is designed for 1.65-V to 5.5–V CC operation. The SN74LVC2G04 device performs the Boolean function Y = A̅. - NanoFree package technology is a major breakthrough in IC packaging concepts, using the die as the package. - This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

Applications

• IP Phones: Wired and Wireless
• Optical Modules
• Optical Networking: EPON and Video Over Fiber
• Point-to-Point Microwave Backhaul
• Power: Telecom DC/DC Module: Analog and Digital
• Private Branch Exchanges (PBX)
• TETRA Base Exchanges
• Telecom Base Band Units
• Telecom Shelters: Power Distribution Units (PDU), Power Monitoring Units (PMU), Wireless Battery Monitoring, Remote Electrical Tilt Units (RET), Remote Radio Units (RRU), Tower Mounted Amplifiers (TMA)
• Vector Signal Analyzers and Generators
• Video Converencing: IP-Based HD
• WiMAX and Wireless Infrastructure Equipment
• Wireless Communications Testers and Wireless Repeaters
• xDSL Modems and DSLAM

Key features

• Available in the NanoFree Package
• Supports 5-V VCC Operation
• Inputs Accept Voltages to 5.5 V
• Max tpd of 4.1 ns at 3.3 V
• Low Power Consumption, 10-μA Max ICC
• ±24-mA Output Drive at 3.3 V
• Typical VOLP (Output Ground Bounce) < 0.8 V at VCC = 3.3 V, TA = 25°C
• Typical VOHV (Output VOH Undershoot) > 2 V at VCC = 3.3 V, TA = 25°C
• Supports Partial-Power-Down Mode Operation
• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
• ESD Protection Exceeds JESD 22:
• 2000-V Human-Body Model (A114-A)
• 200-V Machine Model (A115-A)
• 1000-V Charged-Device Model (C101)
