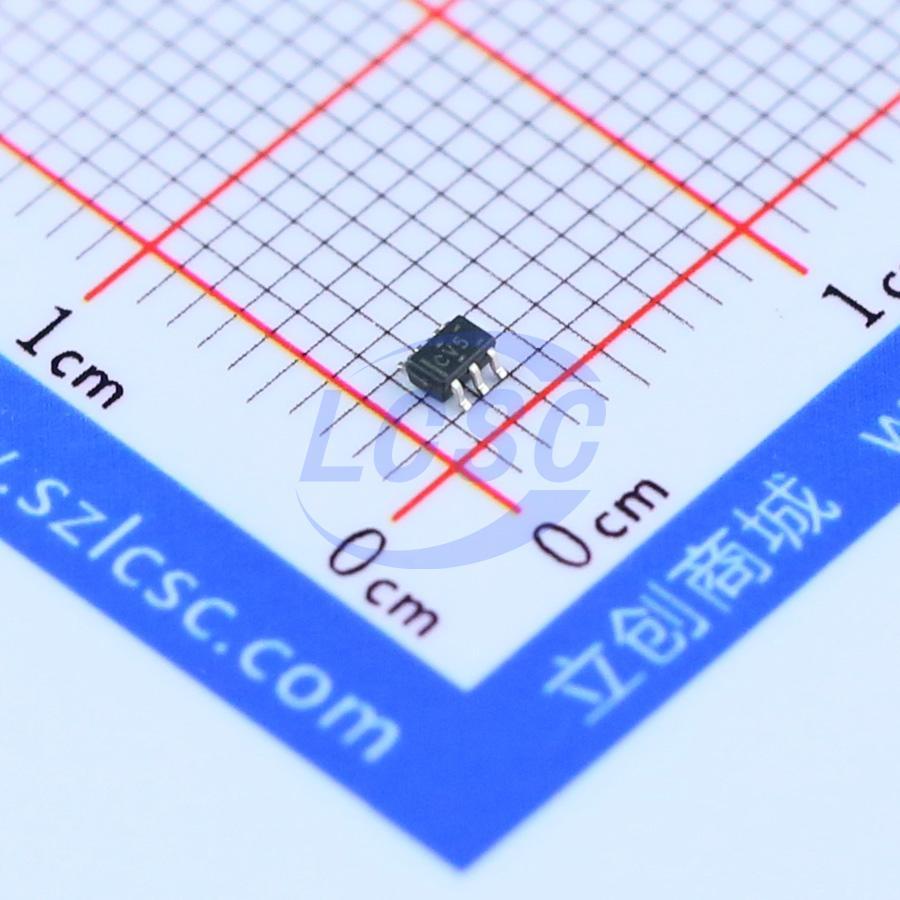

SN74LVC2G07DCKR

This dual buffer/driver is designed for 1.65 - V to 5.5 - V VCC operation. The output of the SN74LVC2G07 is open drain and can be connected to other open - drain outputs to implement active - low wired - OR or active - high wired - AND functions. The maximum sink current is 32mA. NanoFree package technology is a major breakthrough in IC packaging concepts, using the die as the package. This device is fully specified for partial - power - down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

Applications

• Logic level translation applications
• Applications requiring wired-OR or wired-AND logic functions
• Applications requiring hot insertion or partial power-down operating modes

Key features

• Available in the Texas Instruments NanoFree Package
• Supports 5 - V Vcc Operation
• Inputs and Open - Drain Outputs Accept Voltages up to 5.5V
• Max tp of 3.7 ns at 3.3V
• Low Power Consumption, 10 - A Max Icc
• ±24 - mA Output Drive at 3.3V
• Typical VOLP (Output Ground Bounce) < 0.8V at VCC = 3.3V, TA = 25℃
• Typical VOHV (Output VOH Undershoot) >2V at VCC = 3.3V, TA = 25℃
• Ioff Supports Live Insertion, Partial Power Down Mode, and Back Drive Protection
• Support Translation - Up/Down
• Latch - Up Performance Exceeds 100 mA Per JESD 78, Class II
• ESD Protection Exceeds JESD 22: 2000 - V Human - Body Model (A114 - A), 200 - V Machine Model (A115 - A), 1000 - V Charged - Device Model (C101)
