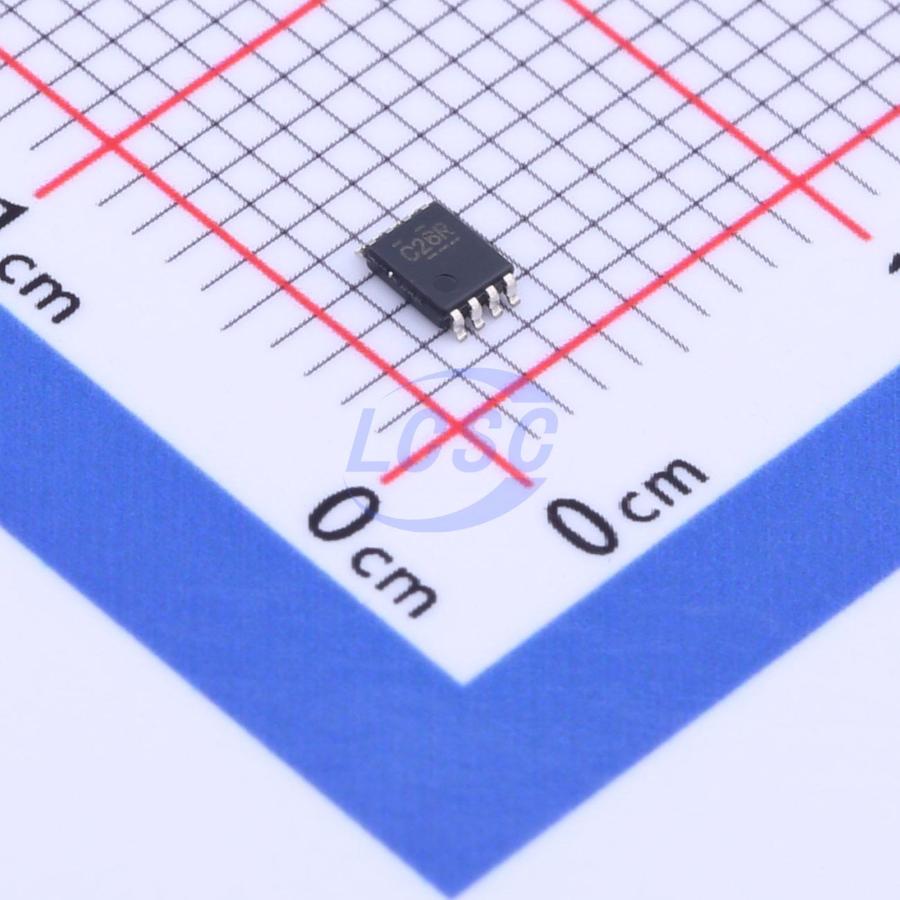

SN74LVC2G126DCUR
Buffer Tri-State Output VSSOP-8
VSSOP-8ROHS3 CompliantActive
Dual bus buffer gates with three-state outputs
- Manufacturer
- TI
- Manufacturer part #
- SN74LVC2G126DCUR
- Store part #
- C2652104
- Package / case
- VSSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
17,170 in stock
#C2652104
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.16 | ₹145.80 |
| 50+ | ₹23.06 | ₹1,153.00 |
| 150+ | ₹20.44 | ₹3,066.00 |
| 500+ | ₹17.17 | ₹8,585.00 |
| 3,000+ | ₹13.88 | ₹41,640.00 |
| 6,000+ | ₹13.01 | ₹78,060.00 |
5 × ₹29.16
₹145.80
excl. GST
₹172.04 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LVC2G126DCUR
₹145.80 for 5 + GST
Specifications
- Voltage - Supply
- 1.65V~5.5V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 10uA
- Function
- Power-off isolation;Output enable;Level shifting
- Current - Output High(IOH)
- 32mA
- Series
- 74LVC
- Current - Output Low(IOL)
- 32mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 2
- Propagation Delay
- 4ns@3.3V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.024 g
Overview
These bus transceivers are designed for 1.65V to 3.6V operating voltage. The SN74LVC2G126 is a dual line driver with three-state outputs. When the output enable input is low, the outputs are disabled.
Applications
- Cable modem termination systems
- High-speed data acquisition and generation
- Motor control
- High-voltage powerline communication modems
- SSD: internal or external
- Video broadcast and infrastructure: scalable platforms
- Video broadcast: IP-based multi-format transcoders
- Video communication systems
Key features
- Available in NanoFree™ package
- Supports 5V VCC operation
- Input voltage up to 5.5V
- tpd maximum 4ns at 3.3V
- Low power, 10μA maximum ICC
- ±24mA output drive at 3.3V
- VOLP (output ground bounce) typical < 0.8V at VCC = 3.3V, TA = 25℃
- VOHV (output VOH undershoot) typical > 2V at VCC = 3.3V, TA = 25℃
- Supports hot insertion, partial power-down mode, and back-drive protection
- Functions as down translator, translating input voltages up to 5.5V down to VCC level
- Latch-up performance exceeds 100mA per JESD 78 Class II
- ESD protection exceeds JESD 22 specifications
- 2000V Human Body Model
- 1000V Charged Device Model
