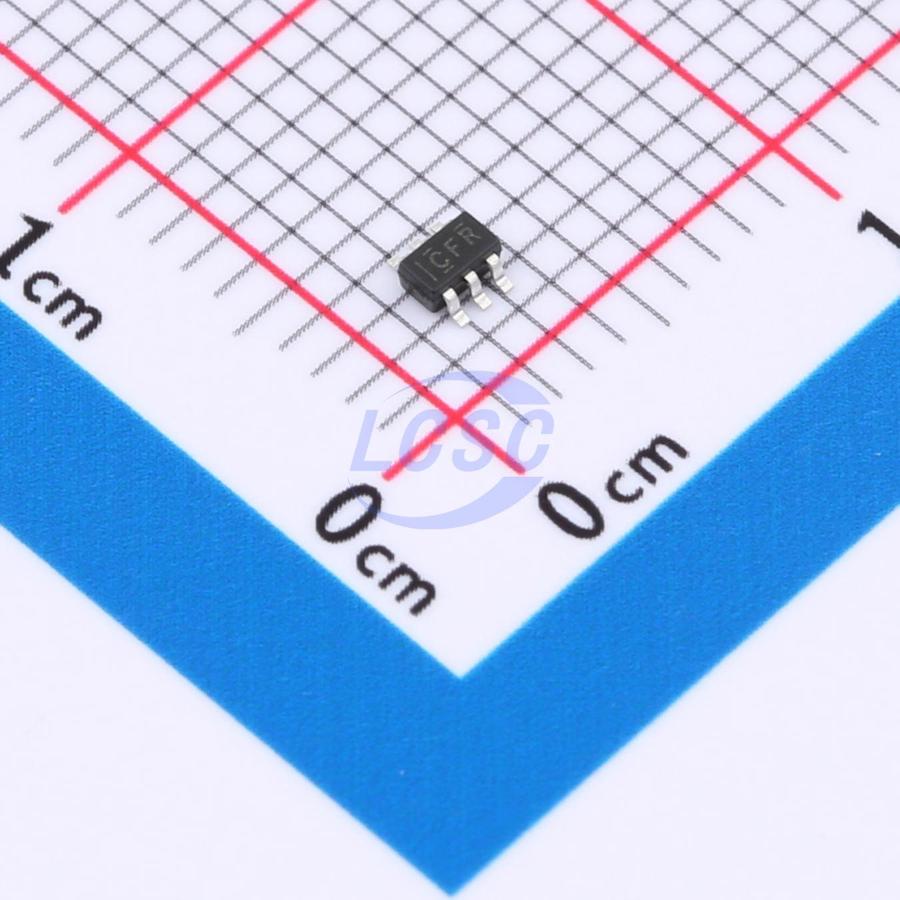

SN74LVC2G14DCKR
Schmitt trigger 1.65V~5.5V 2 2 5ns@5V,50pF SOT-363 Buffers, Drivers, Receivers, Transceivers
SOT-363RoHSActive
Dual Schmitt-Trigger Inverter With 5V Tolerant Input
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SN74LVC2G14DCKR
- Store part #
- C19829677
- Package / case
- SOT-363
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,250 in stock
#C19829677
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.01 | ₹70.10 |
| 100+ | ₹5.50 | ₹550.00 |
| 300+ | ₹4.76 | ₹1,428.00 |
| 3,000+ | ₹4.19 | ₹12,570.00 |
| 6,000+ | ₹3.74 | ₹22,440.00 |
| 9,000+ | ₹3.52 | ₹31,680.00 |
10 × ₹7.01
₹70.10
excl. GST
₹82.72 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LVC2G14DCKR
₹70.10 for 10 + GST
Specifications
- Input type
- Schmitt trigger
- Voltage - Supply
- 1.65V~5.5V
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 10uA
- Function
- Power-off isolation;Level shifting
- Current - Output High(IOH)
- 32mA
- Series
- 74LVC
- Current - Output Low(IOL)
- 32mA
- Number of Bits per Element
- 2
- Channel Type
- Unidirectional
- Number of Elements
- 2
- Propagation Delay
- 5ns@5V,50pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.028 g
Overview
The SN74LVC2G14 is a dual inverter gate and it provides the Boolean function Y = A(overline) in positive logic. This device has power-down protective circuit to prevent the device from destruction when it is powered down.
Applications
- Voltage Level Shifting
- General Purpose Logic
- Power Down Signal Isolation
- Wide array of products such as: PCs, Networking, Notebooks, Netbooks, PDAs Tablet Computers, E-readers Computer Peripherals, Hard Drives, CD/DVD ROM TV, DVD, DVR, Set-Top Box Cell Phones, Personal Navigation / GPS MP3 Players, Cameras, Video Recorders
Key features
- Operation voltage range: 1.65 ~ 5.5V
- 5V Tolerant Input/Output for Interfacing with 5V logic ±24mA Output Drive (VCC = 3.3V)
- CMOS Low-Power Consumption and High Noise Immunity
- SOT23-6 Package Available
- SOT363 Package Available
